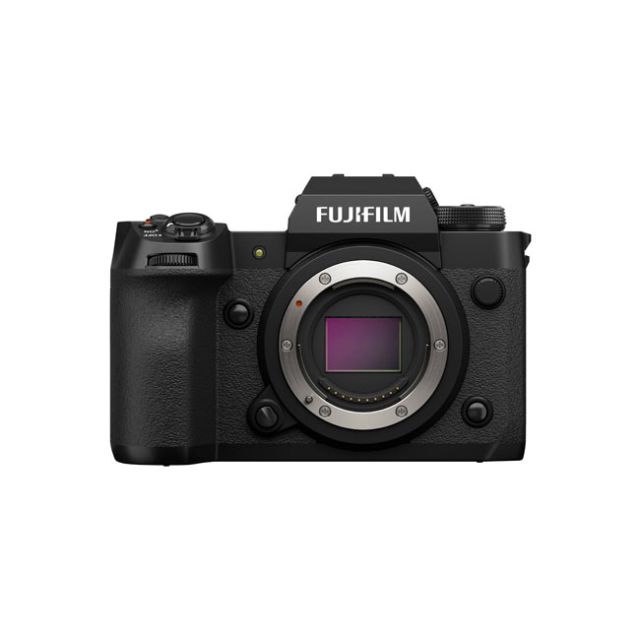

Fujifilm X-H2 Mirrorless Camera (Black)

by Fujifilm MFG# FUJIFILM-16757045
$1,999.95

Fujifilm X-H2 Mirrorless Camera (Black)

  • 40 Megapixel X-Trans CMOS 5 HR BSI Imaging Sensor
  • 15 Frames per second in Mechanical Shutter
  • 8K/30P 10-bit 4:2:2 Apple ProRes, ProResHQ, ProRes LT
  • Up to 7 stops of Internal Body Image Stabilization (IBIS)
  • 160MP pixel shift multi shot
  • 1/180,000 Max Shutter speed in EShutter

Perfect for the next generation of hybrid image makers, X-H2 blends the compact and lightweight versatility of APS-C mirrorless cameras with an unmatched back-side illuminated X-Trans CMOS 5 HR imaging sensor. The result gives image-makers 40-megapixels of resolution that brings life to the details of any image. Add in an optimized pixel layout that promises exceptional detail, unrivaled color accuracy, and impressive video flexibility, these game-changing features are made possible only with X-Processor 5, which delivers lightning-fast performance to help X-H2 deliver 8K/30p video, enhanced autofocus capabilities, and black-out free image bursts at 15fps. Not to mention, its also more efficient than its predecessor, boosting battery performance by 10%.

X-H2 uses its native 8K video resolution to give filmmakers several ways of unlocking the cameras true potential. From being able to increase the focal length of any lens with the cameras 2x digital zoom, when recording up to 4K, to delivering incredible 4K video by down sampling from the cameras higher resolution, X-H2 offers a suite of video functions that make it perfect for every moviemaking occasion. Apple ProRes 10-bit 4:2:2 footage can be recorded internally at up to 8K/30p using a CFexpress Type B card, while 12-bit Apple ProRes or Blackmagic RAW footage can be recorded to compatible external devices* via the full-size HDMI Type A port on the side of the camera. Additionally, when recording video using the F-Log2 color profile, X-H2s dynamic range extends to 13+ stops a one-stop improvement over the previous sensor, enhancing post-production flexibility. X-H2 can also record continuously for up to 160 minutes at 25C (77F), and can be extended to 240 minutes with the optional X-H2 cooling fan. *Atomos Ninja V+ HDR monitor-recorder or Blackmagic Design Video Assist monitor

X-H2 is the first X Series to feature Pixel Shift Multi-Shot, which delivers 160-megapixel images for the ultimate quality when detail really matters. A staple of GFX System cameras, Pixel Shift Multi-Shot records 20 frames, shifting the sensor by 0.5 pixels between each frame. Resulting images are automatically combined into one DNG RAW file, which can be output to a desired file format using suitable RAW processing software. This groundbreaking feature is invaluable for archival recording and other commercial applications where color fidelity and fine detail are paramount. Using Pixel Shift Multi-Shot ensures false colors and moir effects are suppressed to such an extent as to be virtually non-existent.

X-H2 has a feature set designed to support creatives in their pursuit of the ultimate stills or video. Improved in-body image stabilization (IBIS), for example, offers seven stops of compensation and features an enhanced algorithm that improves motion detection. This produces shake-free results in more scenarios than ever before, most notably when panning or following subjects on foot for video. For stills photographers, full-resolution images can be recorded at an incredible 15 frames-per-second when using the mechanical shutter, while those switching to the electronic shutter can work at 20fps in the 1.29x crop factor option. Further high-speed options are provided by the electronic shutters 1/180,000 sec top speed, while photographers seeking optimum quality will welcome the lower minimum ISO 125.

Thanks to its broad range of wired and wireless options for transferring image and video data, X-H2 is a true multimedia creative tool. The camera body supports wireless image transfer through the Fujifilm Remote Camera App and natively delivers webcam resolutions of up to 4K/60p for a high-quality live streaming experience. With the optional FT-XH File Transmitter Grip, however, functionality is expanded even further. The grip adds tethering connections and FTP file transfer through Wi-Fi, Ethernet and smartphone connections, plus the Remote Rec function. This enables up to four camera bodies, FT-XH Wireless File Battery Grip accessories attached, to be connected and controlled via a web browser on a computer, tablet or smartphone.



Specs



Number of Effective Pixels

40.2 million pixels



Image Sensor

23.5mm x 15.6mm (APS-C) X-Trans CMOS 5 HR with primary color filter



Sensor Cleaning System

Ultra Sonic Vibration



Storage Media

SD Card (-2GB) / SDHC Card (-32GB) / SDXC Card (-2TB) / UHS-I / UHS-II / Video Speed Class V90 / CFexpress Type B Card (-2TB)

*Please visit https://fujifilm-x.com/support/compatibility/cameras to check memory card compatibility.



File format (Still)

JPEG-Exif Ver.2.32, HEIF-4:2:2 10bit, RAW-14bit RAW (RAF original format), TIFF-8bit / 16bit RGB (In-camera Raw Conversion Only)



*Exif 2.32 is a digital camera file format that contains a variety of shooting information for optimal printing



Number of Recorded Pixels

L: [4:3]6864x5152 [3:2] 7728x5152 [16:9] 7728x4344 [1:1] 5152x5152 [5:4] 6432x5152

M: [4:3] 4864x3648 [3:2] 5472x3648 [16:9]5472x3080 [1:1] 3648x3648 [5:4] 4560x3648

S: [4:3]3464x2592 [3:2] 3888x2592 [16:9] 3888x2184 [1:1] 2592x2592 [5:4] 3264x2592



Digital Tele-Converter

2.0x

1.4x

OFF



Lens Mount

FUJIFILM X mount



Sensitivity Standard Output

STILL: AUTO1/ AUTO2/ AUTO3/ ISO16012800 (1/3 step)

MOVIE: AUTO/ ISO16012800 (1/3 step)



Sensitivity Extended Output

STILL: ISO64/ ISO80/I SO100/ ISO12/ ISO25600/ ISO51200

MOVIE: ISO25600



Exposure Control

TTL 256-zone metering/ Multi/ Spot/Average/ Center Weighted



Exposure Mode

P (Program AE)/ A (Aperture Priority AE)/ S (Shutter Speed Priority AE)/ M (Manual Exposure)



Exposure Compensation

STILL: -5.0EV+5.0EV (1/3EV step)/ MOVIE: -2.0EV+2.0EV (1/3EV step)



Image Stabilizer Mechanism

Image sensor shift mechanism with 5-axis compensation



Image Stabilizer Compensation Effect

Up to 7.0 stops (based on CIPA standard). Pitch/yaw shake only, with XF35mmF1.4 R lens attached.



Image Stabilizer Digital Image Stabilization

Yes, movie mode only



Image Stabilizer IS MODE BOOST

Yes, movie mode only



Shutter Type

Focal Plane Shutter



Shutter Speed Mechanical Shutter

P mode: 4sec to 1/8000

A mode: 30sec to 1/8000

S/M mode: 15min to 1/8000

Bulb mode: up to 60min



Shutter Speed Electronic Shutter

P mode: 4sec to 1/180000

A mode: 30sec to 1/180000

S/M mode: 15min to 1/180000

Bulb mode: 1sec Fixed



Shutter Speed Electronic Front curtain Shutter

P mode: 4sec to 1/8000

A mode: 30sec to 1/8000

S/M mode: 15min to 1/8000

Bulb mode: up to 60min



Shutter Speed Mechanical + Electronic Shutter

P mode: 4sec to 1/180000

A mode: 30sec to 1/180000

S/M mode: 15min to 1/180000

Bulb mode: up to 60min

*Mechanical shutter works until 1/8000sec.



Shutter Speed E-Front + Mechanical Shutter

P mode: 4sec to 1/8000

A mode: 30sec to 1/8000

S/M mode: 15min to 1/8000

Bulb mode: up to 60min

*Electronic front curtain shutter works until 1/2000



Shutter Speed E-Front + Mechanical + Electronic Shutter

P mode: 4sec to 1/180000

A mode: 30sec to 1/180000

S/M mode: 15min to 1/180000

Bulb mode: up to 60min

*Electronic front curtain shutter works until 1/2000, Mechanical shutter works until 1/8000



Shutter Speed Movie

8K: 1/8000 to 1/24

6.2K: 1/8000 to 1/24

DCI 4K/4K: 1/8000 to 1/4 sec.

FHD: 1/8000 to 1/4 sec.

*Cannot choose slower shutter speed than frame rate for some settings.



Synchronized Shutter Speed for Flash

Mechanical Shutter: 1/250sec. or slower



Continuous Shooting

Electronic Shutter Approx. 20fps @1.29x Crop (JPEG: 1000 + frames ,Compressed RAW: 1000 + frames, Lossless Compressed RAW 1000 + frames, Uncompressed RAW: 202 frames, Compressed RAW + JPEG: 129 frames, Lossless compressed RAW + JPEG: 95 frames, Uncompressed RAW + JPEG: 90 frames)

Electronic Shutter Approx. 13fps @1.29x Crop (JPEG: 1000 + frames ,Compressed RAW: 1000 + frames, Lossless Compressed RAW 1000 + frames, Uncompressed RAW: 1000 frames, Compressed RAW + JPEG: 372 frames, Lossless compressed RAW + JPEG: 361 frames, Uncompressed RAW + JPEG: 223 frames)

Electronic Shutter Approx. 13fps (JPEG: 1000 + frames ,Compressed RAW: 1000 + frames, Lossless Compressed RAW 1000 + frames, Uncompressed RAW: 1000 frames, Compressed RAW + JPEG: 131 frames, Lossless compressed RAW + JPEG: 131 frames, Uncompressed RAW + JPEG: 127 frames)

Electronic Shutter Approx. 8.9fps (JPEG: 1000 + frames ,Compressed RAW: 1000 + frames, Lossless Compressed RAW 1000 + frames, Uncompressed RAW: 1000 frames, Compressed RAW + JPEG: 769 frames, Lossless compressed RAW + JPEG: 751 frames, Uncompressed RAW + JPEG: 302 frames)Mechanical Shutter Approx. 15fps (JPEG: 1000 + frames ,Compressed RAW: 1000 + frames, Lossless Compressed RAW 1000 + frames, Uncompressed RAW: 1000 + frames, Compressed RAW + JPEG: 110 frames, Lossless compressed RAW + JPEG: 108 frames, Uncompressed RAW + JPEG: 104 frames)

Mechanical Shutter Approx. 15fps (JPEG: 1000 + frames ,Compressed RAW: 1000 + frames, Lossless Compressed RAW 1000 + frames, Uncompressed RAW: 1000 + frames, Compressed RAW + JPEG: 110 frames, Lossless compressed RAW + JPEG: 108 frames, Uncompressed RAW + JPEG: 104 frames)

Mechanical Shutter Approx. 10fps (JPEG: 1000 + frames ,Compressed RAW: 1000 + frames, Lossless Compressed RAW 1000 + frames, Uncompressed RAW: 1000 + frames, Compressed RAW + JPEG: 512 frames, Lossless compressed RAW + JPEG: 492 frames, Uncompressed RAW + JPEG: 223 frames)

Mechanical Shutter Approx. 17ps (JPEG: 1000 + frames ,Compressed RAW: 1000 + frames, Lossless Compressed RAW 1000 + frames, Uncompressed RAW: 1000 + frames, Compressed RAW + JPEG: 1000 + frames, Lossless compressed RAW + JPEG: 1000 + frames, Uncompressed RAW + JPEG: 1000 + frames)



*No. of recordable frames are calculated based on CFexpress Type B card in a cold start

*Recordable frames depends on recording media

*Speed of continuous shooting depends on shooting environment and shooting frames



AE Bracketing

AE Bracketing (Frames: 2, 3, 5, 7, 9 Step: by 1/3EV step, up to 3EV steps)

Filmsimulation bracketing (Any 3 types of film simulation selectable)

Dynamic Range Bracketing (100%, 200%, 400%)

ISO sensitivity Bracketing (1/3EV, 2/3EV, 1EV)

White Balance Bracketing (1, 2, 3)

Focus Bracketing (AUTO, MANUAL)

Multiple Exposure Yes (Max. 9 frames)Additive, Average, Bright, Dark

HDR Mode (AUTO, 200%, 400%, 800%, 800%+)

Advanced filter Toy camera, Miniature, Pop color, High-key, Low-key, Dynamic tone, Soft focus, Partial color (Red / Orange / Yellow / Green / Blue / Purple)



Focus Mode

Single AF/ Continuous AF/ MF



Focus Type

Intelligent Hybrid AF (TTL contrast AF / TTL phase detection AF)



Focus Low-light Performance

Contrast: -4.0EV

Phase Detection: -7.0EV

*XF50mmF1.0 attached



AF Frame Selection

Single point AF: 139/ 2517 (Changeable size of AF frame)

Zone AF: 33/ 55/ 77 from 117 areas on 139 grid

Wide/Tracking AF AF-S: Wide/ AF-C: Tracking

All



White Balance

Auto (WHITE PRIORITY, AUTO, AMBIENCE PRIORITY)/ Custom1 - 3/ Color temperature selection (2500K10000K)/ Preset Daylight, Shade, Fluorescent Light-1, Fluorescent Light-2, Fluorescent Light-3, Incandescent Light, Underwater



Self-timer

10sec./2sec.



Interval Timer Shooting

Yes (Setting : Interval, Number of shots, Starting time, Interval timer shooting exposure smoothing)



Flash

EF-X8 Guide Number approx. 11 (ISO200m) / approx. 8 (ISO100m)



Flash Sync Mode

EF-X8: 1st Curtain/ 2nd Curtain

Shoe Mount Flash: 1st Curtain/ 2nd Curtain AUTO FP (HSS)

Synchronized terminal: 1st Curtain/ 2nd Curtain.



Flash Mode

TTL (TTL AUTO / STANDARD / SLOW SYNC. ) / MANUAL / COMMANDER / OFF Shoe Mount Flash TTL (TTL AUTO) / STANDARD / SLOW SYNC. ) / MANUAL / MULTI

* When EF-X500 is set/ OFF Synchronized terminal MANUAL



Hot Shoe

Yes (Dedicated TTL Flash compatible)



Viewfinder EVF

0.5 inch approx. 5.76 million dots OLED Color Viewfinder

Coverage of viewing area vs. capturing area: approx. 100%

Eyepoint: approx. 24mm (from the Rear End of the camera's Eyepiece) Diopter adjustment: -5~+3m-1

Magnification: 0.80 with 50mm lens (35mm equivalent) at infinity and Diopter set to -1.0m-1

Diagonal angle of view: approx. 40 (Horizontal angle of view: approx. 32 ) Built-in eye sensor



LCD Monitor

3.0 inch vari-angle Touch Screen Color LCD Monitor

Aspect Ratio 3:2

Resolution: Approx. 1.62 million dots



Touch Screen Shooting Mode

Shooting, AF, Focus Area, OFF, Double Tap Setting (ON/OFF), Touch Function Setting (ON/OFF), EVF Touch Screen Area Setting



Touch Screen Playback Mode

Swipe, Pinch-in / Pinch-out, Double-tap, Drag



Sub LCD Monitor

1.28 inch Monochrome LCD Monitor, Aspect Ratio 1:1, Dots 128x128-dot



File format (Movie)

MOV/ Apple ProRes (422, HQ, LT)

Audio: Linear PCM/ Stereo Sound (24bit / 48KHz sampling)



HEVC/ H.265

Audio: Linear PCM / Stereo sound (24bit / 48KHz sampling)



MPEG-4, AVC/ H.264

Audio: Linear PCM / Stereo sound (24bit / 48KHz sampling)



MP4, MPEG-4, AVC/ H.264

Audio: AAC



Movie Compression

All Intra/Long-GOP



File Size / Frame Rate / Recording Time

8K [16:9] - 7680x4320

29.97p/ 25p/ 24p/ 23.98p

720Mbps/ 360Mbps/ 200Mbps/ 100Mbps/ 50Mbps



6.2K [16:9] - 62403150

29.97p/ 25p/ 24p/ 23.98p

720Mbps/ 360Mbps/ 200Mbps/ 100Mbps/ 50Mbps



DCI 4K HQ [17:9] - 40962160

59.94p/ 50p/ 29.97p/ 25p/ 24p/ 23.98p

720Mbps/ 360Mbps/ 200Mbps/100Mbps/50Mbps



4K HQ [16:9] - 38402160

59.94p/ 50p/ 29.97p/ 25p/ 24p/ 23.98p

720Mbps/ 360Mbps/ 200Mbps/ 100Mbps/ 50Mbps



DCI 4K [17:9] - 40962160

59.94p/ 50p/ 29.97p/ 25p/ 24p/ 23.98p

720Mbps/ 360Mbps/ 200Mbps/100Mbps/50Mbps



4K [16:9] - 38402160

59.94p/ 50p/ 29.97p/ 25p/ 24p/ 23.98p

720Mbps/ 360Mbps/ 200Mbps/ 100Mbps/ 50Mbps



Full HD [17:9] - 2048 1080

59.94p/ 50p/ 29.97p/ 25p/ 24p/ 23.98p

720Mbps/ 360Mbps/ 200Mbps/ 100Mbps/ 50Mbps



Full HD [16:9] - 19201080

59.94p/ 50p/ 29.97p/ 25p/ 24p/ 23.98p

720Mbps/ 360Mbps/ 200Mbps/ 100Mbps/ 50Mbps



Full HD High speed rec. [17:9] - 2048x1080

240p/200p/ 120p/ 100p

720Mbps(recording)/ 360Mbps(recording)/ 200Mbps(recording)



Full HD High speed rec. [16:9] - 1920x1080

240p/200p/ 120p/ 100p/

720Mbps(recording)/ 360Mbps(recording)/ 200Mbps(recording)



*For recording movies, use a CFexpress Type B card or SD memory card with UHS Speed Class 3 or higher.

*For recording movies in 360Mbps, use a CFexpress Type B card or SD memory card with Video Speed Class 60 or higher.

*For recording movies in 720Mbps, use a CFexpress Type B card or SD memory card with Video Speed Class 90 or higher.

*Selectable bitrate will be changed depends on the setting.

*Apple ProRes codec can be only recorded to CFexpress Type B card

*Bitrate for Apple ProRes codec is not selectable.

*Recording length can shorten depending on the temperature and/or shooting conditions



Film Simulation Mode

19 modes (PROVIA/Standard, Velvia/Vivid, ASTIA/Soft, Classic Chrome, PRO Neg.Hi, PRO Neg.Std, Classic Neg., Nostalgic Neg., ETERNA Cinema, ETERNA BLEACH BYPASS, ACROS, ACROS + Ye Filter, ACROS + R Filter

ACROS + G Filter, Black & White, Black & White + Ye Filter, Black & White + R Filter, Black & White + G Filter, Sepia)



Clarity setting

5 steps



Monochromatic Color

Yes



HDR Mode

AUTO

200%

400%

800%

800% +



Grain Effect

Roughness STRONG, WEAK, OFF, Size LARGE, SMALL



Color Chrome Effect

STRONG, WEAK, OFF



Color chrome Blue

STRONG, WEAK, OFF



Smooth Skin Effect

STRONG, WEAK, OFF



Dynamic Range Setting

AUTO, 100%, 200%, 400%

ISO restriction (DR100%: No limit, DR200%: ISO320 or more, DR400%: ISO640 or more)



Dynamic Range Setting (Movie)

100%, 200%, 400%

ISO restriction (DR100%: No limit, DR200%: ISO320 or more, DR400%: ISO640 or more)



Advanced Filter

Toy camera

Miniature

Pop color

High-key

Low-key

Dynamic tone

Soft focus

Partial color (Red / Orange / Yellow / Green / Blue / Purple)



Wireless Transmitter Standard

IEEE802.11a/b/g/n/ac (standard wireless protocol)



Wireless Transmitter Encryption

WEP/WPA/WPA2 mixed mode



Wireless Transmitter Access Mode

Infrastructure



Terminal - Digital Interface

USB Type-C (USB3.2 Gen2x1)



Terminal - HDMI Output

HDMI connector (Type A)



Terminal - Others

3.5mm, stereo mini connector (Microphone), 3.5mm, stereo mini connector (Headphone), 2.5mm, Remote Release Connector, Hot shoe, Synchronized terminal



Power Supply

NP-W235 Li-ion battery (included)

*Approximate number of frames or movie recording time that can be taken with a fully-charged based on CIPA Standard.



Battery Life for Still Images

Economy Mode Approx. 680 frames, Normal Mode Approx. 540 frames

*When XF35mmF1.4 R is set



Actual Battery Life for Movie Capture

8K Approx. 70min. (29.97p),4K Approx. 75min. (59.94p), Full HD Approx. 85min. (59.94p)

*Face detection is set to OFF



Continuance Battery Life for Movie Capture

8K Approx. 100min. (29.97p),4K Approx. 120min. (59.94p), Full HD Approx. 140min. (59.94p)

*Face detection is set to OFF



Approximate External Camera Dimensions

(W) 136.3mm x (H) 92.9mm x (D) 84.6mm Minimum Depth 42.8mm



Camera Width (mm)

136.3



Camera Height (mm)

92.9



Camera Depth (mm)

84.6



Camera Minimum Depth (mm)

42.8



Camera Width (in)

5.37



Camera Height (in)

3.66



Camera Depth (in)

3.33



Camera Minimum Depth (in)

1.69



Camera Body Weight

Approx. 660g (including battery and memory card)

Approx. 579g (excluding battery and memory card)



Operating Temperature

-10C-40C/ 14F-104F



Operating Humidity

10% - 80% (no condensation)



Start Up Period

Approx. 0.49sec.



What's Included

Li-ion battery NP-W235S

AC power adapter AC-5VJ

Plug adapter

USB cable

Shoulder strap

Body cap

Hot shoe cover

File transmitter/vertical battery grip connector cover

Memory card slot cover

Sync terminal cover

Cooling fan connector cover

Cable protector

Owner's manual
