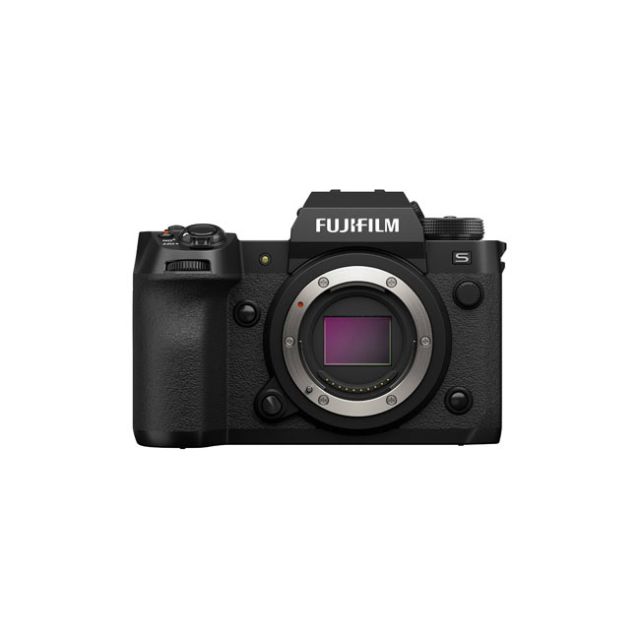

Fujifilm X-H2S Mirrorless Camera (Black)

Fujifilm X-H2S Mirrorless Camera (Black)

• 1 Megapixel X-Trans CMOS 5 HS Stacked BSI Imaging Sensor
• 40 Frames per second in Electronic Shutter, 4K/120P, 6.2K/30P, HD/240P
• Record Apple ProResHQ internally in 10-bit at 4:2:2
• Newly created Flog2 encoding for greater dynamic range
• External recording of ProRes Raw and Blackmagic Raw
• Up to 7 stops of Internal Body Image Stabilization (IBIS)

X-H2S offers a powerful and versatile combination of photographic and filmmaking features to enhance any storytellers vision. Central to its success are the 26.1-megapixel, back-illuminated X-Trans CMOS 5 HS stacked sensor and X-Processor 5, which combine to provide a 14-stop dynamic range and outstanding performance in all lighting conditions. For motion professionals, there is a wealth of 6.2K 30P full sensor 3:2 recording options, which includes internal 10-bit 4:2:2 Apple ProRes and external Apple ProRes RAW and Blackmagic RAW, all with an electronic shutter capable of making images at 40 frames-per-second, with up to 7-stops of in-body image stabilization, and with an AI-powered advanced autofocus system designed to ensure that performance-seeking stills photographers will also not be disappointed.

X-H2S is the first X Series camera to feature the 26.1-megapixel, X-Trans 5 stacked back-illuminated sensor. Building on the unique X-Trans color filter array that minimizes moir and false colors, placing the sensors circuitry on a separate layer from the pixels delivers outstanding image quality thanks to expanded low light capabilities and up to 14-stops of dynamic range. Allied to the sensor is the new X-Processor 5, offering lightning-fast performance for the most demanding situations. Capable of handling vast amounts of data, X-Processor 5 delivers next-level performance enhancements in video and stills processing capabilities and a 5.76 million dot resolution EVF, alongside advanced, intelligent autofocus functionality thats 3x faster than Fujifilms preceding X-T4 model.

Powerful video features make X-H2S a go-to device both for hybrid image makers and dedicated motion professionals. Up to 90 minutes of footage can be internally recorded with a single battery, at a wide range of resolutions and frame rates up to 6.2K/30P in Open Gate 3:2, 4K/120P, and Full HD/240P. This delivers unparalleled flexibility within the X Series lineup. Additionally, the ability to record 10-bit 4:2:2 Apple ProRes footage internally to CFexpress Type B memory cards offers incredible post-production flexibility, while the X-Trans 5 sensors 14-stop dynamic range optimizes the level of image detail across a uniquely wide exposure range.

The autofocusing system in X-H2S is not only quick, but also highly advanced. Capable of working in light levels down to -7EV and keeping up with both fast and erratically moving subjects, it now features Subject Detection autofocus, utilizing AI to deliver an unmatched autofocus performance. Whereas previous X Series models offer Face and Eye Detection AF, X-H2Ss Subject Detection AF broadens the range of identifiable subjects to further enhance focusing accuracy. The new system has the ability to identify and track cars, planes, trains, motorcyclists, birds, horses, dogs, cats and more. Furthermore, face and eye detection capabilities have been expanded to pick up hairlines, glasses, and face coverings.

X-H2S delivers powerful performance, suitable for any professional photographer or filmmaker. Continuous shooting is possible at 15 frames-per-second with the mechanical shutter, and up to 40 frames-per-second when the electronic shutter is deployed. These impressive speeds are backed up by the cameras high-capacity buffer, which allows unlimited continuous recording and writing of JPEG and RAW files to a high-speed memory card when using the mechanical shutter. Creative possibilities abound with by the cameras in-body image stabilization system, offering up to seven stops of shake reduction to give the handheld user true versatility.

In addition to a wide range of internal video recording features, X-H2S provides significant flexibility for external recording. F-Log or F-Log2, Apple ProRes RAW and Blackmagic RAW footage can all be recorded to an external device through the cameras standard, Type A HDMI port. Unlock the full capability of X-H2Ss unmatched image quality by recording F-Log or F-Log2 in resolutions of up to 6.2K in Apple ProRes RAW*1 and Blackmagic RAW*2 . *1 Atomos Ninja V+ HDR Monitor Recorder Required *2 Blackmagic Design Video Assist Monitor Required

Specs



Number of Effective Pixels

26.16 millions pixels



Image Sensor

23.5mm x 15.6mm (APS-C) X-Trans CMOS 5 HS with primary color filter



Sensor Cleaning System

Ultra Sonic Vibration



Storage Media

SD Card (-2GB) / SDHC Card (-32GB) / SDXC Card (-2TB) / UHS-I / UHS-II / Video Speed Class V90 / CFexpress Type B Card (-2TB)

*Please visit https://fujifilm-x.com/support/compatibility/cameras to check memory card compatibility.



File format (Still)

JPEG-Exif Ver.2.32, HEIF-4:2:2 10bit, RAW-14bit RAW (RAF original format), TIFF-8bit / 16bit RGB (In-camera Raw Conversion Only)



*Exif 2.32 is a digital camera file format that contains a variety of shooting information for optimal printing



Number of Recorded Pixels

L: [3:2] 6240x4160 [16:9] 6240x3512 [1:1] 4160x4160

M: [3:2] 4416x2944 [16:9] 4416x2488 [1:1] 2944x2944

S: [3:2] 3120x2080 [16:9] 3120x1760 [1:1] 2080x2080



Lens Mount

FUJIFILM X mount



Sensitivity Standard Output

STILL: AUTO1/ AUTO2/ AUTO3/ ISO16012800 (1/3 step)

MOVIE: AUTO/ ISO16012800 (1/3 step)



Sensitivity Extended Output

STILL: ISO80/I SO100/ ISO12/ ISO25600/ ISO51200

MOVIE: ISO25600



Exposure Control

TTL 256-zone metering/ Multi/ Spot/Average/ Center Weighted



Exposure Mode

P (Program AE)/ A (Aperture Priority AE)/ S (Shutter Speed Priority AE)/ M (Manual Exposure)



Exposure Compensation

STILL: -5.0EV+5.0EV (1/3EV step)/ MOVIE: -2.0EV+2.0EV (1/3EV step)



Image Stabilizer Mechanism

Image sensor shift mechanism with 5-axis compensation



Image Stabilizer Compensation Effect

Up to 7.0 stops (based on CIPA standard). Pitch/yaw shake only, with XF35mmF1.4 R lens attached.



Image Stabilizer Digital Image Stabilization

Yes, movie mode only



Image Stabilizer IS MODE BOOST

Yes, movie mode only



Shutter Type

Focal Plane Shutter



Shutter Speed Mechanical Shutter

P mode: 4sec to 1/8000

A mode: 30sec to 1/8000

S/M mode: 15min to 1/8000

Bulb mode: up to 60min



Shutter Speed Electronic Shutter

P mode: 4sec to 1/32000

A mode: 30sec to 1/32000

S/M mode: 15min to 1/32000

Bulb mode: 1sec Fixed



Shutter Speed Electronic Front curtain Shutter

P mode: 4sec to 1/8000

A mode: 30sec to 1/8000

S/M mode: 15min to 1/8000

Bulb mode: up to 60min



Shutter Speed Mechanical + Electronic Shutter

P mode: 4sec to 1/32000

A mode: 30sec to 1/32000

S/M mode: 15min to 1/32000

Bulb mode: up to 60min

*Mechanical shutter works until 1/8000sec.



Shutter Speed E-Front + Mechanical Shutter

P mode: 4sec to 1/8000

A mode: 30sec to 1/8000

S/M mode: 15min to 1/8000

Bulb mode: up to 60min

*Electronic front curtain shutter works until 1/2000



Shutter Speed E-Front + Mechanical + Electronic Shutter

P mode: 4sec to 1/32000

A mode: 30sec to 1/32000

S/M mode: 15min to 1/32000

Bulb mode: up to 60min

*Electronic front curtain shutter works until 1/2000, Mechanical shutter works until 1/8000



Shutter Speed Movie

6.2K: 1/8000 to 1/24

DCI 4K/4K: 1/8000 to 1/4 sec.

FHD: 1/8000 to 1/4 sec.

*Cannot choose slower shutter speed than frame rate for some settings.



Synchronized Shutter Speed for Flash

Mechanical Shutter: 1/250sec. or slower

Electronic Shutter: 1/125sec. or slower



Continuous Shooting

Electronic Shutter Approx. 40fps (JPEG: 184 frames ,Compressed RAW: 175 frames, Lossless Compressed RAW 170 frames, Uncompressed RAW: 140 frames)

Electronic Shutter Approx. 30fps (JPEG: 1000+ frames ,Compressed RAW: 270 frames, Lossless Compressed RAW 250 frames, Uncompressed RAW: 180 frames)

Electronic Shutter Approx. 20fps (JPEG: 1000+ frames ,Compressed RAW: 1000+ frames, Lossless Compressed RAW 1000+frames, Uncompressed RAW: 800 frames)

Electronic Shutter Approx. 15fps (JPEG: 1000+ frames ,Compressed RAW: 1000+ frames, Lossless Compressed RAW 1000+frames, Uncompressed RAW: 1000 frames)

Mechanical Shutter Approx. 15fps (JPEG: 1000+ frames ,Compressed RAW: 1000+ frames, Lossless Compressed RAW 1000+frames, Uncompressed RAW: 1000 frames)

Mechanical Shutter Approx. 10fps (JPEG: 1000+ frames ,Compressed RAW: 1000+ frames, Lossless Compressed RAW 1000+frames, Uncompressed RAW: 1000+frames)

Mechanical Shutter Approx. 8.0fps (JPEG: 1000+ frames ,Compressed RAW: 1000+ frames, Lossless Compressed RAW 1000+frames, Uncompressed RAW: 1000+frames)

Electronic Shutter Approx. 40fps (While half press 40 frames ,After full press 110 frames, Total 150 frames)

Electronic Shutter Approx. 30fps (While half press 30 frames ,After full press 1000+ frames,)

Electronic Shutter Approx. 20fps (While half press 20 frames ,After full press 1000+ frames,)

Electronic Shutter Approx. 15fps (While half press 15 frames ,After full press 1000+ frames,)

*No. of recordable frames are calculated based on CFexpress Type B card in a cold start

*Recordable frames depends on recording media

*Speed of continuous shooting depends on shooting environment and shooting frames



AE Bracketing

AE Bracketing (Frames: 2, 3, 5, 7, 9 Step: by 1/3EV step, up to 3EV steps)

Filmsimulation bracketing (Any 3 types of film simulation selectable)

Dynamic Range Bracketing (100%, 200%, 400%)

ISO sensitivity Bracketing (1/3EV, 2/3EV, 1EV)

White Balance Bracketing (1, 2, 3)

Focus Bracketing (AUTO, MANUAL)

Multiple Exposure Yes (Max. 9 frames)Additive, Average, Bright, Dark

HDR Mode (AUTO, 200%, 400%, 800%, 800%+)

Advanced filter Toy camera, Miniature, Pop color, High-key, Low-key, Dynamic tone, Soft focus, Partial color (Red / Orange / Yellow / Green / Blue / Purple)



Focus Mode

Single AF/ Continuous AF/ MF



Focus Type

Intelligent Hybrid AF (TTL contrast AF / TTL phase detection AF)



Focus Low-light Performance

Contrast: -4.0EV

Phase Detection: -7.0EV

*XF50mmF1.0 attached



AF Frame Selection

Single point AF: 139/ 2517 (Changeable size of AF frame)

Zone AF: 33/ 55/ 77 from 117 areas on 139 grid

Wide/Tracking AF AF-S: Wide/ AF-C: Tracking

All



White Balance

Auto (WHITE PRIORITY, AUTO, AMBIENCE PRIORITY)/ Custom1 - 3/ Color temperature selection (2500K10000K)/ Preset Daylight, Shade, Fluorescent Light-1, Fluorescent Light-2, Fluorescent Light-3, Incandescent Light, Underwater



Self-timer

10sec./2sec.



Interval Timer Shooting

Yes (Setting : Interval, Number of shots, Starting time, Interval timer shooting exposure smoothing)



Flash

EF-X8 Guide Number approx. 11 (ISO200m) / approx. 8 (ISO100m)



Flash Sync Mode

EF-X8: 1st Curtain/ 2nd Curtain

Shoe Mount Flash: 1st Curtain/ 2nd Curtain AUTO FP (HSS)

Synchronized terminal: 1st Curtain/ 2nd Curtain.



Flash Mode

TTL (TTL AUTO / STANDARD / SLOW SYNC. ) / MANUAL / COMMANDER / OFF Shoe Mount Flash TTL (TTL AUTO) / STANDARD / SLOW SYNC. ) / MANUAL / MULTI

* When EF-X500 is set/ OFF Synchronized terminal MANUAL



Hot Shoe

Yes (Dedicated TTL Flash compatible)



Viewfinder EVF

0.5 inch approx. 5.76 million dots OLED Color Viewfinder

Coverage of viewing area vs. capturing area: approx. 100%

Eyepoint: approx. 24mm (from the Rear End of the camera's Eyepiece) Diopter adjustment: -5~+3m-1

Magnification: 0.80 with 50mm lens (35mm equivalent) at infinity and Diopter set to -1.0m-1

Diagonal angle of view: approx. 40 (Horizontal angle of view: approx. 32 ) Built-in eye sensor



LCD Monitor

3.0 inch vari-angle Touch Screen Color LCD Monitor

Aspect Ratio 3:2

Resolution: Approx. 1.62 million dots



Touch Screen Shooting Mode

Shooting, AF, Focus Area, OFF, Double Tap Setting (ON/OFF), Touch Function Setting (ON/OFF), EVF Touch Screen Area Setting



Touch Screen Playback Mode

Swipe, Pinch-in / Pinch-out, Double-tap, Drag



Sub LCD Monitor

1.28 inch Monochrome LCD Monitor, Aspect Ratio 1:1, Dots 128x128-dot



File format (Movie)

MOV/ Apple ProRes (422, HQ, LT)

Audio: Linear PCM/ Stereo Sound (24bit / 48KHz sampling)



HEVC/ H.265

Audio: Linear PCM / Stereo sound (24bit / 48KHz sampling)



MPEG-4, AVC/ H.264

Audio: Linear PCM / Stereo sound (24bit / 48KHz sampling)



MP4, MPEG-4, AVC/ H.264

Audio: AAC



Movie Compression

All Intra/Long-GOP



File Size / Frame Rate / Recording Time

6.2K [3:2] - 62404160

29.97p/ 25p/ 24p/ 23.98p

720Mbps/ 360Mbps/ 200Mbps/ 100Mbps/ 50Mbps



DCI 4K [17:9] - 40962160

59.94p/ 50p/ 29.97p/ 25p/ 24p/ 23.98p

720Mbps/ 360Mbps/ 200Mbps/100Mbps/50Mbps



4K [16:9] - 38402160

59.94p/ 50p/ 29.97p/ 25p/ 24p/ 23.98p

720Mbps/ 360Mbps/ 200Mbps/ 100Mbps/ 50Mbps



Full HD [17:9] - 2048 1080

59.94p/ 50p/ 29.97p/ 25p/ 24p/ 23.98p

720Mbps/ 360Mbps/ 200Mbps/ 100Mbps/ 50Mbps



Full HD [16:9] - 19201080

59.94p/ 50p/ 29.97p/ 25p/ 24p/ 23.98p

720Mbps/ 360Mbps/ 200Mbps/ 100Mbps/ 50Mbps



DCI4K High speed rec. [17:9] - 4096x2160

120p/100p

720Mbps(recording)/ 360Mbps(recording)/ 200Mbps(recording)



4K High speed rec. [16:9] - 3840x2160

120p/100p

720Mbps(recording)/ 360Mbps(recording)/ 200Mbps(recording)



Full HD High speed rec. [17:9] - 2048x1080

240p/200p/ 120p/ 100p

720Mbps(recording)/ 360Mbps(recording)/ 200Mbps(recording)



Full HD High speed rec. [16:9] - 1920x1080

240p/200p/ 120p/ 100p/

720Mbps(recording)/ 360Mbps(recording)/ 200Mbps(recording)



*For recording movies, use a CFexpress Type B card or SD memory card with UHS Speed Class 3 or higher.

*For recording movies in 360Mbps, use a CFexpress Type B card or SD memory card with Video Speed Class 60 or higher.

*For recording movies in 720Mbps, use a CFexpress Type B card or SD memory card with Video Speed Class 90 or higher.

*Selectable bitrate will be changed depends on the setting.

*Apple ProRes codec can be only recorded to CFexpress Type B card

*Bitrate for Apple ProRes codec is not selectable.

*Recording length can shorten depending on the temperature and/or shooting conditions



Film Simulation Mode

19 modes (PROVIA/Standard, Velvia/Vivid, ASTIA/Soft, Classic Chrome, PRO Neg.Hi, PRO Neg.Std, Classic Neg., Nostalgic Neg., ETERNA Cinema, ETERNA BLEACH BYPASS, ACROS, ACROS + Ye Filter, ACROS + R Filter

ACROS + G Filter, Black & White, Black & White + Ye Filter, Black & White + R Filter, Black & White + G Filter, Sepia)



Clarity setting

5 steps



Monochromatic Color

Yes



HDR Mode

AUTO

200%

400%

800%

800% +



Grain Effect

Roughness STRONG, WEAK, OFF, Size LARGE, SMALL



Color Chrome Effect

STRONG, WEAK, OFF



Color chrome Blue

STRONG, WEAK, OFF



Dynamic Range Setting

AUTO, 100%, 200%, 400%

ISO restriction (DR100%: No limit, DR200%: ISO320 or more, DR400%: ISO640 or more)



Dynamic Range Setting (Movie)

100%, 200%, 400%

ISO restriction (DR100%: No limit, DR200%: ISO320 or more, DR400%: ISO640 or more)



Advanced Filter

Toy camera

Miniature

Pop color

High-key

Low-key

Dynamic tone

Soft focus

Partial color (Red / Orange / Yellow / Green / Blue / Purple)



Wireless Transmitter Standard

IEEE802.11a/b/g/n/ac (standard wireless protocol)



Wireless Transmitter Encryption

WEP/WPA/WPA2 mixed mode



Wireless Transmitter Access Mode

Infrastructure



Terminal - Digital Interface

USB Type-C (USB3.2 Gen2x1)



Terminal - HDMI Output

HDMI connector (Type A)



Terminal - Others

3.5mm, stereo mini connector (Microphone), 3.5mm, stereo mini connector (Headphone), 2.5mm, Remote Release Connector, Hot shoe, Synchronized terminal



Power Supply

NP-W235 Li-ion battery (included)

*Approximate number of frames or movie recording time that can be taken with a fully-charged based on CIPA Standard.



Battery Life for Still Images

Economy Mode Approx. 720 frames, Normal Mode Approx. 580 frames

*When XF35mmF1.4 R is set



Actual Battery Life for Movie Capture

6.2K Approx. 90min. (29.97p),4K Approx. 70min. (59.94p), Approx. 60min (120p),Full HD Approx. 95min. (59.94p)

*Face detection is set to OFF



Continuance Battery Life for Movie Capture

6.2K Approx. 120min. (29.97p),4K Approx. 105min. (59.94p),Full HD Approx. 165min. (59.94p)

*Face detection is set to OFF



Approximate External Camera Dimensions

(W) 136.3mm x (H) 92.9mm x (D) 84.6mm Minimum Depth 42.8mm



Camera Width (mm)

136.3



Camera Height (mm)

92.9



Camera Depth (mm)

84.6



Camera Minimum Depth (mm)

42.8



Camera Width (in)

5.37



Camera Height (in)

3.66



Camera Depth (in)

3.33



Camera Minimum Depth (in)

1.69



Camera Body Weight

Approx. 660g (including battery and memory card)

Approx. 579g (excluding battery and memory card)



Operating Temperature

-10C-40C/ 14F-104F



Operating Humidity

10% - 80% (no condensation)



Start Up Period

Approx. 0.49sec.



What's Included

Li-ion battery NP-W235S
AC power adapter AC-5VJ
Plug adapter
USB cable
Shoulder strap
Body cap
Hot shoe cover
File transmitter/vertical battery grip connector cover
Memory card slot cover
Sync terminal cover
Cooling fan connector cover
Cable protector
Owner's manual
