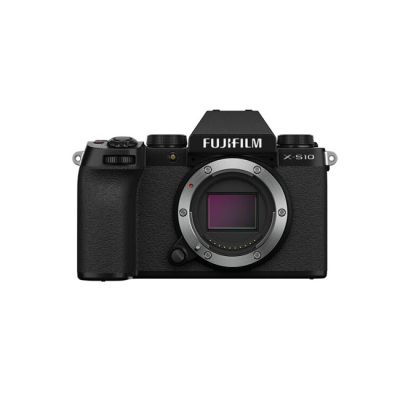

Fujifilm X-S10 Mirrorless Camera

Fujifilm X-S10 Mirrorless Camera

Key Features

• 26.1MP APS-C X-Trans BSI CMOS 4 Sensor
• X-Processor 4 Image Processor
• 5-Axis In-Body Image Stabilization
• DCI/UHD 4K at 30 fps, Full HD at 240 fps
• 425-Point Hybrid AF System
• 2.36m-Dot 0.62x OLED EVF
• 3.0" 1.04m-Dot Vari-Angle Touchscreen
• ISO 160-12800, up to 8 fps Shooting
• Bluetooth and Wi-Fi Connectivity
• 180 vari-angle LCD touchscreen
• Focus at speeds of up to 0.02 seconds and in light levels as low as -6EV
• Up to 6-stops of 5-axis In-Body Image Stabilization (IBIS)
• 4:2:2 10-bit color
• Choose from over 30 lenses
• Choose from 18 Film Simulation modes, including ETERNA Bleach Bypass

A portable, intuitive camera, capable of outstanding performance. FUJIFILM X-S10 offers renowned FUJIFILM design, engineering, and color science in an accessible package. The newly created body features a deep grip for absolute security when making images handheld, even with larger lenses, and an intuitive, simple control dial for effortless operation. It is also packed with state-of-the-art technology, including five-axis in-body image stabilization to enable smooth footage and super-sharp stills, a 180 vari-angle LCD touchscreen that covers even the most awkward angles, and superfast 0.02 second autofocus that is accurate down to -6EV. When combined with the outstanding 26.1 megapixel, back-side illuminated X-Trans CMOS 4 sensor and quad-core X-Processor 4 CPU, it is possible to achieve stunning photography and cinema-quality video, while harnessing the unique beauty arising from Fujifilms offered 18 Film Simulation modes.

X-S10 has been designed to provide on-the-go photographers with maximum control. Its deep handgrip affords solid, confident handling with any kind of lens attached, while the intuitive controls ensure effortless operation, no matter what camera system you are used to. When you also consider the 180 vari-angle LCD touchscreen and up to 20fps uncropped continuous shooting, with X-S10 you will be ready to unleash Fujifilms acclaimed color science for any and every photo opportunity.

Designed to be simple and minimalist on the outside, X-S10 still enjoys Fujifilms renowned image-making technology at its heart. With the state-of-the-art X-Trans CMOS 4 sensor and X-Processor 4 combination, it is easy to create astounding results. The 26.1 megapixel back-side illuminated sensor offers a wide dynamic range and incredible image quality, while the quad-core CPU not only provides precision autofocus at speeds of up to 0.02 seconds and in light levels as low as -6EV, but also superfast stills and video processing to keep up with your creative needs.

To document the most amazing moments, you need to be in the right place at the right time, but the greater lengths you go to in search of the perfect angle, the higher the risk of a shaky camera ruining it all. Thats why X-S10 features a five-axis in-body image stabilization (IBIS) system that gives you the freedom to go handheld and get right to the heart of the action. The six stops of image stabilization will help keep your images sharp and your video steady no matter what conditions you are faced with.

Video is becoming an increasingly important means of expression for creators around the world, so it is essential to have a camera that can excel in both photography and videography. X-S10s outstanding movie-making abilities provide the perfect solution. This camera allows you to record in cinema-quality DCI 4K/30p and super-slow motion Full HD/240p, and when you combine the five-axis IBIS with a four-axis digital image stabilization feature, you can always be confident that you will get incredibly smooth footage. Add to this 4:2:2 10-bit color via HDMI, and you have everything you need for professional filmmaking.

X-S10 is an extremely versatile camera and when you combine its versatility with a choice of over 30 different high-quality lenses, the possibilities are endless. As part of the FUJIFILM X Series system, X-S10 is compatible with the award-winning FUJINON XF, XC, and MK Lens ranges. Built based on over 70 years of experience in optical design and engineering, FUJINON optics are some of the best-loved in the market. Designed to provide outstanding resolving power and maximum clarity across the frame while maintaining the utmost portability, they are trusted by countless creators throughout the industry.

Fujifilm has been producing photographic films for over 85 years and, in this time, it has developed a legendary reputation. Some of the worlds most renowned creators have chosen Fujifilm to make some of the worlds best-loved images. The FUJIFILM Film Simulation modes were created to celebrate this history by digitizing some of the industrys most iconic analog films and placing them at your fingertips. X-S10 features 18 Film Simulation modes, including ETERNA Bleach Bypass, the newest addition to the much-loved FUJIFILM Film Simulation mode collection, which creates a beautiful, desaturated, high-contrast look that any image maker will find irresistible.

Number of Effective Pixels

26.1 million pixels



Image Sensor

23.5mmx15.6mm (APS-C) X-Trans CMOS 4 with primary color filter



Sensor Cleaning System

Ultra Sonic Vibration



Storage Media

SD Card (~2GB) / SDHC Card (~32GB) / SDXC Card (~2TB)/ UHS-I



File format (Still)

JPEG: Exif Ver 2.3, RAW: 14bit RAW RAF original format, RAW+JPEG



Number of Recorded Pixels

L: [3:2] 6240x4160 [16:9] 6240x3512 [1:1] 4160x4160

M: [3:2] 4416x2944 [16:9] 4416x2488 [1:1] 2944x2944

S: [3:2] 3120x2080 [16:9] 3120x1760 [1:1] 2080x2080



Lens Mount

FUJIFILM X mount



Sensitivity Standard Output

AUTO1/ AUTO2/ AUTO3 (up to ISO12800)/ ISO160~12800 (1/ 3 step)



Sensitivity Extended Output

ISO80/ 100/ 125/ 25600/ 51200



Exposure Control

TTL 256-zone metering, Multi/ Spot/ Average/ Center Weighted



Exposure Mode

P (Program AE)/ A (Aperture Priority AE)/ S (Shutter Speed Priority AE)/ M (Manual Exposure)



Exposure Compensation

STILL -5.0EV - +5.0EV (1/3EV step)/ MOVIE: -2.0EV - +2.0EV (1/3EV step)



Image Stabilizer Mechanism

Image sensor shift mechanism with 5-axis compensation



Image Stabilizer Compensation Effect

Up to 6.0 stops (based on CIPA standard). Pitch/yaw shake only.



Image Stabilizer Digital Image Stabilization

Yes, movie mode only



Image Stabilizer IS MODE BOOST

Yes, movie mode only



Shutter Type

Focal Plane Shutter



Shutter Speed Mechanical Shutter

P mode: 4sec to 1/4000 A mode: 30sec to 1/4000 S/M mode: 15min to 1/4000 Bulb mode: up to 60min



Shutter Speed Electronic Shutter

P mode: 4sec to 1/32000 A mode: 30sec to 1/32000 S/M mode: 15min to 1/32000 Bulb mode: 1sec Fixed



Shutter Speed Electronic Front curtain Shutter

P mode: 4sec to 1/32000 A mode: 30sec to 1/32000 S/M mode: 15min to 1/32000 Bulb mode: up to 60min



Shutter Speed Movie

DCI4K/4k: 1/4000 to 1/24 FHD: 1/4000 to 1/24



Synchronized Shutter Speed for Flash

1/180 or slower



Continuous Shooting

Mechanical Shutter Approx. 8fps (JPEG: 105 frames Lossless compressed RAW: 18 frames Compressed RAW: 23 frames Uncompressed RAW: 18 frames)

Electronic Shutter Approx. 20fps [Only electronic shutter ] (JPEG: 32 frames Lossless compressed RAW: 17 frames Compressed RAW: 17 frames Uncompressed RAW: 17 frames)

Electronic Shutter Approx. 10fps [Only electronic shutter ] (JPEG: 81 frames Lossless compressed RAW: 18 frames Compressed RAW: 21 frames Uncompressed RAW: 18 frames)

Electronic Shutter (1.25x Crop) Approx. 30fps (JPEG: 29 frames Lossless compressed RAW: 17 frames Compressed RAW: 17 frames Uncompressed RAW: 17 frames)

Electronic Shutter (1.25x Crop) Approx. 20fps (JPEG: 79 frames Lossless compressed RAW: 17 frames Compressed RAW: 20 frames Uncompressed RAW: 17 frames)

Electronic Shutter (1.25x Crop) Approx. 10fps (JPEG: 153 frames Lossless compressed RAW: 18 frames Compressed RAW: 26 frames Uncompressed RAW: 18 frames)

Electronic Shutter (1.25x Crop) Pre-shot: Approx. 30fps (max. 10 frames while half press, max. 15 frames after full press, total max. 25 frames)

Electronic Shutter (1.25x Crop) Pre-shot: Approx. 20fps (max. 10 frames while half press, max. 48 frames after full press, total max. 58 frames)

Electronic Shutter (1.25x Crop) Pre-shot: Approx. 10fps (max. 10 frames while half press, max. 110 frames after full press, total max. 120 frames)



*Recordable frames depends on recording media*Speed of continuous shooting depends on shooting environment and shooting frames



AE Bracketing

AE Bracketing (Frames: 2, 3, 5, 7, 9 Step: by 1/3EV step, up to 3EV steps)

Filmsimulation bracketing (Any 3 types of film simulation selectable)

Dynamic Range Bracketing (100%, 200%, 400%)

ISO sensitivity Bracketing (1/3EV, 2/3EV, 1EV)

White Balance Bracketing (1, 2, 3)

Focus Bracketing (Frames: 1 - 999, Step: 1-10, Interval: 0 - 10s)



Focus Mode

Single AF/ Continuous AF/ MF



Focus Type

Intelligent Hybrid AF (TTL contrast AF / TTL phase detection AF)



Focus Low-light Performance

Contrast: -4.0EV Phase Detection: -7.0EV (XF50mmF1.0 attached)



AF Frame Selection

Single point AF: EVF/ LCD: 139/ 2517 (Changeable size of AF frame)

Zone AF: 33/ 55/ 77 from 91 areas on 139 grid

Wide/Tracking AF *AF-S: Wide/ AF-C: Tracking

All



White Balance

Auto (WHITE PRIORITY, AUTO, AMBIENCE PRIORITY)/ Custom1-3/ Color temperature selection (2500K-10000K)/ Dayight, Shade, Fluorescent light (Daylight), Fluorescent light (Warm White), Fluorescent light (Cool White), Incandescent light, Underwater



Self-timer

10sec. / 2sec.



Interval Timer Shooting

Yes (Setting: Interval, Number of shots, Starting time)



Flash Sync Mode

1st Curtain/ 2nd Curtain/ AUTO FP (HSS) *excl. EF-X8

1st Curtain/ 2nd Curtain (When SYNC TERMINAL on the hot shoe is used)

1st Curtain/ 2nd Curtain (When BUILT-IN FLASH is set)



Flash Mode

TTL (TTL AUTO (P mode) / STANDARD / SLOW SYNC. ) / MANUAL / COMMANDER / OFF (When BUILT-IN FLASH is set)

TTL (TTL AUTO (P mode) / STANDARD / SLOW SYNC. ) / MANUAL / MULTI / OFF (When SHOE MOUNT FLASH is set)



Hot Shoe

Yes (Dedicated TTL Flash compatible)



Viewfinder EVF

0.5 inch approx. 2.36 millions dots OLED Color Viewfinder

Coverage of viewing area vs. capturing area: approx. 100%

Eyepoint: approx. 17.5mm (from the eyepiece lens) Diopter adjustment: -4~+2m-1

Magnification: 0.62 with 50mm lens (35mm equivalent) at infinity and diopter set to -1m-1

Diagonal angle of view: approx. 31 (Horizontal angle of view: approx. 26 ) Built-in eye sensor



LCD Monitor

3.0 inch, aspect ratio 3:2, approx. 1.04 millions dots touch screen color LCD monitor(approx. 100% coverage)



Touch Screen Playback Mode

Swipe, Zoom, Pinch-in / Pinch-out, Double-tap, Drag (ON/OFF Selectable)



File format (Movie)

MOV (MPEG-4 AVC/H.264, Audio: Linear PCM / Stereo sound 24bit / 48KHz sampling)

MP4 (MPEG-4 AVC/H.264, Audio: AAC)



Movie Compression

Long-GOP



File Size / Frame Rate / Recording Time

DCI 4K (40962160) 29.97p/ 25p/ 24p/ 23.98p 200Mbps/ 100Mbps up to approx. 30min

4K (38402160) 29.97p/ 25p/ 24p/ 23.98p 200Mbps/ 100Mbps up to approx. 30min

Full HD (2048 1080) 59.94p/ 50p/ 29.97p/ 25p/ 24p/ 23.98p 200Mbps/ 100Mbps/ 50Mbps up to approx. 30min.

Full HD (19201080) 59.94p/ 50p/ 29.97p/ 25p/ 24p/ 23.98p 200Mbps/ 100Mbps/ 50Mbps up to approx. 30min. "

Full HD (19201080) High speed rec.

240p/ 200p 200Mbps(recording) up to approx. 3min.

120p/ 100p 200Mbps(recording) up to approx. 6min.



*The recording time is measured in test conditions at 25C. The recording time depends on the shooting conditions.

*For recording movies, use a SD memory card with UHS Speed Class 3 or higher.



Film Simulation Mode

18 modes (PROVIA/ Standard, Velvia/ Vivid, ASTIA/ Soft, Classic Chrome, PRO Neg.Hi, PRO Neg.Std, Black & White, Black & White+Ye Filter, Black & White+R Filter, Black & White+G Filter, Sepia, ACROS,

ACROS+Ye Filter, ACROS+R Filter, ACROS+G Filter, ETERNA/ Cinema, Classic Neg, ETERNA BLEACH BYPASS), Monochromatic Color



Clarity setting

5 steps



Monochromatic Color

Yes



HDR Mode

AUTO, 200%, 400%, 800%, 800% +



Grain Effect

Roughness: STRONG, WEAK, OFF Size: LARGE, SMALL



Color Chrome Effect

STRONG, WEAK, OFF



Color chrome Blue

STRONG, WEAK, OFF



Dynamic Range Setting

AUTO, 100%, 200%, 400%

ISO restriction (DR100%: No limit, DR200%: ISO320 or more, DR400%: ISO640 or more)



Dynamic Range Setting (Movie)

100%, 200%, 400%

ISO restriction (DR100%: No limit, DR200%: ISO320 or more, DR400%: ISO640 or more)



Advanced Filter

Toy camera, Miniature, Pop color, High-key, Low-key, Dynamic tone, Soft focus,

Partial color (Red/ Orange/ Yellow/ Green/ Blue/ Purple)



Wireless Transmitter Standard

IEEE802.11b/g/n (standard wireless protocol)



Wireless Transmitter Encryption

WEP/ WPA/ WPA2 mixed mode



Wireless Transmitter Access Mode

Infrastructure



Terminal - Digital Interface

USB Type-C (USB3.2 Gen1x1)



Terminal - HDMI Output

HDMI micro connector (Type D)



Terminal - Others

3.5mm, stereo mini connector (for Microphone and Remote Release), Hot shoe



Power Supply

NP-W126S Li-ion battery (included)



Battery Life for Still Images

Approx. 325 frames (Normal Mode) When XF35mmF1.4 R is set.



Actual Battery Life for Movie Capture

[4K] approx. 40min. (29.97p)

[Full HD] approx. 40min. (59.94p)



Continuance Battery Life for Movie Capture

[4K] approx. 55min. (29.97p)

[Full HD] approx. 65min. (59.94p)



Approximate External Camera Dimensions

(W) 126.0mm x (H) 85.1mm x (D) 65.4mm

(W) 4.96mm x (H) 3.35mm x (D) 2.57mm

Minimum Depth 32.9mm/ 1.3in



Camera Width (mm)

126



Camera Height (mm)

85.1



Camera Depth (mm)

65.4



Camera Minimum Depth (mm)

32.9



Camera Width (in)

4.96



Camera Height (in)

3.35



Camera Depth (in)

2.57



Camera Minimum Depth (in)

1.3



Camera Body Weight

Approx. 465g (including battery and SD memory card)

Approx. 415g (excluding battery and SD memory card)



Operating Temperature

0C-40C/ 32F-104F



Operating Humidity

10%~80% (no condensation)



Start Up Period

Approx. 0.4sec.
