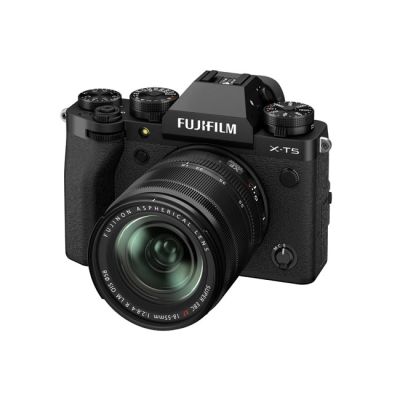

Fujifilm X-T5 Mirrorless Camera with 18-55mm Lens (Black)

by Fujifilm MFG# FUJIFILM-16783082
$2,099.95

Fujifilm X-T5 Mirrorless Camera with 18-55mm Lens (Black)

  • 2 Megapixel X-Trans CMOS 5 HR BSI Imaging Sensor
  • 15 Frames per second in Mechanical Shutter
  • Up to 7 stops of Internal Body Image Stabilization (IBIS)
  • 160MP pixel shift multi shot
  • 1/180,000 Max Shutter Speed in Electronic Shutter
  • 8x Magnification, 3.69 Mil Dots EVF

Comparable in size to the original X-T1 and 50g lighter than its predecessor, X-T5 features the latest high-resolution, 40.2-megapixel X-Trans 5 HR sensor for simply stunning results. Quick and easy to use thanks to its classic, dial-based layout, the camera features cutting-edge technology to produce stunning results. This includes a seven-stop in-body image stabilization system, Pixel Shift Multi-Shot mode for 160-megapixel files, three-way tilting LCD with 1.84 million pixels and action-freezing shutter speeds up to 1/180,000 sec from the electronic shutter. In addition to its versatile suite of stills capabilities, X-T5 is also a highly capable moviemaking machine, recording up to 6.2K in 4:2:2 10-bit color internally or 12-bit Apple ProRes RAW and Blackmagic RAW via HDMI.

Offering the ultimate image quality, X-T5 features the class-leading, 40.2-megapixel X-Trans 5 HR CMOS sensor in a compact, lightweight body that maximizes functionality and portability. Imaging performance is in no way compromised by the cameras diminutive proportions. Instead, X-T5s improved image processing algorithm delivers outstanding results, packed with detail right across the native ISO range, which now extends to ISO 125. The classic X Series design has been retained. Dials predominate, making key functions including ISO, shutter speed and exposure compensation quick and easy to set, even with the camera switched off. X-T5 is also comparable in size to the original X-T1, and 50g lighter than X-T4. Despite this notable weight reduction, the X-T5 offers a new, 1.84 million dot, three-way tilting LCD and powerful in-body image stabilization.

X-T5 provides powerful image making performance to ensure its ready for action, no matter how fast your subject is moving. A top electronic shutter speed of 1/180,000 sec and maximum mechanical shutter speed of 1/8000 sec will stop any subject in its tracks, while a lag time of just 35 ms gives almost instantaneous response when the shutter release is pressed. Keep a finger down, and X-T5 will record images at up to 15fps with the mechanical shutter, or 20fps with the electronic shutter. Either way, no important moment will be missed. Of course, when the decisive moment hits, you'll have our legendary color science and hugely popular selection of Film Simulations which digitize some of the industry’s most iconic films and puts them right at your fingertips. X-T5 adds the Nostalgic Negative Film Simulation, making it easier than ever to create images straight out of camera. For those who like to stay out in the field longer, X-T5 offers extended performance from the NP-W235 battery. Up to 740 frames can be recorded from a single charge, plus the mechanical shutter provides an estimated 500,000 actuations, delivering long-term accuracy and reliability.

Thanks to X-T5s in-body image stabilization (IBIS) system, quality-sapping camera shake will be a thing of the past even in low-light conditions. The system works in five axes, combatting all types of camera movement, and provides up to seven stops of compensation to unlock limitless opportunities. IBIS works in harmony with the cameras subject detection autofocus, which uses deep-learning AI to expertly track animals, birds, cars, motorcycles, planes and trains. Tracking moving subjects is made easier by the detailed electronic viewfinder (EVF), which uses 3.69 million dots to provide a bright, vibrant display. The EVF offers 0.8x magnification for an easy-to-view image thats further enhanced by improved suppression of parallax and distortion compared to its predecessor. The 100fps refresh rate, meanwhile, allows virtually blackout-free image making.

Following in the footsteps of X-H2, find the stunning Pixel Shift Multi-Shot mode in X-T5, delivering detailed files like never before. The feature utilizes the cameras IBIS system to precisely shift the sensor, automatically recording 20 separate frames with one press of the shutter release. Resulting files are combined using Pixel Shift Combiner software to quadruple the cameras resolution and produce a detail-rich, 160-megapixel file. Perfect for commercial applications or digital archiving, its also ideal for any static subject where image quality is of primary importance.

X-T5s capabilities are enhanced by its powerful video functions, which complement the cameras impressive stills performance. Movies can be recorded internally at up to 6.2K/30p in 4:2:2 10-bit color, plus theres a 4K HQ mode which oversamples 6.2K footage for superior 4K output. Both F-Log and F-Log2 recording are possible, the latter providing expanded dynamic range of 13+ stops, plus 12-bit Apple ProRes RAW and Blackmagic RAW can be output via HDMI, to Atomos and Blackmagic devices accordingly.



Specs



Lens Configuration

16 elements in 12 groups

(includes 3 aspherical and 1 ED aspherical elements)



Focal Length

16-80mm



35mm Equivalent Focal Length

24-122mm



Angle of View

83.2-20.1



Maximum Aperture

F4



Minimum Aperture

F22



Number of Aperture Blades

9 (rounded diaphragm opening)



Aperture Step Size

1/3EV (16 steps)



Minimum Focusing Distance (cm)

35



Minimum Focusing Distance (in)

13.78



Maximum Magnification

0.25x (Telephoto)



Lens Diameter (mm)

78.3



Lens Length (mm)

88.9



Lens Length (in)

3.5



Lens Length - Extended (mm)

131.5



Lens Length - Extended (in)

5.18



Lens Weight (g)

440



Lens Weight (lb)

0.97



Filter Size

72mm



Number of Effective Pixels

40.2 millions pixels



Image Sensor

23.5mm x 15.6mm (APS-C) X-Trans CMOS 5 HR with primary color filter



Sensor Cleaning System

Ultra Sonic Vibration



Storage Media

SD Card (-2GB) / SDHC Card (-32GB) / SDXC Card (-2TB) / UHS-I / UHS-II / Video Speed Class V90 / CFexpress Type B Card (-2TB) *Please visit https://fujifilm-x.com/support/compatibility/cameras to check memory card compatibility.



File format (Still)

JPEG-Exif Ver.2.32, HEIF-4:2:2 10bit, RAW-14bit RAW (RAF original format), TIFF-8bit / 16bit RGB (In-camera Raw Conversion Only)



*Exif 2.32 is a digital camera file format that contains a variety of shooting information for optimal printing



Number of Recorded Pixels

L: [3:2] 7728 x 5152 [16:9] 7728 x 4344 [1:1] 5152 x 5152

M: [3:2] 5472 x 3648 [16:9] 5472 x 3080 [1:1] 3648 x 3648

S: [3:2] 3888 x 2592 [16:9] 3888 x 2184[1:1] 2592 x 2592



Digital Tele-Converter

2.0x,1.4x,OFF



Lens Mount

FUJIFILM X mount



Sensitivity Standard Output

STILL: AUTO1/ AUTO2/ AUTO3/ ISO12512800 (1/3 step)

MOVIE: AUTO/ ISO12512800 (1/3 step)



Sensitivity Extended Output

STILL: ISO80/I SO100/ ISO25600/ ISO51200

MOVIE: ISO25600



Exposure Control

TTL 256-zone metering/ Multi/ Spot/Average/ Center Weighted



Exposure Mode

P (Program AE)/ A (Aperture Priority AE)/ S (Shutter Speed Priority AE)/ M (Manual Exposure)



Exposure Compensation

STILL: -5.0EV+5.0EV (1/3EV step)/ MOVIE: -2.0EV+2.0EV (1/3EV step)



Image Stabilizer Mechanism

Image sensor shift mechanism with 5-axis compensation



Image Stabilizer Compensation Effect

Up to 7.0 stops (based on CIPA standard). Pitch/yaw shake only, with XF35mmF1.4 R lens attached.



Image Stabilizer Digital Image Stabilization

Yes, movie mode only



Image Stabilizer IS MODE BOOST

Yes, movie mode only



Shutter Type

Focal Plane Shutter



Shutter Speed Mechanical Shutter

P mode: 30 sec to 1/8000

A mode: 30sec to 1/8000

S/M mode: 15min to 1/8000

Bulb mode: up to 60min



Shutter Speed Electronic Shutter

P mode: 30 sec to 1/80000

A mode: 30sec to 1/80000

S/M mode: 15min to 1/80000

Bulb mode: 1sec Fixed



Shutter Speed Electronic Front curtain Shutter

P mode: 30 sec to 1/8000

A mode: 30sec to 1/8000

S/M mode: 15min to 1/8000

Bulb mode: up to 60min



Shutter Speed Mechanical + Electronic Shutter

P mode: 30 sec to 1/80000

A mode: 30sec to 1/80000

S/M mode: 15min to 1/80000

Bulb mode: up to 60min

*Mechanical shutter works until 1/8000sec.



Shutter Speed E-Front + Mechanical Shutter

P mode: 30 sec to 1/8000

A mode: 30sec to 1/8000

S/M mode: 15min to 1/8000

Bulb mode: up to 60min

E116

*Electronic front curtain shutter works until 1/2000sec.



Shutter Speed E-Front + Mechanical + Electronic Shutter

P mode: 30 sec to 1/80000

A mode: 30sec to 1/80000

S/M mode: 15min to 1/80000

Bulb mode: 1sec Fixed. *Electronic front curtain shutter works until 1/2000sec, Mechanical shutter works until 1/8000sec. *The Electronic Shutter may not be suitable for fast-moving objects or handheld shooting. Flash can not be used.



Shutter Speed Movie

6.2K: 1/8000 to 1/24

DCI 4K/4K: 1/8000 to 1/4 sec.

FHD: 1/8000 to 1/4 sec.



Synchronized Shutter Speed for Flash

Mechanical Shutter: 1/250sec. or slower

Electronic Shutter: 1/125sec. or slower



Continuous Shooting

Electronic Shutter Approx. 20fps (1.29x Crop) (JPEG: 168 frames ,Compressed RAW: 72, Lossless Compressed RAW 41, Uncompressed RAW: 37 frames, Uncompressed RAW + JPEG: 23 frames)

Electronic Shutter Approx. 13fps (1.29x Crop) (JPEG: 1000+ frames ,Compressed RAW: 104, Lossless Compressed RAW: 53, Uncompressed RAW: 23 frames, Compressed RAW + JPEG: 56, Lossless compressed RAW + JPEG: 44, Uncompressed RAW + JPEG: 23)

Electronic Shutter Approx. 10fps (1.29x Crop) (JPEG: 1000+ frames ,Compressed RAW: 1000+, Lossless Compressed RAW 70, Uncompressed RAW: 25 frames, Compressed RAW + JPEG: 72 frames, Lossless compressed RAW + JPEG: 53 frames, Uncompressed RAW + JPEG: 23 frames)

Mechanical Shutter Approx. 15fps (JPEG: 119frames ,Compressed RAW: 39 frames, Lossless Compressed RAW 22 frames, Uncompressed RAW: 19 frames, Compressed RAW + JPEG 27 frames)

Mechanical Shutter Approx. 10fps (JPEG: 1000+ frames ,Compressed RAW: 56 frames, Lossless Compressed RAW 29 frames, Uncompressed RAW: 19 frames, Compressed RAW + JPEG: 34 frames)

Mechanical Shutter Approx. 7.0fps (JPEG: 1000+ frames ,Compressed RAW: 1000+ frames, Lossless Compressed RAW 33 frames, Uncompressed RAW: 20 frames, Compressed RAW + JPEG: 45 frames, Lossless compressed RAW + JPEG: 22 frames, Uncompressed RAW + JPEG: 20 frames)

Electronic Shutter Approx. 20fps (1.29x Crop) (While half press 20 frames ,After full press 140 frames)

Electronic Shutter Approx. 13fps (1.29x Crop) (While half press 13 frames ,After full press 300 frames,)

Electronic Shutter Approx. 10fps (1.29x Crop) (While half press 10 frames ,After full press 370 frames,)

Electronic Shutter Approx. 13fps (While half press 13 frames ,After full press 70 frames,)

*Recordable frames depends on recording media

*Speed of continuous shooting depends on shooting environment and shooting frames



AE Bracketing

AE Bracketing (Frames: 2, 3, 5, 7, 9 Step: by 1/3EV step, up to 3EV steps)

Film simulation bracketing (Any 3 types of film simulation selectable)

Dynamic Range Bracketing (100%, 200%, 400%)



Focus Mode

Single AF/ Continuous AF/ MF



Focus Type

Intelligent Hybrid AF (TTL contrast AF / TTL phase detection AF)



Focus Low-light Performance

Contrast: -4.0EV

Phase Detection: -7.0EV

*XF50mmF1.0 attached



AF Frame Selection

Single point AF: 139/ 2517 (Changeable size of AF frame)

Zone AF: 33/ 55/ 77 from 117 areas on 139 grid

Wide/Tracking AF AF-S: Wide/ AF-C: Tracking

All



White Balance

Auto (WHITE PRIORITY, AUTO, AMBIENCE PRIORITY)/ Custom1 - 3/ Color temperature selection (2500K10000K)/ Preset Daylight, Shade, Fluorescent Light-1, Fluorescent Light-2, Fluorescent Light-3, Incandescent Light, Underwater



Self-timer

10sec./2sec.



Interval Timer Shooting

Yes (Setting : Interval, Number of shots, Starting time, Interval timer shooting exposure smoothing)



Flash

EF-X8 Guide Number approx. 11 (ISO200m) / approx. 8 (ISO100m)



Flash Sync Mode

EF-X8: 1st Curtain/ 2nd Curtain

Shoe Mount Flash: 1st Curtain/ 2nd Curtain AUTO FP (HSS)

Synchronized terminal: 1st Curtain/ 2nd Curtain.



Flash Mode

TTL (TTL AUTO / STANDARD / SLOW SYNC. ) / MANUAL / COMMANDER / OFF Shoe Mount Flash TTL (TTL AUTO) / STANDARD / SLOW SYNC. ) / MANUAL / MULTI

* When EF-X500 is set/ OFF Synchronized terminal MANUAL



Hot Shoe

Yes (Dedicated TTL Flash compatible)



Viewfinder EVF

0.5 inch approx. 3.69 million dots OLED Color Viewfinder

Coverage of viewing area vs. capturing area: approx. 100%

Eyepoint: approx. 24mm (from the Rear End of the camera's Eyepiece) Diopter adjustment: -5~+3m-1

Magnification: 0.80 with 50mm lens (35mm equivalent) at infinity and Diopter set to -1.0m-1

Diagonal angle of view: approx. 40 (Horizontal angle of view: approx. 32 ) Built-in eye sensor



LCD Monitor

3.0 inch Tilt-Type (Three Direction) Touch Screen Color LCD Monitor

Aspect Ratio 3:2

Resolution: Approx. 1.84 million dots



Touch Screen Shooting Mode

Shooting, AF, Focus Area, OFF, Double Tap Setting (ON/OFF), Touch Function Setting (ON/OFF), EVF Touch Screen Area Setting



Touch Screen Playback Mode

Swipe, Pinch-in / Pinch-out, Double-tap, Drag



File format (Movie)

HEVC/ H.265

Audio: Linear PCM / Stereo sound (24bit / 48KHz sampling)



MPEG-4, AVC/ H.264

Audio: Linear PCM / Stereo sound (24bit / 48KHz sampling)



MP4, MPEG-4, AVC/ H.264

Audio: AAC



Movie Compression

All Intra/Long-GOP



File Size / Frame Rate / Recording Time

6.2K [16:9] - 62403150

29.97p/ 25p/ 24p/ 23.98p

360Mbps/ 200Mbps/ 100Mbps/ 50Mbps



DCI 4K [17:9] - 40962160

59.94p/ 50p/ 29.97p/ 25p/ 24p/ 23.98p

360Mbps/ 200Mbps/100Mbps/50Mbps



4K [16:9] - 38402160

59.94p/ 50p/ 29.97p/ 25p/ 24p/ 23.98p

720Mbps/ 360Mbps/ 200Mbps/ 100Mbps/ 50Mbps



Full HD [17:9] -20481080

59.94p/ 50p/ 29.97p/ 25p/ 24p/ 23.98p

360Mbps/ 200Mbps/ 100Mbps/ 50Mbps



Full HD [16:9] - 19201080

59.94p/ 50p/ 29.97p/ 25p/ 24p/ 23.98p

360Mbps/ 200Mbps/ 100Mbps/ 50Mbps



Full HD High speed rec. [17:9] - 2048x1080

240p/200p/ 120p/ 100p

360Mbps(recording)/ 200Mbps(recording)



Full HD High speed rec. [16:9] - 1920x1080

240p/200p/ 120p/ 100p/

360Mbps(recording)/ 200Mbps(recording)



*For recording movies, use a SD memory card with UHS Speed Class 3 or higher.

*For recording movies in 360Mbps, use a SD memory card with Video Speed Class 60 or higher.



*Selectable bitrate will be changed depends on the setting.



*Recording length can shorten depending on the temperature and/or shooting conditions



Film Simulation Mode

19 modes (PROVIA/Standard, Velvia/Vivid, ASTIA/Soft, Classic Chrome, PRO Neg.Hi, PRO Neg.Std, Classic Neg., Nostalgic Neg., ETERNA Cinema, ETERNA BLEACH BYPASS, ACROS, ACROS + Ye Filter, ACROS + R Filter

ACROS + G Filter, Black & White, Black & White + Ye Filter, Black & White + R Filter, Black & White + G Filter, Sepia)



Clarity setting

5 steps



Monochromatic Color

Yes



Grain Effect

Roughness STRONG, WEAK, OFF, Size LARGE, SMALL



Color Chrome Effect

STRONG, WEAK, OFF



Color chrome Blue

STRONG, WEAK, OFF



Smooth Skin Effect

STRONG, WEAK, OFF



Dynamic Range Setting

AUTO, 100%, 200%, 400%

ISO restriction (DR100%: No limit, DR200%: ISO320 or more, DR400%: ISO640 or more)



Dynamic Range Setting (Movie)

100%, 200%, 400%

ISO restriction (DR100%: No limit, DR200%: ISO320 or more, DR400%: ISO640 or more)



Advanced Filter

Toy camera

Miniature

Pop color

High-key

Low-key

Dynamic tone

Soft focus

Partial color (Red / Orange / Yellow / Green / Blue / Purple)



Wireless Transmitter Standard

IEEE802.11a/b/g/n/ac (standard wireless protocol)



Wireless Transmitter Encryption

WEP/WPA/WPA2 mixed mode



Wireless Transmitter Access Mode

Infrastructure



Terminal - Digital Interface

USB Type-C (USB3.2 Gen2x1)



Terminal - HDMI Output

HDMI connector (Type D)



Terminal - Others

3.5mm, stereo mini connector (Microphone), 2.5mm, Remote Release Connector, Hot shoe, Synchronized terminal



Power Supply

NP-W235 Li-ion battery (included)



Battery Life for Still Images

Economy Mode Approx. 740 frames, Normal Mode Approx. 580 frames

*When XF35mmF1.4 R is set



Actual Battery Life for Movie Capture

6.2K Approx. 90min. (29.97p)

4K Approx. 80min. (59.94p)

Full HD Approx. 90min. (59.94p)

Full HD Approx. 100min. (120P)



Continuance Battery Life for Movie Capture

6.2K Approx. 130min. (29.97p)

4K Approx. 130min. (59.94p)

Full HD Approx. 150min. (59.94p)



Approximate External Camera Dimensions

(W) 129.5mm x (H) 91mm x (D) 63.8mm - Minimum Depth 37.9mm



Approximate External Lens Dimensions

78.3mm x 88.9mm (Wide)/ 131.5mm (Telephoto)



Camera Width (mm)

129.5



Camera Height (mm)

91



Camera Depth (mm)

63.8



Camera Minimum Depth (mm)

37.9



Camera Width (in)

5.09



Camera Height (in)

3.58



Camera Depth (in)

2.51



Camera Minimum Depth (in)

1.49



Camera Body Weight

Approx. 557g including battery and memory card, Approx. 476g excluding battery and SD memory card



Operating Temperature

-10C-40C/ 14F-104F



Operating Humidity

10% - 80% (no condensation)



Start Up Period

Approx. 0.49sec.



What's Included

FLCP-58 II Lens cap
RLCP-001 Rear lens cap
Lens hood
Wrapping cloth

Li-ion battery NP-W235S
AC power adapter AC-5VJ
Plug adapter
USB cable
Headphone Adapter
Shoulder strap
Body cap
Hot shoe cover
Sync terminal cover
Owner's manual
