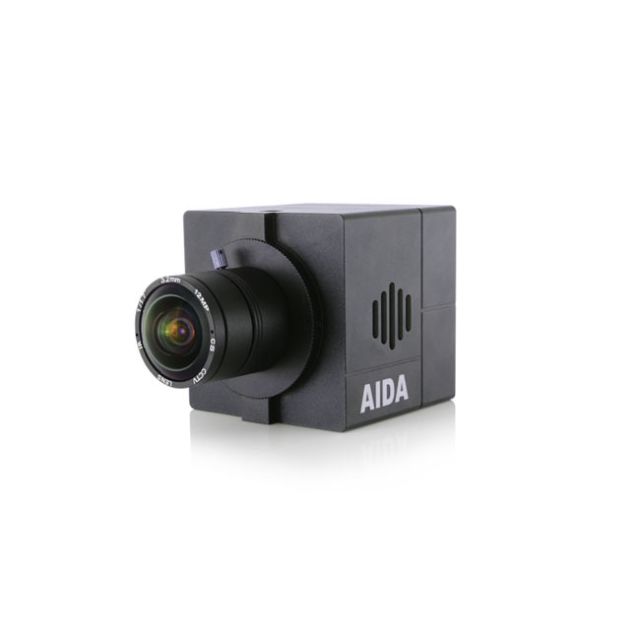

AIDA Imaging UHD 6G-SDI EFP Camera

AIDA Imaging UHD 6G-SDI EFP Camera

by AIDA Imaging MFG# AIDA-UHD6G-200
$875.00

AIDA Imaging UHD 6G-SDI EFP Camera

_x000D_

Retaining the familiar form factor and durable design of the original AIDA GEN3G cameras, the UHD6G-200 brings the expanded control sets and increased video performance. The UHD6G-200 features an advanced 4K UHD Progressive Scan CMOS image sensor capable fo 4K (3840×2160) 6G-SDI output for Industrial and Broadcast applications realizing 4K video imaging with wide dynamic range. Designed for versatility with a user-interchangeable C to CS mount lens allows the UHD6G-200 to be used in nearly any kind of workflow.

_x000D_

MAIN FEATURES

_x000D_
    _x000D_
  • 4K UHD 1/2.5 Progressive Scan CMOS sensor captures sharp and vivid UHD video even under very low light conditions.
    • _x000D_
  • Advanced digital imaging processor provides vivid and detailed images by utilizing Dynamic Range, Auto White Balance, and Noise Reduction.
    • _x000D_
  • Superb motion-compensated temporal noise reduction lter for motion video without blurring.
    • _x000D_
  • OSD control breakout cable with audio input and RS-485 for remote communication.
    • _x000D_
  • Flawlessly relays multi-channel embedded audio via SDI
    • _x000D_
  • Interchangeable lens design compatible with CS and C mount lenses.
    • _x000D_
  • Perfectly suited for broadcast, pro audio/video, and security.
    • _x000D_
  • Conforming with SMPTE 292M, 424M and 2081-10
    • _x000D_
  • Versatile, compact, and rugged design.
    • _x000D_
_x000D_ SPECIFICATIONS_x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_

Video

_x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_
Image Sensor1/2.5" Progressive CMOS
Sensor Size8.365mm X 6.615mm (16:9)
Effective PixelsHorizontal: 3840, Vertical: 2160
Pixel Size1.62 μm (H) x 1.62 μm (V)
Resolution3840 x 2160, 1920 x 1080, 1280 x 720
Resolution/Rate2160p 30/29.97/25/24
1080p 60/59.94/50/30/29.97/25/24
1080i 60/59.94/50
720p 60/59.94/50/30/25
OutputHD/3G/6G-SDI (BNC)
Color Space4:2:2 (YCbCr) 10bit
_x000D_ _x000D_ _x000D_ _x000D_ _x000D_

Function

_x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_
White BalanceAWB / AE / AF
ExposureFull Auto, Bright, Shutter Priority, Iris Priority, Manual
OthersWDR, DIS (Digital Image Stabilization), 2D/3D Noise Reduction,
Digital Slow Shutter, Black Level Compensation, Flicker Detection
_x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_
_x000D_

Lens

_x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_
LensC/CS Mount
_x000D_ _x000D_ _x000D_ _x000D_ _x000D_

Audio

_x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_
Input3.5mm Analog Audio Jack over I/O Cable
Sample Rate16/24/32 Bits
_x000D_ _x000D_ _x000D_ _x000D_ _x000D_

Standard

_x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_
SMPTESMPTE 292M, SMPTE 424M, SMPTE 2081-10
_x000D_ _x000D_ _x000D_ _x000D_ _x000D_

Physical

_x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_
Camera ControlRS-485
OSD Button
Operation Temp15°F - 120°F
Dimension49m x 49mm x 71mm / 1.92" x 1.92" x 2.79"
Weight170g / 0.37 lbs
Power12VDC (+9 - +15VDC)
