Blackmagic Design DaVinci Resolve Micro Panel
Blackmagic DaVinci Resolve Micro Panel

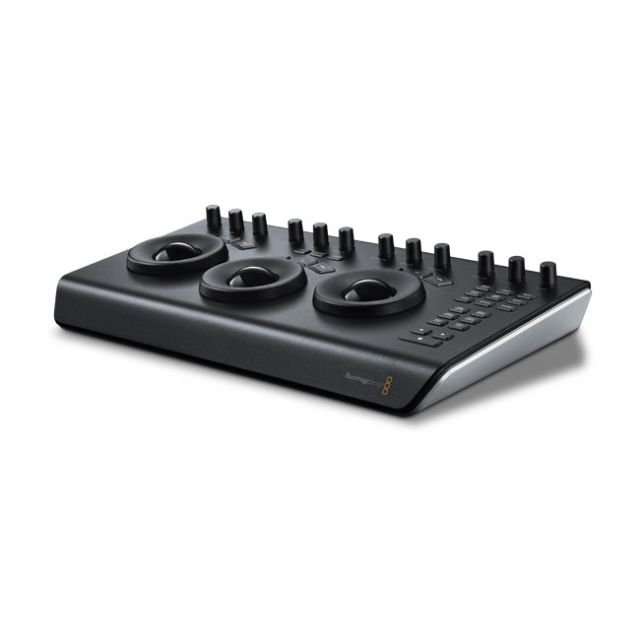

_x000D_The DaVinci Resolve Micro Panel from Blackmagic Design is a portable control surface that provides more control and a faster workflow to DaVinci Resolve software than working with a keyboard and mouse alone. Suitable for editors and colorists that need a portable control surface. It features three high-resolution, weighted trackballs and 12 control knobs for accessing essential primary color-correction tools in the Resolve software. Eighteen dedicated keys on the right side also give you access to the most commonly used grading features and playback controls.
_x000D_The Micro Panel uses a USB 3.0 Type-C interface that allows you to connect to a computer or laptop and power the panel, alleviating the need for a separate power supply. It also interfaces with Mac, Windows, or select Linux systems. For the panel to work with Resolve, your computer must be running DaVinci Resolve 12.5.5 or DaVinci Resolve Studio 12.5.5 or later. An included USB 3.0 Type-A to USB Type-C cable provides backward compatibility for systems that have USB 3.0 Type-A ports.
_x000D_ _x000D_- _x000D_
- Small enough to take with you, so you can bring it to any Resolve system (12.5.5 or later) and do color correction on location or at the editor's suite _x000D_
- _x000D_
- Shares basic layout with Mini and Advanced Panels _x000D_
- _x000D_
- Interfaces with and controls software _x000D_
- _x000D_
- Three track balls with outer control rings _x000D_
- _x000D_
- Log and Offset color-correction selection buttons _x000D_
- _x000D_
- Custom control knobs with 4096 steps per rotation and push-button reset _x000D_
- _x000D_
- Primary Correction Creative Control Knobs _x000D_
- Control knobs are grouped into four sets of three knobs _x000D_
- _x000D_
- Luminance _x000D_
- _x000D_
- _x000D_
- Y lift Control: Adjust the contrast of the image in the darker areas, specifically in the Y (luminance) channel only. This adjustment allows changing the black point without changing saturation. _x000D_
- _x000D_
- _x000D_
- Y Gamma Control: Adjust the contrast of the image in the mid-tone areas, specifically in the Y (luminance) channel only. This control helps add depth and extra vibrancy to shots. _x000D_
- _x000D_
_x000D_
- _x000D_
- Contrast _x000D_
- _x000D_
- _x000D_
- Contrast Control: Increase contrast to make the blacks darker and the whites brighter, or decrease contrast to do the opposite. _x000D_
- _x000D_
- _x000D_
- Pivot: Change the center of tonality about which dark and bright parts of the image are stretched or narrowed during a contrast adjustment. _x000D_
- _x000D_
- _x000D_
- Mid-Tone Detail: Affect the contrast of regions of the image with high edge detail to increase or decrease the perception of image sharpness and definition. Often used for softening facial features making it popular for beauty shots. _x000D_
- _x000D_
_x000D_
- _x000D_
- Detail _x000D_
- _x000D_
- _x000D_
- Color Boost Control: Raise the saturation in regions of the image with low saturation while leaving properly saturated areas alone. Also known as a vibrance operation, this is useful for adding color without over saturating the image. _x000D_
- _x000D_
- _x000D_
- Shadow Control: Selectively lighten or darken shadow detail without affecting your images mid-tones. _x000D_
- _x000D_
- _x000D_
- Highlight Control: Enable retrieving blown out highlight detail in high dynamic range media by lowering this parameter. This allows you to achieve a smooth blend between the retrieved highlights and unadjusted mid tones for a natural-looking image. _x000D_
- _x000D_
_x000D_
- _x000D_
- Saturation _x000D_
- Increases or decreases overall image saturation, you can turn your color image into a grayscale image with this control.
_x000D_- _x000D_
- Hue Control: Rotate all hues of the image around 360° of the color wheel. The default setting is 50, which retains the original distribution of hues. _x000D_
- _x000D_
- _x000D_
- Luminance Mix Control: Control the balance between the YRGB adjustments and Y only adjustments made using the Y channel lift, gamma, and gain controls. _x000D_
- _x000D_
_x000D_
