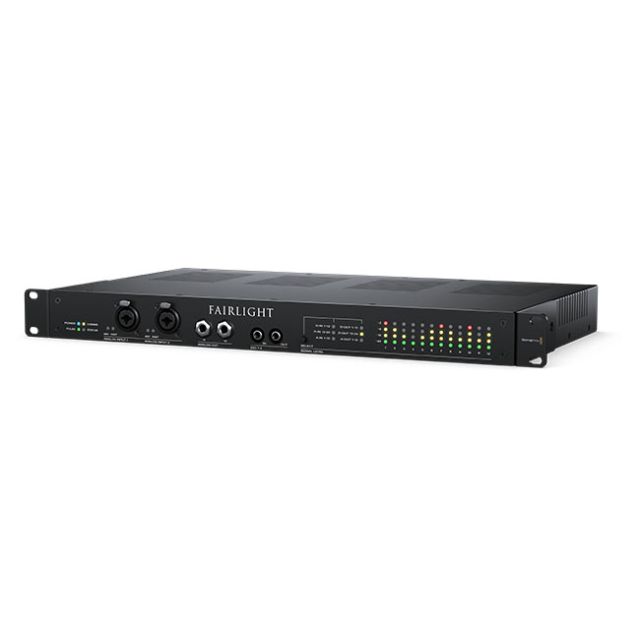

Blackmagic Design Fairlight Audio Interface
Blackmagic Fairlight Audio Interface
_x000D_Fairlight Audio Interface is a professional audio post production I/O interface with an extensive variety of analog and digital inputs and outputs, preamps for microphones and instruments, built in sample rate conversion, sync at any standard frame rate and dual 9‑pin control ports! Fairlight Audio Interface requires Fairlight Audio Accelerator and connects to the Fairlight Audio Interface with a supplied proprietary interface cable.
_x000D_Connections
_x000D_Analog Audio Inputs
_x000D_2 x remote controlled XLR/TRS microphone inputs with 48v phantom power/instrument preamps.
_x000D_8 x +24dBu balanced analog inputs.
_x000D__x000D_
Analog Audio Outputs
_x000D_12 x +24dBu balanced analog outputs with mute protection.
_x000D__x000D_
Digital Audio Inputs
_x000D_9 x fully transformer coupled AES stereo digital inputs.
_x000D_1 x S/PDIF input with sample-rate conversion.
_x000D__x000D_
Digital Audio Outputs
_x000D_11 x AES stereo digital outputs.
_x000D_1 x stereo digital S/PDIF output.
_x000D__x000D_
Standard 25pin Tascam interface for Analog and AES looms.
_x000D_Sync Input
_x000D_1 x 75 ohm BNC Reference input. Tri‑Sync or Black Burst.
_x000D_1 x 75 ohm BNC word clock input.
_x000D__x000D_
Sync Output
_x000D_1 x 75 ohm BNC Reference loop out. Tri‑Sync or Black Burst.
_x000D_1 x 75 ohm BNC word clock regenerated output.
_x000D_Sync to all common frame rates and formats including HD Tri‑level sync, video sync, word‑clock and AES/EBU.
_x000D__x000D_
Device Control
_x000D_1 x RS-422 9-pin machine control input.
_x000D_1 x RS-422 9-pin machine control output.
_x000D__x000D_
Timecode
_x000D_Timecode input and output with regeneration.
_x000D__x000D_
MIDI
_x000D_For future use
_x000D__x000D_
GPIO
_x000D_GPI and GPO connections for cough and ‘On‑Air’ control
_x000D__x000D_ _x000D_
Product Specifics
_x000D_Sample Rate
_x000D_44.1, 48, 96, 192 kHz
_x000D__x000D_
Max Input
_x000D_Inputs 1-2 (mic): +2.5dBu
_x000D_Inputs 1-2 (instrument): +24dBu
_x000D_Inputs 3-10 (Line): +24dBu
_x000D__x000D_
Gain Range
_x000D_Inputs 1-2: Mic Inputs: 50dB gain range (+21.5 to +71.5dB)
_x000D_Inputs 1-2 : Instrument Setting: 50dB gain range (+0 to +50dB)
_x000D__x000D_
Mic E.I.N (unweighted)
_x000D_Inputs 1-2: -127dBu @40dB (61.5dB)
_x000D_Gain: 150 ohm source, 20Hz - 20kHz THD+N (mic input)
_x000D_Inputs 1-2: <0.001%@ 1kHz, -1 dBFS at 0dB gain
_x000D_Inputs 1-2: <0.004%@ 1kHz, -1 dBFS at 40dB (61.5dB) gain
_x000D__x000D_
THD+N (line input)
_x000D_Inputs 1-2: <0.001%@ 1kHz, -1 dBFS after 0dB gain (unweighted)
_x000D_Inputs 3-10 : <0.001 % @ 1 kHz (unweighted)
_x000D__x000D_
Dynamic Range (line input)
_x000D_Inputs 1-2 : 108dB @ 0dB gain (unweighted)
_x000D_Inputs 3-10: 110dB (unweighted)
_x000D__x000D_
Input Frequency Response
_x000D_+0.05/-0.05dB, 20Hz - 20kHz
_x000D__x000D_
Input Impedance
_x000D_Inputs 1-2 (XLR) : 2k ohm
_x000D_Inputs 1-2 (1/4"): >1M ohm
_x000D_Inputs 3-10: 15k ohm
_x000D__x000D_
Max Output
_x000D_Outputs 1-12: +24 dBu
_x000D__x000D_
THD+N (Line Outputs)
_x000D_Outputs 1-12: <0.002%
_x000D__x000D_
Dynamic Range (Line Output)
_x000D_Outputs 1-12 : 109 dB (unweighted)
_x000D__x000D_
Output Frequency Response
_x000D_+0.05/-0.5dB, 20Hz - 20kHz
_x000D__x000D_
Output Impedance
_x000D_Outputs 1-12 : 50 ohms
_x000D__x000D_
Operating Systems
_x000D_ _x000D_Mac 10.15 Catalina or later.
_x000D__x000D_ _x000D_
Windows 10, 64-bit.
_x000D__x000D_
Power Requirements
_x000D_Power Supply
_x000D_Internal 100 - 240V AC 50/60Hz with IEC C14 mains input.
_x000D__x000D_
Power Usage
_x000D_40W
_x000D__x000D_
Power Management
_x000D_Automatically powered-on/off only when the Fairlight Audio Accelerator is powered on.
_x000D__x000D_
Physical Specifications
_x000D_ _x000D__x000D_
Environmental Specifications
_x000D_Operating Temperature
_x000D_0° to 40°C (32° to 104°F)
_x000D__x000D_
Storage Temperature
_x000D_-20° to 60°C (-4° to 140°F)
_x000D__x000D_
Relative Humidity
_x000D_0% to 90% non-condensing
_x000D__x000D_
What's Included
_x000D_- _x000D_
- Fairlight Audio Interface _x000D_
- Fairlight Audio Interface multi-pin cable to connect to Fairlight Audio Accelerator. _x000D_
_x000D_
Warranty
_x000D_1 Year Limited Manufacturer's Warranty.
