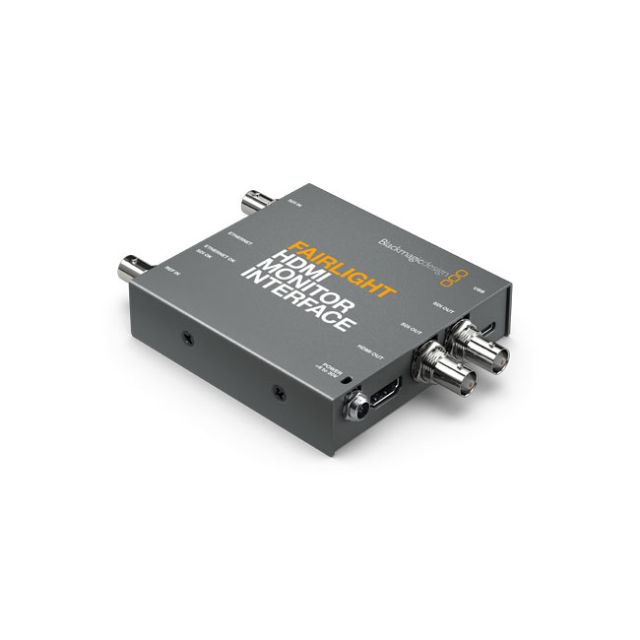

Blackmagic Design Fairlight HDMI Monitor Interface
Blackmagic Design Fairlight HDMI Monitor Interface
_x000D_Use your own HDMI or SDI monitors with a Fairlight console chassis to get instant graphic feedback for all channels. Build custom Fairlight audio consoles with amazing live audio status display using any monitor or TV!Â
_x000D_If you are using the Fairlight Console components in your own custom desk with HDMI monitors, you can use Fairlight HDMI Monitor Interface to generate the graphical feedback from Fairlight Console Channel Control! This compact converter can be placed discretely on the back of your HDMI monitor and converts the Fairlight console ethernet data to HDMI. You get instant graphic feedback for the channel control status just as you would with the Fairlight Console LCD Monitor! The interface input can also be switched to SDI so you can see the talent up close for checking lip sync while editing, and an SDI output that mirrors the HDMI output lets you connect the interface to a remote SDI monitor!
_x000D_Â
_x000D_Connections
_x000D_Ethernet
_x000D_Ethernet supports 10/100/1000 BaseT.
_x000D_HDMI Video Output
_x000D_HDMI Type A out.
_x000D_SDI Inputs
_x000D_1 x 3G‑SDI
_x000D_SDI Video Outputs
_x000D_2 x 3G‑SDI
_x000D_SDI Rates
_x000D_1.5G, 3G.
_x000D_Updates and Configuration
_x000D_1 x USB Type‑C for software configuration and software updates.
_x000D_Â
_x000D_Standards
_x000D_HDMI Video Standards
_x000D_1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
_x000D_SDI Video Standards
_x000D_1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
_x000D_SDI Compliance
_x000D_SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M‑B, SMPTE 425 Level A and Level B.
_x000D_SDI Video Sampling
_x000D_4:2:2
_x000D_SDI Color Precision
_x000D_10-bit
_x000D_SDI Color Space
_x000D_YUV
_x000D_Â
_x000D_Updates and Configuration
_x000D_1 x USB Type‑C for software configuration and software updates.
_x000D_Â
_x000D_Software
_x000D_Internal software upgrade via updater application.
_x000D_Â
_x000D_Settings Control
_x000D_Fairlight Studio and Console setup utility software when connected by USB.
_x000D_Â
_x000D_Power Requirements
_x000D_Power Supply
_x000D_+12V universal power supply included with international socket adapters for most countries.
_x000D_Power Consumption
_x000D_6W max.
_x000D_Operational Voltage Range
_x000D_6 - 30VÂ DC.
_x000D_Â
_x000D_Environmental Specifications
_x000D_Operating Temperature
_x000D_0° to 40°C (32° to 104°F)
_x000D_Storage Temperature
_x000D_-20° to 60°C (-4° to 140°F)
_x000D_Relative Humidity
_x000D_0% to 90% non-condensing
