Blackmagic Design Fairlight PCIe Audio Accelerator
Blackmagic Fairlight PCIe Audio Accelerator

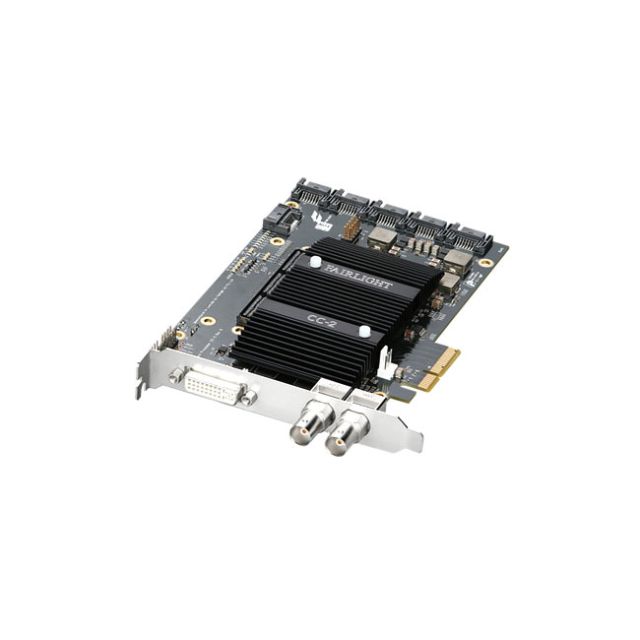

_x000D_Fairlight Audio Accelerator with DaVinci Resolve offers ultra low latency for up to 2000 tracks, cascading bus management with FlexBus and real time processing, and one coax MADI I/O with up to 64 inputs and outputs at 24 bit/48kHz! The single width PCIe card connects to the Fairlight Audio Interface with a proprietary interface to synchronize to house reference via the interface word clock, AES, MADI or HD Tri‑sync or reference video inputs.
_x000D_Â
_x000D_Connections
_x000D_MADI Inputs
_x000D_1 x MADI input via 75 ohm BNC
_x000D_Â
_x000D_MADI Outputs
_x000D_1 x MADI output via 75 ohm BNC
_x000D_Â
_x000D_MADI Expansion
_x000D_Supports Fairlight Audio MADI Upgrade via SATA connectors 1, 2 and 3.
_x000D_Â
_x000D_I/O Expansion
_x000D_Supports Fairlight Audio Interface via multi‑pin connector on shield.
_x000D_Â
_x000D_PCI Form Factor
_x000D_Single half length PCIe x4Â board
_x000D_Â
_x000D_Product Specifics
_x000D_Sampling
_x000D_44.1, 48, 96 and 192 KHz with minimum 32 bit floating point processing.
_x000D_Â
_x000D_Channel Structure
_x000D_Verified using Mac Pro 7,1 with Intel CPU.
_x000D_Â
_x000D_Core Audio
_x000D_Track count organized from mono to 26.0.
_x000D_2000 Mono Audio Tracks at 48kHz.
_x000D_1000 Mono Audio Tracks at 96kHz.
_x000D_500 Mono Audio Tracks at 192kHz.
_x000D_Â
_x000D_Total Busses
_x000D_256 Busses plus 512 Bus elements at 48kHz.
_x000D_256 Busses plus 256 Bus elements at 96kHz.
_x000D_256 Busses plus 128 Bus elements at 192kHz.
_x000D_Â
_x000D_Record Channels
_x000D_128 at 48kHz.
_x000D_64 at 96kHz.
_x000D_32 at 192kHz.
_x000D_Â
_x000D_Additional Record Channels
_x000D_When used with Core Audio plus Fairlight Accelerator.
_x000D_256 at 48kHz.
_x000D_128 at 96kHz.
_x000D_64 at 192kHz.
_x000D_Â
_x000D_Channel Facilities
_x000D_Elastic wave time warping and sample rate conversion.
_x000D_Six band EQ.
_x000D_Expander/gate, compressor and limiter.
_x000D_Up to six Resolve, VST or AUÂ plugins.
_x000D_Direct out.
_x000D_Four band clip based EQ.
_x000D_Up to six Resolve, VST or AU clip based plugins.
_x000D_Mono, stereo, 5.1, 7.1 up to 26.0 and other 3D channel formats.
_x000D_In place solo.
_x000D_Up to 16 VCA groups.
_x000D_Â
_x000D_FlexBus Structure
_x000D_Up to 512 mono bus elements, organized in any format from mono to 26.0.
_x000D_Mono, stereo, 5.1, 7.1 up to 26.0 and other 3D bus formats.
_x000D_Up to 10 bus sends per channel and bus with independent level control.
_x000D_Up to 10 post fader bus sends per channel and bus.
_x000D_Automatic and flexible delay compensation.
_x000D_Â
_x000D_Bus Facilities
_x000D_Four band EQ.
_x000D_Compressor and limiter.
_x000D_Up to six Resolve, VST or AU pre fader plugins.
_x000D_Direct out.
_x000D_Â
_x000D_Plug-ins
_x000D_Up to six Resolve, VST or AU plug-ins on any channel or bus.
_x000D_Tactile control of plug-ins from the Fairlight audio editor.
_x000D_Plug-ins are fully controllable with automation.
_x000D_Â
_x000D_Monitoring
_x000D_Up to four simultaneous sources.
_x000D_Source from internal buses or external inputs.
_x000D_Up to 16 different speaker sets.
_x000D_Customizable fold up and fold down when crossing formats.
_x000D_Optional B-Chain processor for cinematic setups with up to 64 speakers.
_x000D_Â
_x000D_Operating Systems
_x000D_Mac 10.15 Catalina or later, not
including Apple silicon systems.
Â
_x000D_Windows 10, 64-bit.
_x000D_Â
_x000D_Power
_x000D_Power Usage
_x000D_14W
_x000D_Â
_x000D_Physical Specifications
_x000D_Environmental Specifications
_x000D_Operating Temperature
_x000D_0° to 40°C (32° to 104°F)
_x000D_Â
_x000D_Storage Temperature
_x000D_-20° to 60°C (-4° to 140°F)
_x000D_Â
_x000D_Relative Humidity
_x000D_0% to 90% non-condensing
_x000D_Â
_x000D_What's Included
_x000D_- _x000D_
- Fairlight Audio Accelerator _x000D_
Â
_x000D_Warranty
_x000D_1 Year Limited Manufacturer's Warranty.
