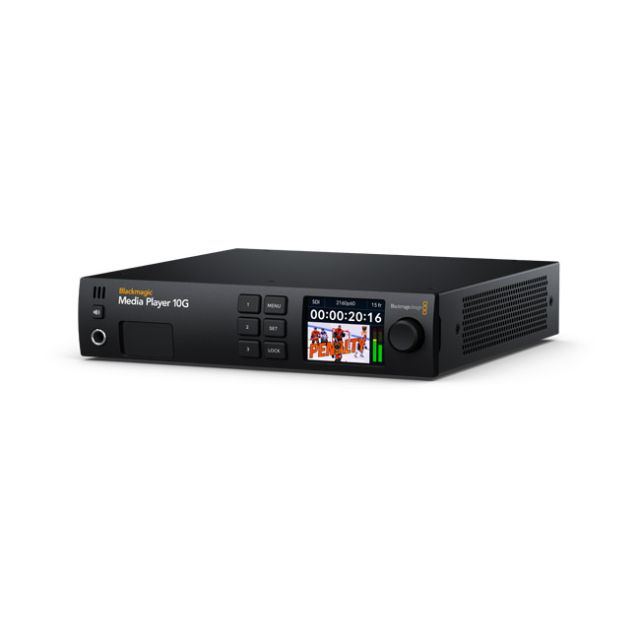

Blackmagic Design Media Player 10G
Blackmagic Design Media Player 10G
_x000D_Blackmagic Design’s Media Player 10G is a powerful capture and playback solution packed with the latest broadcast technology! You get dual 12G-SDI outputs for fill and key playback, 12G-SDI capture and 10G Ethernet that lets customers use DaVinci Resolve 19 as a media player and replay solution for the live production and broadcast markets, all over a single Thunderbolt connection.
_x000D_Â
_x000D_Connections
_x000D_SDI Video Inputs
_x000D_1
_x000D_Â
_x000D_SDI Fill Outputs
_x000D_1
_x000D_Â
_x000D_SDI Key Outputs
_x000D_1
_x000D_Â
_x000D_SDI Loop Outputs
_x000D_1
_x000D_Â
_x000D_SDI Extended Desktop Outputs
_x000D_1
_x000D_Â
_x000D_SDI Monitor Outputs
_x000D_1
_x000D_Â
_x000D_SDI Rates
_x000D_270Mb, 1.5G, 3G, 6G, 12G.
_x000D_Â
_x000D_HDMI Extended Desktop Outputs
_x000D_1
_x000D_Â
_x000D_HDMI Monitor Outputs
_x000D_1
_x000D_Â
_x000D_Analog Audio Outputs
_x000D_2 channels of professional balanced analog audio with 3-pin XLRÂ connectors.
_x000D_1 x 6.35 mm headphone jack.
_x000D_Â
_x000D_SDI Audio Inputs
_x000D_16 Channels embedded in SD/HD/2K/UHD/4K.
_x000D_Â
_x000D_SDI Audio Outputs
_x000D_16 Channels embedded in SD/HD/2K/UHD/4K.
_x000D_Â
_x000D_HDMI Audio Inputs
_x000D_8 Channels embedded in SD/HD/UHD/4K.
_x000D_Â
_x000D_HDMI Audio Outputs
_x000D_8 Channels embedded in SD/HD/UHD/4K.
_x000D_Â
_x000D_Device Control
_x000D_1 x Sony™ compatible RS-422 deck control input port.
_x000D_Â
_x000D_USB
_x000D_1 x USB‑C 3.1 Gen 1 (up to 5 Gb/s).
_x000D_Â
_x000D_Computer Interface
_x000D_2 x Thunderbolt™ 3 (Mac OS, Windows and Linux)
_x000D_1 x USB‑C for keyboard, mouse and other USB devices
_x000D_Ethernet
_x000D_1 x 10Gb/s RJ‑45 connector supporting 1000/10G BASE‑T.
_x000D_Â
_x000D_Supported Codecs
_x000D_Video Codecs
_x000D_AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4.
_x000D_Â
_x000D_Software
_x000D_Software Included
_x000D_Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.
_x000D_Â
_x000D_Internal Software Upgrade
_x000D_Firmware built into software driver. Software driver loads upgrades at system start or via updater software.
_x000D_Â
_x000D_Software Applications
_x000D_DaVinci Resolve
_x000D_Fusion
_x000D_Â
_x000D_SDI Video Standards
_x000D_SD Video Standards
_x000D_525i59.94 NTSC, 625i50 PAL
_x000D_Â
_x000D_HD Video Standards
_x000D_720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Â
_x000D_2K Video Standards
_x000D_2Kp23.98Â DCI, 2Kp24Â DCI, 2Kp25Â DCI, 2Kp29.97Â DCI, 2Kp30 DCI, 2Kp50 DCI, 2Kp59.94Â DCI, 2Kp60 DCI
2KPsF23.98Â DCI, 2KPsF24Â DCI, 2KPsF25Â DCI, 2KPsF29.97Â DCI, 2KPsF30 DCI
Â
_x000D_Ultra HD Video Standards
_x000D_2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
_x000D_Â
_x000D_4K Video Standards
_x000D_4Kp23.98Â DCI, 4Kp24Â DCI, 4Kp25Â DCI, 4Kp29.97Â DCI, 4Kp30 DCI, 4Kp50 DCI, 4Kp59.94Â DCI, 4Kp60 DCI
_x000D_Â
_x000D_SDI Compliance
_x000D_SMPTE 259M, SMPTE 292M, SMPTE 292M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, SMPTE 2084 and SMPTE ST2108-1.
_x000D_Â
_x000D_SDI Metadata Support
_x000D_RP 188/SMPTE 12M-2 and closed captioning.
_x000D_Â
_x000D_Multiple Rate Support
_x000D_SDI video connections are switchable between SD/HD/2K/UHD and 4K.
_x000D_Â
_x000D_SDI Audio Sampling
_x000D_Television standard sample rate of 48 kHz and 24-bit.
_x000D_Â
_x000D_SDI Video Sampling
_x000D_4:2:2, 4:4:4
_x000D_Â
_x000D_SDI Color Precision
_x000D_8, 10, 12-bit RGB 4:4:4 in modes up to 4Kp30 and
_x000D_8, 10-bit YUV 4:2:2 in all modes.
_x000D_Â
_x000D_SDI Color Space
_x000D_REC 601, REC 709 and REC 2020
_x000D_Â
_x000D_HDR Support
_x000D_HDR static metadata packing, HLG and PQ transfer characteristics.
_x000D_Â
_x000D_HDMI Video Standards
_x000D_SD Video Standards
_x000D_525i59.94Â NTSC, 625i50 PAL
_x000D_Â
_x000D_HD Video Standards
_x000D_720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Â
_x000D_Ultra HD Video Standards
_x000D_2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
_x000D_Â
_x000D_4K Video Standards
_x000D_4Kp23.98Â DCI, 4Kp24Â DCI, 4Kp25Â DCI, 4Kp29.97Â DCI, 4Kp30 DCI, 4Kp50 DCI, 4Kp59.94Â DCI, 4Kp60 DCI
_x000D_Â
_x000D_HDMI Audio Sampling
_x000D_Television standard sample rate of 48 kHz and 24-bit.
_x000D_Â
_x000D_HDMI Video Sampling
_x000D_4:4:4, 4:2:2 and 4:2:0
_x000D_Â
_x000D_HDMI Color Precision
_x000D_8, 10 and 12-bit
_x000D_Â
_x000D_HDMI Color Space
_x000D_REC 601, REC 709 and REC 2020
_x000D_Â
_x000D_HDR Support
_x000D_HDR static metadata packing, HLG and PQ transfer characteristics.
_x000D_Â
_x000D_HDR Configuration
_x000D_HDMI 2.0b supports Deep Color and HDR. Automatically configures to connected display.
_x000D_Â
_x000D_Multiple Rate Support
_x000D_HDMI video connections are switchable between SD/HD/UHD and 4K.
_x000D_Â
_x000D_Hardware Frame Buffer
_x000D_v210 (10 bit YUV), 2vuy (8 bit YUV), ARGB, BGRA (8 bit RGB), r210 (10 bit RGB), Ay10 (10 bit YUVA), R12B, R12L (12 bit RGB).
_x000D_Â
_x000D_Control
_x000D_Built in Control Panel
_x000D_6 buttons, spin knob and 2.2 inch color display for menu and settings. Front speaker on/off button.
_x000D_Â
_x000D_External Control
_x000D_RS-422 deck control input for remote control of software. Also supports Advanced Media Protocol.
_x000D_Â
_x000D_Physical Installation
_x000D_Half rack unit width, 1 rack unit height.
_x000D_Â
_x000D_Operating Systems
_x000D_Mac 13.0 Ventura,
Mac 14.0 Sonoma or later.
Windows 10, 64-bit.
Windows 11.
Â
_x000D_Power Requirements
_x000D_Power Supply
_x000D_1 x Internal 100 - 240V AC 50/60Hz with IEC C14 socket.
_x000D_Â
_x000D_Power Usage
_x000D_TBA
_x000D_Â
_x000D_Physical Specifications
_x000D_Â
_x000D_Environmental Specifications
_x000D_Â
_x000D_Operating Temperature
_x000D_5° to 40°Â C (41° to 104° F)
_x000D_Â
_x000D_Storage Temperature
_x000D_-20° to 45° C (-4° to 113° F)
_x000D_Â
_x000D_Relative Humidity
_x000D_0% to 90% non‑condensing
_x000D_Â
_x000D_What's Included
_x000D_Blackmagic Media Player 10G
_x000D_Welcome wallet with QR code for software download
_x000D_Â
_x000D_Warranty
_x000D_3 Year Limited Manufacturer's Warranty.
