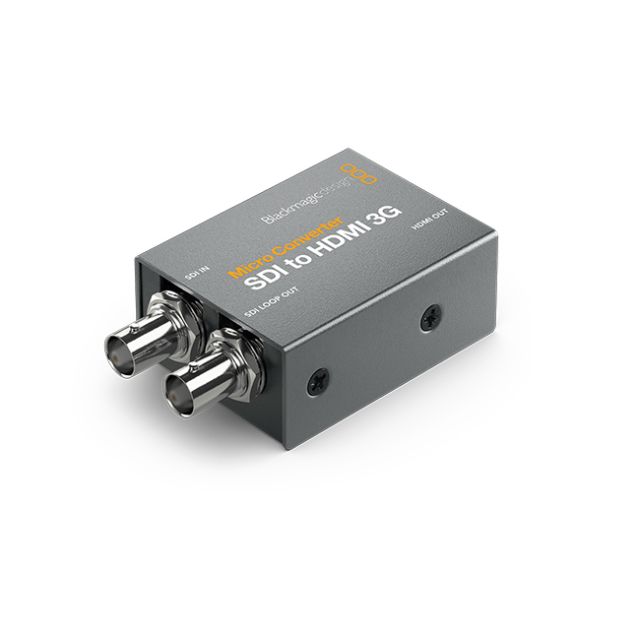

Blackmagic Design Micro Converter - SDI to HDMI 3G with Power Supply
Blackmagic Micro Converter - SDI to HDMI with Power Supply
_x000D_ _x000D_This model has been specifically designed for professional monitoring. It includes a 17 point 3D LUT for color calibrating any monitor, projector or television. You can even output the 3D LUT on the SDI loop output! Plus it supports DCI formats and film rates including 1080p24, 1080p47.95 and 1080p48. Includes 100 to 240V AC power supply with international socket adapters.
_x000D_Â Connections
_x000D_ _x000D_Â
_x000D_ _x000D_SDI Video Inputs
_x000D__x000D_
1 x SD, HD or 3G-SDI.
_x000D__x000D_
SDI Video Outputs
_x000D__x000D_
1 x SDI loop out.
_x000D__x000D_
HDMI Outputs
_x000D__x000D_
HDMI Type A out.
_x000D__x000D_
Multi Rate Support
_x000D__x000D_
Auto detection of SD or HD.
_x000D__x000D_
Updates, Configurations and Power
_x000D__x000D_
USB Type‑C
_x000D_ _x000D_ _x000D_Standards
_x000D_ _x000D_Â
_x000D_ _x000D__x000D_
SDI Video Standards
_x000D__x000D_
525i59.94 NTSC, 625i50 PAL
_x000D__x000D_
HD Video Standards
_x000D__x000D_
720p50, 720p59.94, 720p60
_x000D__x000D_
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
2Kp23.98Â DCI, 2Kp24Â DCI, 2Kp25Â DCI, 2Kp29.97Â DCI, 2Kp30 DCI, 2Kp47.95Â DCI, 2Kp48Â DCI, 2Kp50 DCI, 2Kp59.94Â DCI, 2Kp60 DCI
2KPsF25Â DCI, 2KPsF29.97Â DCI, 2KPsF30 DCI
_x000D_
SDI Compliance
_x000D__x000D_
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M
_x000D__x000D_
SDI Video Rates
_x000D__x000D_
SDI video connections are switchable between standard definition, 720p 1080i, 1080p and DCI high definition
_x000D__x000D_
SDI Color Precision
_x000D__x000D_
4:2:2
_x000D__x000D_
SDI Color Space
_x000D__x000D_
YUV
_x000D__x000D_
SDI Auto Switching
_x000D__x000D_
Automatically detects SD, HD and level A or B for 3G‑SDI.
_x000D__x000D_
HDMI Video Standards
_x000D__x000D_
525i29.97 NTSC, 625i25Â PAL
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60
_x000D_
HDMI Color Precision
_x000D__x000D_
4:2:2. A 17 point LUT can be loaded via the software utility for calibrating or improving monitor color.
_x000D__x000D_
HDMI Color Space
_x000D__x000D_
YUV
_x000D_ _x000D_ _x000D_Â
_x000D_ _x000D_Software
_x000D_ _x000D_Â
_x000D_ _x000D__x000D_
Software Control
_x000D__x000D_
Mac OS Xâ„¢ and Windowsâ„¢ software upgrade via USB.
_x000D_ _x000D_Internal Software Upgrade
_x000D__x000D_
Via USB.
_x000D_ _x000D_ _x000D_Â
_x000D_ _x000D_Operating Systems
_x000D_ _x000D_Â
_x000D_ _x000D__x000D_
Mac 10.14 Mojave,
Mac 10.15 Catalina or later.
_x000D_
Windows 10.Â
_x000D_ _x000D_ _x000D_Â
_x000D_ _x000D_Settings Control
_x000D_ _x000D_Â
_x000D_ _x000D_ _x000D_Via software utility.
_x000D_ _x000D_ _x000D_Â
_x000D_ _x000D_Power Requirements
_x000D_ _x000D_Â
_x000D_ _x000D__x000D_
+5V universal power supply included with international socket adapters for all countries.
_x000D__x000D_
Power Consumption
_x000D__x000D_
1.60 Watts
_x000D__x000D_
Operational Voltage Range
_x000D__x000D_
4.4V to 5.25V DC
_x000D_ _x000D_ _x000D_Â
_x000D_ _x000D_Environmental Specifications
_x000D_ _x000D_Â
_x000D_ _x000D__x000D_
Operating temperature
_x000D__x000D_
0° to 40° C (32° to 104° F)
_x000D__x000D_
Storage temperature
_x000D__x000D_
-20° to 60° C (-4° to 140° F)
_x000D__x000D_
Relative Humidity
_x000D__x000D_
0% to 90% non-condensing
_x000D_ _x000D_ _x000D_Â
_x000D_ _x000D_Physical Specifications
_x000D_ _x000D_What's Included
_x000D_ _x000D_Â
_x000D_ _x000D__x000D_ _x000D_
Micro Converter SDI to HDMI 3G wPSU
_x000D_+5V universal power supply with international socket adapters
_x000D_ _x000D_ _x000D_ _x000D_Â
_x000D_ _x000D_Warranty
_x000D_ _x000D_Â
_x000D_ _x000D__x000D_
3 Year Limited Manufacturer's Warranty.
