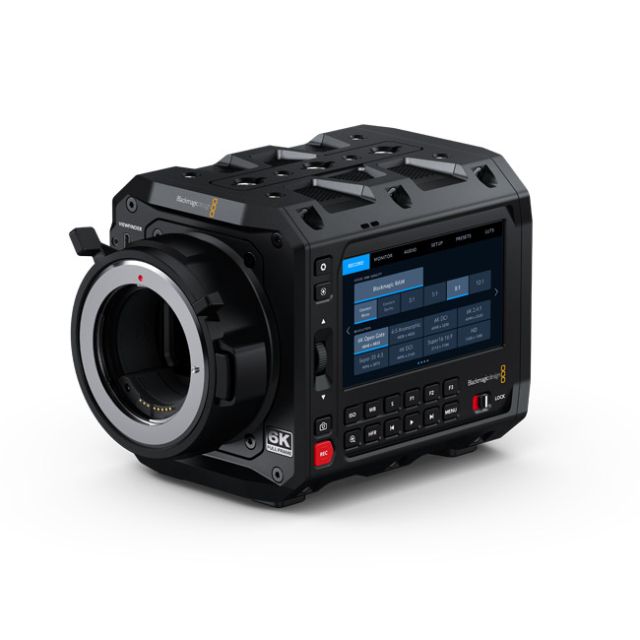

_x000D_Blackmagic Design’s PYXIS 6K is an advanced digital film camera with an incredibly versatile design that lets you build the perfect camera rig for your production. This new model features a 6048 x 4032 full frame HDR sensor with built in optical low pass filter, dual native ISO, dual CFexpress media slots, all in a customizable body with flexible mounting options and side plates. The PYXIS 6K is available in three different models with fixed L-Mount, PL or locking EF lens mounts!
_x000D_Â
_x000D_Camera Features
_x000D_Effective Sensor Size
_x000D_36mm x 24mm (Full Frame)
_x000D_Â
_x000D_Lens Mount
_x000D_EF Mount
_x000D_Â
_x000D_Lens Control
_x000D_Iris and focus on supported lenses.
_x000D_Â
_x000D_Dynamic Range
_x000D_13 Stops.
_x000D_Â
_x000D_Dual Native ISO
_x000D_400 and 3200
_x000D_Â
_x000D_Shooting Resolutions
_x000D_6048 x 4032 (Open Gate 3:2) up to 36 fps
4832 x 4032 (Anamorphic 6:5) up to 36 fps
6048 x 3200 (6K DCI 17:9) up to 48 fps
6048 x 2520 (6K 2.4:1) up to 60 fps
4096 x 3072 (Super 35 4:3) up to 50 fps
4096 x 2160 (4K DCI 17:9) up to 60 fps
2112 x 1184 (Super 16 16:9) up to 100 fps
1920 x 1080 (1080 HD 16:9) up to 120 fps
Â
_x000D_Frame Rates
_x000D_Maximum sensor frame rate dependent on resolution and codec selected. Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported.
_x000D_Off-speed frame rates up to 60 fps in 6K 2.4:1 and 4K DCI 17:9, 100 fps in Super 16 16:9 and 120 fps in 1080HD.
_x000D_Â
_x000D_Focus
_x000D_Auto focus available using compatible lenses.
_x000D_Â
_x000D_Iris Control
_x000D_Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses.
_x000D_Â
_x000D_Screen Dimensions
_x000D_4†1920 x 1080.
_x000D_Â
_x000D_Screen Brightness
_x000D_1500 nits
_x000D_Â
_x000D_Screen Type
_x000D_LCD capacitive touchscreen.
_x000D_Â
_x000D_Metadata Support
_x000D_Automatically populated lens data from electronic EF-Mount lenses. Automatic recording of camera settings, motion sensor data plus slate data such as project, scene number, take and special notes. AÂ 3D LUT can also be embedded in metadata of Blackmagic RAWÂ files.
_x000D_Â
_x000D_Controls
_x000D_Touchscreen menus on 4 inch screen. 1 x Power Switch, 1 x Record Button, 1 x Stills Button, 1 x Scroll Wheel with push, 1 x ISO Button, 1 x White Balance, 1 x Shutter Button, 3 x software configurable Fn buttons, 1 x Focus Button, 1 x IRIS Button, 1 x High Frame Rate (HFR) Button, 1 x Zoom Button, 1 x Menu Button, 1 x Playback Button, 1 x Next Clip Button, 1 x Previous Clip Button, 1 x Lock Switch.
_x000D_Â
_x000D_Timecode Clock
_x000D_Highly accurate timecode clock. Less than 1 frame drift every 8 hours.
_x000D_Â
_x000D_Connections
_x000D_Total Video Inputs
_x000D_None
_x000D_Â
_x000D_Total Video Outputs
_x000D_1 x 12G-SDI up to 2160p60
_x000D_1 x Viewfinder USB-C with power,
data, video and locking connector.
Â
_x000D_Analog Audio Inputs
_x000D_1 x mini XLR analog audio in, switchable between
mic with phantom power support and line level
(up to +14dBu).
1 x 3.5mm Stereo Input.
_x000D_Â
_x000D_Analog Audio Outputs
_x000D_1 x 3.5mm headphone jack.
_x000D_Â
_x000D_Reference Inputs
_x000D_Tri-Sync/Black Burst and Timecode.
_x000D_Â
_x000D_Computer Interface
_x000D_USB Type-C for external drive recording,
PTP camera control and software updates.
Â
_x000D_Ethernet
_x000D_1 x 1Gb/s RJ‑45 connector supporting
_x000D_Â
_x000D_10/100/1000 BASE-T.
_x000D_Audio
_x000D_Microphone
_x000D_Integrated stereo microphone.
_x000D_Built in Speaker
_x000D_1 x mono speaker.
_x000D_Â
_x000D_Media
_x000D_Media
_x000D_2 x CFexpress Type B card slot, 1 x USB-C 3.1 Gen 1 expansion port for external media for Blackmagic RAW and H.264 Proxy Recording.
_x000D_Please click here for a summary of compatible media.
_x000D_Media Format
_x000D_Can format media to ExFAT (Windows/Mac)
_x000D_Â
_x000D_or HFS+ (Mac) file systems.
_x000D_Â
_x000D_Supported Codecs
_x000D_Codecs
_x000D_Blackmagic RAW Constant Bitrate 3:1,
Blackmagic RAW Constant Bitrate 5:1,
Blackmagic RAW Constant Bitrate 8:1,
Blackmagic RAW Constant Bitrate 12:1,
Blackmagic RAW Constant Quality Q0,
Blackmagic RAW Constant Quality Q1,
Blackmagic RAW Constant Quality Q3,
Blackmagic RAW Constant Quality Q5,
H.264 Proxy in 1920 x 1080, 8-bit 4:2:0
Â
_x000D_Control
_x000D_External Control
_x000D_Blackmagic Zoom Demand and Blackmagic Focus Demand for controlling your camera and lens from tripod handles.
_x000D_iPad control, Bluetooth control, USB PTP camera control. External control of some camera settings, focus, iris and zoom with compatible lenses. Camera Control REST API over Ethernet for external control via HTTP when used with REST client applications such as Postman.
_x000D_Storage Features
_x000D_Storage Type
_x000D_1 x CFexpress Type B
_x000D_1 x high speed USB-C expansion port for external media.
_x000D_Recording Formats
_x000D_Blackmagic RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3 and Q5 at 6048 x 4032, 4832 x 4032, 6048 x 3200, 6048 x 2520, 4096 x 3072, 4096 x 2160, 2112 x 1184 and 1920 x 1080 with film, extended video, video dynamic range or custom 3D LUT embedded in metadata.
_x000D_Supports recording optional portrait mode metadata for all resolutions in Blackmagic RAW and H.264Â Proxies.
_x000D_Storage Rates
_x000D_Storage rates based on 30 frames per second.
_x000D_6048 x 4032 (6K Open Gate 3:2)
_x000D_Blackmagic RAW 3:1 - 370 MB/s
Blackmagic RAW 5:1 - 223 MB/s
Blackmagic RAW 8:1 - 140 MB/s
Blackmagic RAW 12:1 - 94 MB/s
Blackmagic RAW Q0 - 278 to 555 MB/s
Blackmagic RAW Q1 - 186 to 444 MB/s
Blackmagic RAW Q3 - 124 to 318 MB/s
Blackmagic RAW Q5 - 75 to 186 MB/s
4832 x 4032 (Anamorphic 6:5)
_x000D_Blackmagic RAW 3:1 - 297 MB/s
Blackmagic RAW 5:1 - 179 MB/s
Blackmagic RAW 8:1 - 112 MB/s
Blackmagic RAW 12:1 - 75 MB/s
Blackmagic RAW Q0 - 223 to 445 MB/s
Blackmagic RAW Q1 - 149 to 356 MB/s
Blackmagic RAW Q3 - 100 to 255 MB/s
Blackmagic RAW Q5 - 60 to 149 MB/s
6048 x 3200 (6K DCI 17:9)
_x000D_Blackmagic RAW 3:1 - 295 MB/s
Blackmagic RAW 5:1 - 177 MB/s
Blackmagic RAW 8:1 - 111 MB/s
Blackmagic RAW 12:1 - 75 MB/s
Blackmagic RAW Q0 - 221 to 441 MB/s
Blackmagic RAW Q1 - 148 to 353 MB/s
Blackmagic RAW Q3 - 99 to 253 MB/s
Blackmagic RAW Q5 - 60 to 148 MB/s
6048 x 2520 (6K 2.4:1)
_x000D_Blackmagic RAW 3:1 - 233 MB/s
Blackmagic RAW 5:1 - 140 MB/s
Blackmagic RAW 8:1 - 88 MB/s
Blackmagic RAW 12:1 - 59 MB/s
Blackmagic RAW Q0 - 175 to 348 MB/s
Blackmagic RAW Q1 - 117 to 279 MB/s
Blackmagic RAW Q3 - 78 to 199 MB/s
Blackmagic RAW Q5 - 47 to 117 MB/s
4096 x 3072 (Super 35 4:3)
_x000D_Blackmagic RAW 3:1 - 192 MB/s
Blackmagic RAW 5:1 - 116 MB/s
Blackmagic RAW 8:1 - 73 MB/s
Blackmagic RAW 12:1 - 49 MB/s
Blackmagic RAW Q0 - 145 to 288 MB/s
Blackmagic RAW Q1 - 97 to 231 MB/s
Blackmagic RAW Q3 - 65 to 165 MB/s
Blackmagic RAW Q5 - 39 to 97 MB/s
4096 x 2160 (4K DCI 17:9)
_x000D_Blackmagic RAW 3:1 - 136 MB/s
Blackmagic RAW 5:1 - 82 MB/s
Blackmagic RAW 8:1 - 52 MB/s
Blackmagic RAW 12:1 - 35 MB/s
Blackmagic RAW Q0 - 102 to 203 MB/s
Blackmagic RAW Q1 - 69 to 163 MB/s
Blackmagic RAW Q3 - 46 to 117 MB/s
Blackmagic RAW Q5 - 28 to 69 MB/s
2112 x 1184 (Super 16 16:9)
_x000D_Blackmagic RAW 3:1 - 40 MB/s
Blackmagic RAW 5:1 - 24 MB/s
Blackmagic RAW 8:1 - 16 MB/s
Blackmagic RAW 12:1 - 11 MB/s
Blackmagic RAW Q0 - 30 to 59 MB/s
Blackmagic RAW Q1 - 21 to 48 MB/s
Blackmagic RAW Q3 - 14 to 34 MB/s
Blackmagic RAW Q5 - 9 to 21 MB/s
1920 x 1080
_x000D_Blackmagic RAW 3:1 - 33 MB/s
Blackmagic RAW 5:1 - 20 MB/s
Blackmagic RAW 8:1 - 13 MB/s
Blackmagic RAW 12:1 - 9 MB/s
Blackmagic RAW Q0 - 25 to 49 MB/s
Blackmagic RAW Q1 - 17 to 40 MB/s
Blackmagic RAW Q3 - 12 to 29 MB/s
Blackmagic RAW Q5 - 8 to 17 MB/s
Constant Quality storage rates quoted are indicative only.
_x000D_Actual storage rates are entirely dependent on image subject matter.
_x000D_Â
_x000D_Software
_x000D_Software Included
_x000D_Blackmagic OS
_x000D_DaVinci Resolve Studio for Mac and Windows including activation key
_x000D_Blackmagic Camera Setup
_x000D_Blackmagic RAW Player
_x000D_Blackmagic RAW QuickLook Plugin
_x000D_Blackmagic RAW SDK
_x000D_Blackmagic RAW Speed Test
_x000D_Â
_x000D_Operating Systems
_x000D_Mac 13.0 Ventura,
Mac 14.0 Sonoma or later.
Windows 10 and 11.
_x000D_Â
_x000D_Power Requirements
_x000D_Power Supply
_x000D_1 x External 12V power supply.
_x000D_External Power Input
_x000D_1 x 2‑pin locking connector.
_x000D_Battery Type
_x000D_BP-U
_x000D_Power
_x000D_11-19.5V
_x000D_Â
_x000D_Accessories
_x000D_Optional Accessories
_x000D_Blackmagic URSA Cine Handle
_x000D_Blackmagic URSA Cine EVF
_x000D_Blackmagic PYXIS Rosette Plate
_x000D_Â
_x000D_Physical Specifications
_x000D_Environmental Specifications
_x000D_Operating Temperature
_x000D_0°to 40°C (32° to 104°F)
_x000D_Storage Temperature
_x000D_-20°to 45°C (-4° to 113°F)
_x000D_Relative Humidity
_x000D_0% to 90% non-condensing
_x000D_What's Included
_x000D_Blackmagic PYXIS 6K
_x000D_Lens turret dust cap
_x000D_PYXIS Standard Plate
_x000D_PYXIS SSD Plate
_x000D_60W power supply with locking connector and international adapters
_x000D_Welcome booklet
_x000D_DaVinci Resolve Studio activation key
_x000D_Warranty
_x000D_Product Warranty
_x000D_12 Month Limited Manufacturer’s Warranty.
