Blackmagic Design PYXIS Monitor Kit
Blackmagic Design PYXIS Monitor Kit
_x000D_Blackmagic PYXIS Monitor is a versatile 5″ HDR touchscreen monitor with full camera control that can be mounted almost anywhere. Blackmagic PYXIS Monitor Kit contains the monitor, foldable sunshade, locking USB cable and PYXIS Mounts to attach to Blackmagic PYXIS and Blackmagic URSA Cine cameras. The design of the PYXIS Mounts with a dovetail means the PYXIS Monitor can be quickly attached and removed from the camera. The mount makes it simple to position the monitor where customers need it without requiring tools to loosen bolts.
_x000D_Â
_x000D_Features
_x000D_Display Size
_x000D_5 inch.
_x000D_Â
_x000D_Display Resolution
_x000D_Full 1920 x 1080.
_x000D_Â
_x000D_Display Type
_x000D_LCD capacitive touchscreen.
_x000D_Â
_x000D_Display Brightness
_x000D_1500 nits.
_x000D_Â
_x000D_Frame Rates
_x000D_Up to 60fps.
_x000D_Â
_x000D_Tally
_x000D_Rear facing LED tally light.
_x000D_Â
_x000D_Accelerometer
_x000D_Automatically rotates image when monitor mounted upside down.
_x000D_Â
_x000D_Control
_x000D_On Screen Controls
_x000D_Tap screen to control Monitor Overlays, Frame Rate, Shutter, Iris, Timecode, ISO, White Balance, Tint, Power, Record Start/Stop, Media, Audio, Focus Zoom, Digital Slate and camera menus.
_x000D_Â
_x000D_Button Controls
_x000D_Includes F1, F2, F3 assignable function buttons to recall preset parameters or toggle functions.
_x000D_Â
_x000D_Function Button Presets
_x000D_- _x000D_
- FPS: Preset Value _x000D_
- Iris: Preset Value _x000D_
- WB: Preset Value _x000D_
- ISO: Preset Value _x000D_
- Shutter: Preset Value _x000D_
Â
_x000D_Function Button Toggle
_x000D_- _x000D_
- Clean Feed _x000D_
- Status Text _x000D_
- Display LUT _x000D_
- Frame Guides _x000D_
- Focus Assist _x000D_
- False Color _x000D_
- Zebra _x000D_
- Grid _x000D_
- Safe Area Guide _x000D_
- Off Speed Rec _x000D_
- Focus Zoom _x000D_
- Focus _x000D_
- Record _x000D_
- Auto White Balance _x000D_
- Color Bars _x000D_
- Playback _x000D_
- False Color + Zebra _x000D_
- OIS _x000D_
- Stream _x000D_
- Still _x000D_
Â
_x000D_Mounting
_x000D_Mounting Points
_x000D_- _x000D_
- 1 x 1/4-20 bottom mounting point with ARRI locating pin pattern. _x000D_
- 2 x M4 bottom mounting points. _x000D_
- 1 x 1/4-20 side mounting point with ARRI locating pin pattern. _x000D_
- 2 x M4 side mounting points. _x000D_
Â
_x000D_Mounting Brackets
_x000D_- _x000D_
- Blackmagic PYXIS Monitor Swivel Mount ‑ included in Kit. _x000D_
- Blackmagic PYXIS Monitor Fixed Mount ‑ included in Kit. _x000D_
- Blackmagic PYXIS Monitor Dovetail Shoe ‑ included in Kit. _x000D_
Â

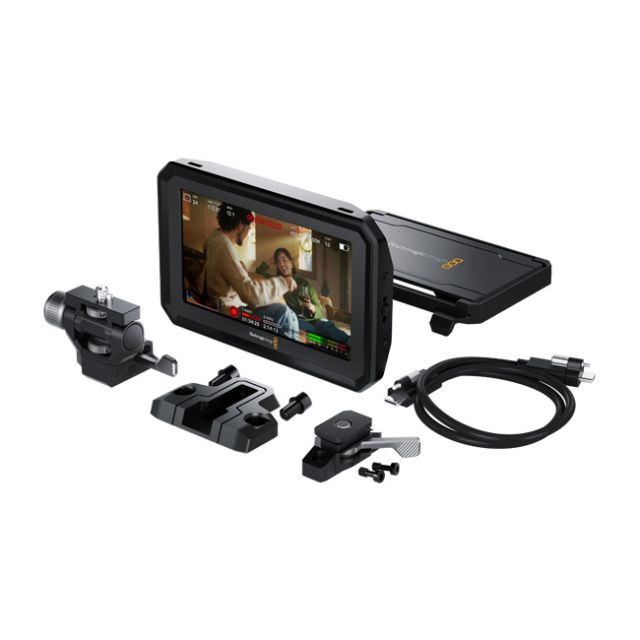

_x000D_What's In The Box
_x000D_- _x000D_
- Blackmagic PYXIS Monitor _x000D_
- Blackmagic PYXIS Clip On Sunshade _x000D_
- Blackmagic PYXIS Monitor Swivel Mount _x000D_
- Blackmagic PYXIS Monitor Fixed Mount and screws _x000D_
- Blackmagic PYXIS Monitor Dovetail Shoe and screws _x000D_
- 1 x USB-C Viewfinder Cable _x000D_
- Welcome wallet with QR code for software download _x000D_
- Blackmagic Design Sticker _x000D_
