Blackmagic Design Teranex Mini - 12G-SDI to Quad SDI
by Blackmagic Design MFG# BMD-CONVNTRM/DB/SDIQD
$605.00

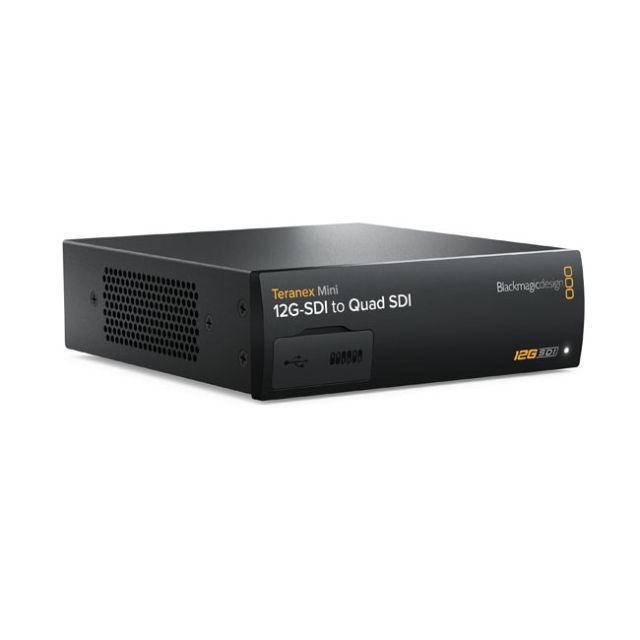

Teranex Mini - 12G-SDI to Quad SDI
_x000D_Convert 12G-SDI to Quad Link SDI so you can connect the latest 12G-SDI Ultra HD equipment with Quad Link Ultra HD equipment. Also allows Ultra HD SDI to be separated into four HD SDI outputs for using regular HD displays for creating video wall style displays. Includes 12G-SDI loop through and support for both Level A and Level B 3G-SDI equipment.
_x000D_Connections:
_x000D_SDI Video Input
_x000D_- _x000D_
- 1 x 12G-SDI SD/HD/2K/4K auto switching. _x000D_
- _x000D_
- _x000D_
-
SDI Video Output
_x000D_- _x000D_
- 4 x 3G-SDI outputs _x000D_
- _x000D_
_x000D_- _x000D_
-
Multi Rate Support
_x000D_- _x000D_
- Automatic switching between SD/HD/2K and 4K _x000D_
- _x000D_
_x000D_- _x000D_
-
Updates and Configuration
_x000D_- _x000D_
- USB or Ethernet _x000D_
- _x000D_
_x000D_- _x000D_
-
Re-Clocking
_x000D_- _x000D_
- Yes _x000D_
- _x000D_
_x000D_
- _x000D_
_x000D_
- _x000D_
_x000D_
- _x000D_
_x000D_
- _x000D_
Standards:
_x000D_- _x000D_
-
SD Format Support
_x000D_- _x000D_
- 525/29.97 NTSC, 625/25 PAL _x000D_
- _x000D_
_x000D_- _x000D_
-
HD Format Support
_x000D_- _x000D_
- 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60. _x000D_
- _x000D_
_x000D_- _x000D_
-
2K Format Support
_x000D_- _x000D_
- 1080PsF23.98, 1080PsF24, 1080PsF25, 1080p23.98, 1080p24, 1080p25. _x000D_
- _x000D_
_x000D_- _x000D_
-
Ultra HD Format Support
_x000D_- _x000D_
- 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p60 _x000D_
- _x000D_
_x000D_- _x000D_
-
4K Format Support
_x000D_- _x000D_
- 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30. _x000D_
- _x000D_
_x000D_- _x000D_
-
SDI Compliance
_x000D_- _x000D_
- SMPTE 259M, 292M, 296M, 372M, 425M, ST-2081 & ST-2082 _x000D_
- _x000D_
_x000D_- _x000D_
-
SDI Video Rates
_x000D_- _x000D_
- SDI video connections are switchable between standard definition, high definition level A and level B 3G-SDI, 6G-SDI and 12G-SDI. _x000D_
- _x000D_
_x000D_- _x000D_
-
SDI Video Sampling
_x000D_- _x000D_
- 4:2:2 and 4:4:4 _x000D_
- _x000D_
_x000D_- _x000D_
-
SDI Audio Sampling
_x000D_- _x000D_
- Television standard sample rate of 48 kHz and 24-bit. _x000D_
- _x000D_
_x000D_- _x000D_
-
SDI Color Space
_x000D_- _x000D_
- YUV & RGB _x000D_
- _x000D_
_x000D_
- _x000D_
_x000D_
- _x000D_
_x000D_
- _x000D_
_x000D_
- _x000D_
_x000D_
- _x000D_
_x000D_
- _x000D_
_x000D_
- _x000D_
_x000D_
- _x000D_
_x000D_
- _x000D_
_x000D_
- _x000D_
Software
_x000D_- _x000D_
-
Software Control
_x000D_- _x000D_
- Mac OS Xâ„¢ and Windowsâ„¢ software upgrade via USB and Ethernet. _x000D_
- _x000D_
_x000D_- _x000D_
-
Internal Software Upgrade
_x000D_- _x000D_
- Via included updater application. _x000D_
- _x000D_
_x000D_- _x000D_
- Settings Control _x000D_
- _x000D_
_x000D_- _x000D_
-
Basic Settings Control
_x000D_- _x000D_
- Mini Switches, USB and Ethernet via free software utility. _x000D_
- _x000D_
_x000D_- _x000D_
-
Optional Front Panel Control
_x000D_- _x000D_
- Front mounted Smart Panel with LCD, rotary knob and six settings buttons. _x000D_
- _x000D_
_x000D_
- _x000D_
_x000D_
- _x000D_
_x000D_
- _x000D_
_x000D_
- _x000D_
Power Requirements
_x000D_- _x000D_
-
Power Supply
_x000D_- _x000D_
- 1 x built-in international AC power supply with IEC C14 inlet. IEC Power cable required. 90 - 240V AC Input. _x000D_
- _x000D_
_x000D_- _x000D_
-
Power Over Ethernet
_x000D_- _x000D_
- Can be powered via 48V DC using PoE+ (power over ethernet). _x000D_
- _x000D_
_x000D_- _x000D_
-
Power Consumption
_x000D_- _x000D_
- 16 Watts _x000D_
- _x000D_
_x000D_- _x000D_
-
Operational Voltage Range
_x000D_- _x000D_
- 90 - 240V AC _x000D_
- _x000D_
_x000D_
- _x000D_
_x000D_
- _x000D_
_x000D_
- _x000D_
_x000D_
- _x000D_
Â
_x000D_Â
_x000D_Â
_x000D_Â
_x000D_Environmental Specifications
_x000D_- _x000D_
-
Operating Temperature
_x000D_- _x000D_
- 0°to 40°C (32° to 104°F) _x000D_
- _x000D_
_x000D_- _x000D_
-
Storage Temperature
_x000D_- _x000D_
- -20°to 60°C (-4° to 140°F) _x000D_
- _x000D_
_x000D_- _x000D_
-
Relative Humidity
_x000D_- _x000D_
- 0% to 90% non-condensing _x000D_
- _x000D_
_x000D_
- _x000D_
_x000D_
- _x000D_
_x000D_
- _x000D_
What's Included:Â Â Â Â Â Â Â Â Â
_x000D_- _x000D_
- Teranex Mini - 12G-SDI to Quad SDI _x000D_
- _x000D_
Â
_x000D_- _x000D_
- Software SD Card _x000D_
- _x000D_
Warranty
_x000D_- _x000D_
- 3 year Limited Manufacturer’s Warranty. _x000D_
- _x000D_
Â
