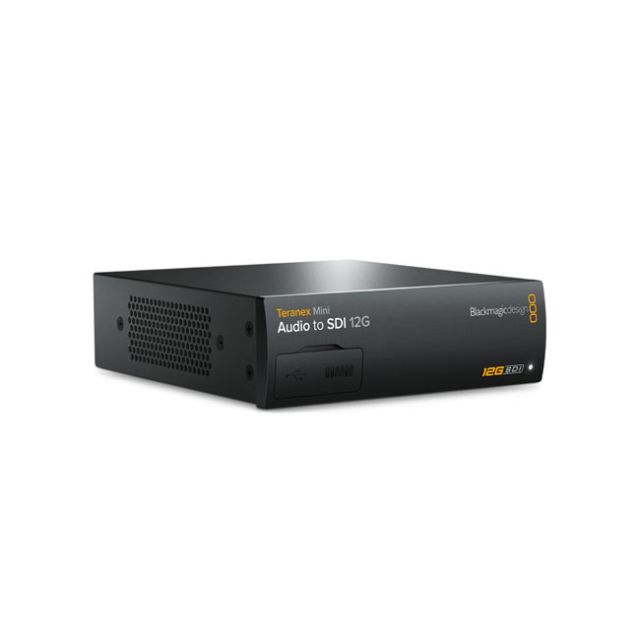

Blackmagic Design Teranex Mini - Audio to SDI 12G
Teranex Mini - Audio to SDI 12G
_x000D_ _x000D_Embed up to 2 channels of audio from balanced analog, optical or HiFi RCA, or embed up to or 4 channels of AES/EBU digital audio into any SD, HD, Ultra HD or DCI 4K SDI video connection. Take audio from devices such as audio mixers, iPods and analog decks and embed it into SDI video connections for use with SDI routers and decks.
_x000D_ _x000D_Connections
_x000D_ _x000D_ _x000D_SDI Video Input
_x000D_1 x 12G-SDI SD/HD/2K/4K auto switching.
_x000D_SDI Video Output
_x000D_1 x 12G-SDI output.
_x000D_Analog Audio Input
_x000D_2 channels professional balanced analog audio via XLR connectors, or 2 channel unbalanced analog line level via RCA connectors. Right XLR can be configured for timecode input.
_x000D_ _x000D_ _x000D_AES/EBU Audio Input
_x000D_4 channels professional 110Ω balanced digital audio via XLR connectors. Right XLR can be configured for timecode input.
_x000D_Optical Audio Input
_x000D_S/PDIF Signal with TOSLINK Connector.
_x000D_ _x000D_ _x000D_Multi Rate Support
_x000D_Automatic switching between SD/HD/2K and 4K.
_x000D_Updates and Configuration
_x000D_USB or Ethernet.
_x000D_Re-Clocking
_x000D_Yes
_x000D_ _x000D_ _x000D_Â
_x000D_
Â
_x000D_Standards
_x000D_Â
_x000D__x000D_
_x000D_
SD Format Support
_x000D__x000D_
525/29.97 NTSC, 525/23.98 NTSC,625/25 PAL.
_x000D__x000D_
HD Format Support
_x000D__x000D_
1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1920 x 1080PsF23.98, 1920 x 1080PsF24, 1920 x 1080p23.98, 1920 x 1080p24, 1920 x 1080p25, 1920 x 1080p29.97, 1920 x 1080p30, 1920 x 1080p50, 1920 x 1080p59.94, 1920 x 1080p60.
_x000D__x000D_
2K Format Support
_x000D__x000D_
2048 x 1080p23.98, 2048 x 1080p24,2048 x 1080p25, 2048 x 1080PsF23.98,2048 x 1080PsF24, 2048 x 1080PsF25.
_x000D__x000D_
4K Format Support
_x000D__x000D_
3840 x 2160p23.98, 3840 x 2160p24,3840 x 2160p25, 3840 x 2160p29.97,3840 x 2160p30, 3840 x 2160p50,3840 x 2160p59.94, 3840 x 2160p60,4096 x 2160p23.98, 4096 x 2160p24,4096 x 2160p25, 4096 x 2160p29.97,4096 x 2160p30, 4096 x 2160p50,4096 x 2160p59.94, 4096 x 2160p60
_x000D_ _x000D__x000D_
_x000D_
SDI Compliance
_x000D__x000D_
SMPTE 292M, SMPTE 259M,SMPTE 296M, SMPTE 372M,SMPTE 424M-B, SMPTE 425M,ITU-R BT.656, ITU-R BT.601,SMPTE ST-2036
_x000D__x000D_
SDI Video Rates
_x000D__x000D_
SDI video connections are auto switching between standard definition SDI, high definition level B 3G-SDI, 6G-SDI and 12G-SDI.
_x000D__x000D_
SDI Video Sampling
_x000D__x000D_
4:2:2, 4:4:4
_x000D__x000D_
SDI Audio Sampling
_x000D__x000D_
Television standard sample rate of 48kHz and 24-bit.
_x000D_ _x000D__x000D_
_x000D_
SDI Color Space
_x000D__x000D_
REC 601, REC 709
_x000D__x000D_
SDI Auto Switching
_x000D__x000D_
Automatically selects between SD, HD, 3G, 6G and 12G-SDI.
_x000D__x000D_
SDI Color Precision
_x000D__x000D_
YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K.
_x000D__x000D_
SDI Color Space
_x000D__x000D_
REC 601, REC 709
_x000D_ _x000D_ _x000D_Â
_x000D_Software
_x000D_Â
_x000D__x000D_
_x000D_
Software Control
_x000D__x000D_
Mac OS Xâ„¢ and Windowsâ„¢ software upgrade via USB and Ethernet.
_x000D_ _x000D__x000D_
_x000D_
Internal Software Upgrade
_x000D__x000D_
Via included updater application.
_x000D_ _x000D_ _x000D_Â
_x000D_Settings Control
_x000D_Â
_x000D__x000D_
_x000D_
Basic Settings Control
_x000D__x000D_
Mini Switches, USB and Ethernet via free software utility
_x000D_ _x000D__x000D_
_x000D_
Optional Front Panel Control
_x000D__x000D_
Front mounted Smart Panel with LCD, rotary knob and six settings buttons
_x000D_ _x000D_ _x000D_Â
_x000D_Power Requirements
_x000D_Â
_x000D__x000D_
_x000D_
Power Supply
_x000D__x000D_
1 x built-in international AC power supply with IEC C14 inlet. IEC Power cable required. 90 - 240V AC Input.
_x000D_ _x000D__x000D_
_x000D_
Power Over Ethernet
_x000D__x000D_
Can be powered via 48V DC using PoE (power over ethernet).
_x000D_ _x000D__x000D_
_x000D_
Power Consumption
_x000D__x000D_
15 Watts
_x000D__x000D_
Operational Voltage Range
_x000D__x000D_
90 - 240V AC
_x000D_ _x000D_ _x000D_Â
_x000D_Physical Specifications
_x000D_Â
_x000D_
Â
_x000D_Environmental Specifications
_x000D_Â
_x000D__x000D_
_x000D_
Operating Temperature
_x000D__x000D_
0°to 40°C (32° to 104°F)
_x000D_ _x000D__x000D_
_x000D_
Storage Temperature
_x000D__x000D_
-20°to 60°C (-4° to 140°F)
_x000D_ _x000D__x000D_
_x000D_
Relative Humidity
_x000D__x000D_
0% to 90% non-condensing
_x000D_ _x000D_ _x000D_Â
_x000D_What's Included
_x000D_Â
_x000D__x000D_
Teranex Mini - Audio to SDI 12G
_x000D__x000D_
Software SD Card
_x000D_ _x000D_Â
_x000D_Warranty
_x000D_Â
_x000D__x000D_
3 year Limited Manufacturer’s Warranty.
