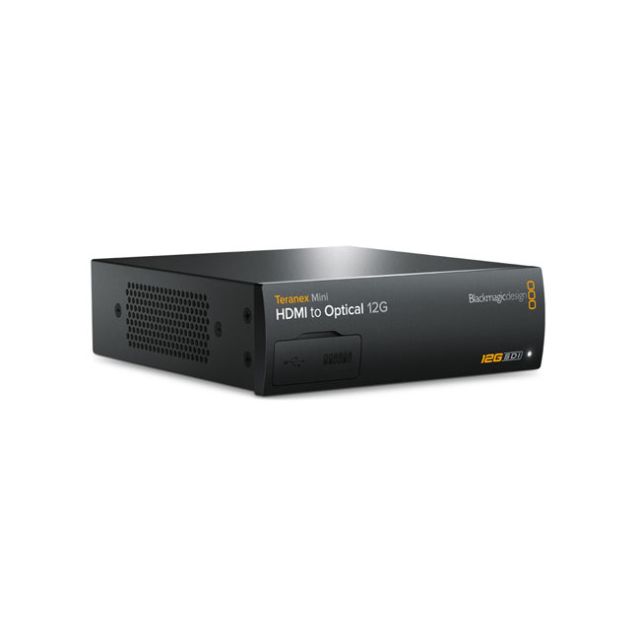

Blackmagic Design Teranex Mini - HDMI to Optical 12G
Blackmagic Teranex Mini - HDMI to Optical 12G (Does not include SFP Optical Module)
_x000D_ _x000D_Convert from HDMI to 12G optical fiber and 12G-SDI. Works with all video formats including SD, HD, 6G and 12G-SDI rates and includes an up converter for converting HD to Ultra HD. Embed audio from balanced analog or AES/EBU and timecode input. Ideal for converting HDMI consumer cameras to SDI, or adding SDI outputs to computers with HDMI connections.
_x000D_ _x000D_Connections
_x000D_HDMI
_x000D_ _x000D_ _x000D_1 x HDMI 2.0 type A connector with support for 2160p60.
_x000D_Optical Fiber Connection
_x000D_LC connector, 1310 nanometer wavelength, single mode.
_x000D_Optical Fiber Video Output
_x000D_Automatically matches the SD, HD and 12G-SDI HDMI video input.
_x000D_SDI Video Output
_x000D_Automatically matches the SD, HD and 12G-SDI HDMI video input.
_x000D_ _x000D_ _x000D_Analog Audio Input
_x000D_2 channels professional balanced analog audio via XLR connectors. Right XLR can be configured for timecode input.
_x000D_AES/EBU Audio Input
_x000D_4 channels professional 110Ω balanced digital audio via XLR connectors. Right XLR can be configured for Timecode input.
_x000D_ _x000D_ _x000D_Multi Rate Support
_x000D_Automatic switching between SD/HD/2K and 4K.
_x000D_Updates and Configuration
_x000D_USB and Ethernet.
_x000D_Re-Clocking
_x000D_Yes
_x000D_ _x000D_ _x000D_Â
_x000D_
Â
_x000D_Standards
_x000D_Â
_x000D__x000D_
_x000D_
SD Format Support
_x000D__x000D_
525/29.97 NTSC, 625/25 PAL.
_x000D__x000D_
HD Format Support
_x000D__x000D_
1280 x 720p50, 1280 x 720p59.94,1280 x 720p60, 1920 x 1080i50,1920 x 1080i59.94, 1920 x 1080i60,1920 x 1080PsF23.98,1920 x 1080PsF24, 1920 x 1080p23.98,1920 x 1080p24, 1920 x 1080p25,1920 x 1080p29.97, 1920 x 1080p30,1920 x 1080p50, 1920 x 1080p59.94,1920 x 1080p60.
_x000D__x000D_
2K Format Support
_x000D__x000D_
2048 x 1080PsF23.98,2048 x 1080PsF24, 2048 x 1080PsF25,2048 x 1080p23.98, 2048 x 1080p24,2048 x 1080p25.
_x000D__x000D_
4K Format Support
_x000D__x000D_
3840 x 2160p23.98, 3840 x 2160p24,3840 x 2160p25, 3840 x 2160p29.97,3840 x 2160p30, 3840 x 2160p50,3840 x 2160p59.94, 3840 x 2160p60,4096 x 2160p23.98, 4096 x 2160p24,4096 x 2160p25, 4096 x 2160p29.97,4096 x 2160p30, 4096 x 2160p50,4096 x 2160p59.94, 4096 x 2160p60.
_x000D_ _x000D__x000D_
_x000D_
SDI Compliance
_x000D__x000D_
SMPTE 292M, SMPTE 259M,SMPTE 296M, SMPTE 372M,SMPTE 424M-B, SMPTE 425M,SMPTE 297M for Optical Fiber SDI.
_x000D__x000D_
SDI Video Rates
_x000D__x000D_
SDI video connections are switchable between standard definition, high definition level B 3G-SDI, 6G-SDI and 12G-SDI.
_x000D__x000D_
SDI Video Sampling
_x000D__x000D_
4:2:2 and 4:4:4.
_x000D__x000D_
SDI Audio Sampling
_x000D__x000D_
Television standard sample rate of 48 kHz and 24-bit.
_x000D__x000D_
SDI Color Precision
_x000D__x000D_
YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K.
_x000D__x000D_
SDI Color Space
_x000D__x000D_
REC 601, REC 709
_x000D_ _x000D__x000D_
_x000D_
HDMI Format Support
_x000D__x000D_
525/29.97 NTSC, 625/25 PAL,1280 x 720p50, 1280 x 720p59.94,1280 x 720p60, 1920 x 1080i50,1920 x 1080i59.94, 1920 x 1080i60,1920 x 1080p23.98, 1920 x 1080p24,1920 x 1080p25, 1920 x 1080p29.97,1920 x 1080p30, 1920 x 1080p50,1920 x 1080p59.94, 1920 x 1080p60,2048 x 1080p23.98, 2048 x 1080p24,2048 x 1080p25, 3840 x 2160p23.98,3840 x 2160p24, 3840 x 2160p25,3840 x 2160p29.97, 3840 x 2160p30,3840 x 2160p50, 3840 x 2160p59.94,3840 x 2160p60, 4096 x 2160p23.98,4096 x 2160p24, 4096 x 2160p25,4096 x 2160p29.97, 4096 x 2160p30,4096 x 2160p50, 4096 x 2160p59.94,4096 x 2160p60.
_x000D__x000D_
HDMI Color Space
_x000D__x000D_
REC 601, REC 709
_x000D__x000D_
HDMI Color Precision
_x000D__x000D_
YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K.
_x000D__x000D_
Copy Protection
_x000D__x000D_
HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
_x000D_ _x000D_ _x000D_Â
_x000D_Software
_x000D_Â
_x000D__x000D_
_x000D_
Software Control
_x000D__x000D_
Mac OS Xâ„¢ and Windowsâ„¢ software upgrade via USB or Ethernet.
_x000D_ _x000D__x000D_
_x000D_
Internal Software Upgrade
_x000D__x000D_
Via included updater application.
_x000D_ _x000D_ _x000D_Â
_x000D_Settings Control
_x000D_Â
_x000D__x000D_
_x000D_
Basic Settings Control
_x000D__x000D_
Mini Switches, USB and Ethernet via free software utility.
_x000D_ _x000D__x000D_
_x000D_
Optional Front Panel Control
_x000D__x000D_
Front mounted Smart Panel with LCD, rotary knob and six settings buttons.
_x000D_ _x000D_ _x000D_Â
_x000D_Power Requirements
_x000D_Â
_x000D__x000D_
_x000D_
Power Supply
_x000D__x000D_
1 x built-in international AC power supply with IEC C14 inlet. IEC Power cable required. 90 - 240V AC Input.
_x000D_ _x000D__x000D_
_x000D_
Power Over Ethernet
_x000D__x000D_
Can be powered via 48V DC using PoE (power over ethernet).
_x000D_ _x000D__x000D_
_x000D_
Power Consumption
_x000D__x000D_
15 Watts
_x000D__x000D_
Operational Voltage Range
_x000D__x000D_
90 - 240V AC
_x000D_ _x000D_ _x000D_Â
_x000D_Physical Specifications
_x000D_Â
_x000D_
Â
_x000D_Environmental Specifications
_x000D_Â
_x000D__x000D_
_x000D_
Operating Temperature
_x000D__x000D_
0°to 40°C (32° to 104°F)
_x000D_ _x000D__x000D_
_x000D_
Storage Temperature
_x000D__x000D_
-20° to 60°C (-4° to 140°F)
_x000D_ _x000D__x000D_
_x000D_
Relative Humidity
_x000D__x000D_
0% to 90% non-condensing
_x000D_ _x000D_ _x000D_Â
_x000D_What's Included
_x000D_Â
_x000D__x000D_
Teranex Mini - HDMI to Optical 12G
_x000D__x000D_
Software SD Card
_x000D_ _x000D_Â
_x000D_Warranty
_x000D_Â
_x000D__x000D_
3 year Limited Manufacturer’s Warranty.
