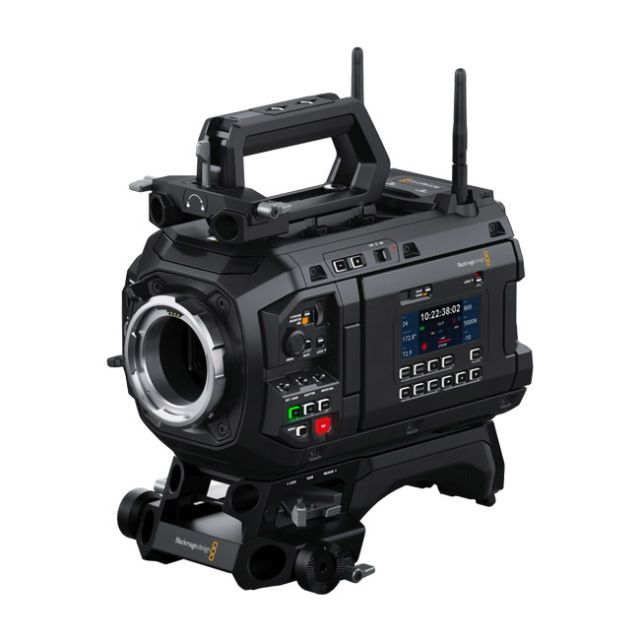

Blackmagic Design URSA Cine 12K
Blackmagic Design URSA Cine 12K
_x000D_Blackmagic Design’s URSA Cine 12K is a revolution in digital film with a new large format RGBW 36 x 24mm sensor with larger photo-sites for 16 stops of dynamic range. This revolutionary model also includes interchangeable lens mounts, a dedicated assist station with a second 5″ HDR LCD touchscreen, built in ND filters and industry standard Lemo and Fischer connections. Blackmagic URSA Cine comes with a massive 8TB of removable high performance media storage built in and also includes high speed 10G Ethernet and Wifi for fast media upload and syncing to Blackmagic Cloud!
_x000D_Â
_x000D_Camera Features
_x000D_Effective Sensor Size
_x000D_35.64mm x 23.32mm (Large Format)
_x000D_Â
_x000D_Lens Mount
_x000D_PL mount. Interchangeable with URSA Cine lockable EF mount included.
_x000D_Lens Control
_x000D_Active EF and PL mount lens control with compatible lenses.
_x000D_Â
_x000D_Dynamic Range
_x000D_16 Stops
_x000D_Â
_x000D_Shooting Resolutions
_x000D_12,288 x 8040 (12K 3:2 open gate)
12,288 x 6480 (12K 16:9)
12,288 x 6912 (12K 17:9)
12,288 x 5112 (12K 2.4:1)
9648 x 8040 (12K 6:5)
9408 x 6264 (9K 3:2)
8688 x 4896 (9K 16:9)
9312 x 4896 (9K 17:9)
9312 x 3864 (9K 2.4:1)
7680 x 6408 (9K 6:5)
8192 x 5360 (8K 3:2 open gate)
8192 x 4608 (8K 16:9)
8192 x 4320 (8K 17:9)
8192 x 3408 (8K 2.4:1)
6432 x 5360 (8K 6:5)
4096 x 2680 (4K 3:2 open gate)
4096 x 2304 (4K 16:9)
4096 x 2160 (4K 17:9)
4096 x 1704 (4K 2.4:1)
3216 x 2680 (4K 6:5)
Â
_x000D_Frame Rates
_x000D_Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported. Maximum sensor frame rate dependent on resolution selected.
_x000D_Â
_x000D_High Speed Frame Rates
_x000D_12K 3:2 open gate up to 80 fps
_x000D_12K 17:9 up to 100 fps
_x000D_12K 2.4:1 up to 120 fps
_x000D_9K 3:2 Super 35 up to 100 fps
_x000D_8K / 4K 3:2 open gate up to 144Â fps
_x000D_8K / 4K 2.4:1 up to 224Â fps
_x000D_Â
_x000D_Built in ND Filters
_x000D_Button activated ND filters with clear, 2-stop, 4-stop and 6-stop IR NDÂ filters.
_x000D_Â
_x000D_Focus
_x000D_Focus button turns on peaking, auto focus available using compatible lenses.
_x000D_Â
_x000D_Iris Control
_x000D_Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses so no pixel is clipped in film mode. Scene average auto exposure in video mode.
_x000D_Â
_x000D_Screens
_x000D_2 x Monitoring Screens
_x000D_1 x Camera Status Screen
_x000D_Â
_x000D_Monitoring Screen Dimensions
_x000D_5 inch.
_x000D_Â
_x000D_Monitoring Screen Resolution
_x000D_1920px x 1080px
_x000D_Â
_x000D_Monitoring Screen Brightness
_x000D_1500 nits.
_x000D_Â
_x000D_Monitoring Screen Type
_x000D_LCD capacitive touchscreen
_x000D_Â
_x000D_Metadata Support
_x000D_Automatically populated lens data from i/Technology with compatible PL, LPL lenses and electronic EF lenses when using optional EF lens mount. Automatic recording of camera settings and slate data such as project, scene number, take and special notes.
_x000D_Â
_x000D_Controls
_x000D_Touchscreen menus on 5 inch screen. Push buttons for other controls. 7 assignable shortcut keys plus 6 assignable shortcut keys on URSA Cine EVF.
_x000D_Â
_x000D_Timecode Clock
_x000D_Highly accurate timecode clock. Less than 1Â frame drift every 8Â hours.
_x000D_Connections
_x000D_Â
_x000D_Total Video Outputs
_x000D_2
_x000D_Â
_x000D_SDI Rates
_x000D_1.5G, 3G, 6G, 12G.
_x000D_Â
_x000D_Analog Audio Inputs
_x000D_2 x XLR analog switchable between mic, line and AES audio. Phantom power support.
_x000D_Â
_x000D_Analog Audio Outputs
_x000D_1 x 3.5mm headphone jack
_x000D_Â
_x000D_Reference Inputs
_x000D_Tri-Sync/Black Burst and Timecode.
_x000D_Â
_x000D_Viewfinder
_x000D_1 x Viewfinder USB-C with power, data, video and locking connector.
_x000D_Â
_x000D_Accessories
_x000D_1 x 7-pin Lemo ‘EXT’ for power out, serial communication, and run/stop.
_x000D_1 x 3-pin Fischer ‘RS’ for power out and run/stop.
_x000D_Â
_x000D_Computer Interface
_x000D_2 x USB Type-C side expansion ports for camera accessories.
_x000D_Software updates using rear side USB-C.
_x000D_Â
_x000D_Ethernet
_x000D_1 x 10Gb/s RJ‑45 connector supporting 10/100/1000/10G BASE-T for Web Media Management, Blackmagic Cloud uploads, camera control and streaming.
_x000D_Â
_x000D_Audio
_x000D_Microphone
_x000D_Integrated stereo microphone.
_x000D_Â
_x000D_Built in Speaker
_x000D_1 x mono speaker.
_x000D_Â
_x000D_Standards
_x000D_SD Video Standards
_x000D_None
_x000D_Â
_x000D_HD Video Standards
_x000D_1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
_x000D_Â
_x000D_Ultra HD Video Standards
_x000D_2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
_x000D_Â
_x000D_SDI Compliance
_x000D_SMPTE 292M, SMPTE 424 Level B, SMPTE 2081-1, SMPTE 2082-1
_x000D_Â
_x000D_SDI Audio Sampling
_x000D_48 kHz and 24 bit
_x000D_Â
_x000D_Media
_x000D_Media
_x000D_1 x Blackmagic Media Module.
_x000D_Â
_x000D_Media Format
_x000D_Blackmagic
_x000D_Â
_x000D_Supported Codecs
_x000D_Codecs
_x000D_Blackmagic RAW Constant Bitrate 3:1,
Blackmagic RAW Constant Bitrate 5:1,
Blackmagic RAW Constant Bitrate 8:1,
Blackmagic RAW Constant Bitrate 12:1,
Blackmagic RAW Constant Bitrate 18:1,
Blackmagic RAW Constant Quality Q0,
Blackmagic RAW Constant Quality Q1,
Blackmagic RAW Constant Quality Q3,
Blackmagic RAW Constant Quality Q5.
H.264 Proxy in 1920 x 1080, 8-bit 4:2:0
_x000D_Â
_x000D_Control
_x000D_External Control
_x000D_Blackmagic URSA Cine EVF can trigger record plus camera functions assigned to the VF1, VF2, VF3, Zoom, Exp and Record buttons. External Camera Control supported using REST API over Ethernet, WiFi or serial communication via the 7-pin Lemo connector. Run / Stop supported via 3-pin Fischer and 7-pin Lemo connector. Blackmagic iPad control and Bluetooth control supported. Blackmagic Zoom Demand and Blackmagic Focus Demand for controlling camera and compatible lenses.
_x000D_Streaming
_x000D_Direct Streaming
_x000D_Supports Secure Reliable Transport (SRT) and Real Time Messaging Protocol (RTMP) local live streaming using a Ethernet or WiFi, or global live streaming using an internet connection via Ethernet, WiFi or USB‑C cellular data.
_x000D_Â
_x000D_Network Management
_x000D_NTP
_x000D_Network time protocol support allows you to sync the time on your camera, whenever connected to a network with any NTP server of your choice.
_x000D_Â
_x000D_FTP
_x000D_Download files from any drive attached to your camera using FTP.
_x000D_Web Media Manager
_x000D_Using a browser connected over Ethernet, web media manager allows you to access, browse, download and delete files from any drive connected to the camera.
_x000D_Â
_x000D_SMB
_x000D_File sharing using SMB
_x000D_Â
_x000D_Storage Features
_x000D_Storage Type
_x000D_1 x Blackmagic Media Module 8TB
_x000D_Storage Rates
_x000D_Storage rates based on 24 frames per second.
_x000D_12K - 12,288 x 8040
_x000D_Blackmagic RAW 3:1 - 1,194 MB/s
Blackmagic RAW 8:1 - 448 MB/s
Blackmagic RAW 12:1 - 298 MB/s
Blackmagic RAW 18:1 - 199 MB/s
Blackmagic RAW Q0 - 298 to 1,432 MB/s
Blackmagic RAW Q1 - 179 to 716 MB/s
Blackmagic RAW Q3 - 119 to 298 MB/s
Blackmagic RAW Q5 - 90 to 224 MB/s
9K - 9408 x 6264
_x000D_Blackmagic RAW 3:1 - 713 MB/s
Blackmagic RAW 8:1 - 268 MB/s
Blackmagic RAW 12:1 - 178 MB/s
Blackmagic RAW 18:1 - 119 MB/s
Blackmagic RAW Q0 - 178 to 856 MB/s
Blackmagic RAW Q1 - 107 to 428 MB/s
Blackmagic RAW Q3 - 71 to 178 MB/s
Blackmagic RAW Q5 - 54 to 134 MB/s
8K - 8192 x 5360
_x000D_Blackmagic RAW 3:1 - 533 MB/s
Blackmagic RAW 5:1 - 320 MB/s
Blackmagic RAW 8:1 - 200 MB/s
Blackmagic RAW 12:1 - 133 MB/s
Blackmagic RAW Q0 - 133 to 319 MB/s
Blackmagic RAW Q1 - 80 to 200 MB/s
Blackmagic RAW Q3 - 53 to 133 MB/s
Blackmagic RAW Q5 - 40 to 100 MB/s
4K - 4096 x 26896 x 2680
_x000D_Blackmagic RAW 3:1 - 135 MB/s
Blackmagic RAW 4:1 - 101 MB/s
Blackmagic RAW 5:1 - 81 MB/s
Blackmagic RAW 6:1 - 68 MB/s
Blackmagic RAW Q0 - 34 to 81 MB/s
Blackmagic RAW Q1 - 20 to 50 MB/s
Blackmagic RAW Q3 - 13 to 34 MB/s
Blackmagic RAW Q5 - 10 to 25 MB/s
Â
_x000D_Recording Formats
_x000D_Blackmagic RAWÂ 3:1, 8:1, 12:1, 18:1, Q0, Q1, Q3 and Q5 at full sensor width or height resolutions:
_x000D_[12,288 x 8,040], [12,288 x 6,912], [12,288 x 6,480], [12,288 x 5,112] and [9,648 x 8,040] with film, extended video or video dynamic range or custom 3D LUT embedded in metadata plus simultaneous recording of H.264 1920 x 1080 Proxies.
_x000D_Blackmagic RAWÂ 3:1, 8:1, 12:1, 18:1, Q0, Q1, Q3 and Q5 at Super 35 windowed sensor resolutions:
_x000D_[9,408 x 6,264], [8,688 x 4,896], [9,312 x 4,896], [9,312 x 3,864] and [7,680 x 6,408]
_x000D_with film, extended video or video dynamic range or custom 3D LUT embedded in metadata plus simultaneous recording of H.264 1920 x 1080 Proxies.
_x000D_Blackmagic RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3 and Q5 at full sensor width or height scaled to:
_x000D_[8,192 x 5,360], [8,192 x 4,608], [8,192 x 4,320], [8,192 x 3,408] and [6,432 x 5,360]
_x000D_with film, extended video or video dynamic range or custom 3D LUT embedded in metadata plus simultaneous recording of H.264 1920 x 1080 Proxies.
_x000D_Blackmagic RAWÂ 3:1, 4:1, 5:1, 6:1, Q0, Q1, Q3 and Q5 at full sensor width or height scaled to:
_x000D_[4,096 x 2,680], [4,096 x 2,304], [4,096 x 2,160], [4,096 x 1,704] and [3,216 x 2,680]
_x000D_with film, extended video or video dynamic range or custom 3D LUT embedded in metadata plus simultaneous recording of H.264 1920 x 1080 Proxies.
_x000D_Â
_x000D_Constant Quality Rates for 12K and 9K are:Â Q0 12:1 - 2.5:1, Q1 20:1 - 5:1, Q3 30:1 - 12:1, Q5 40:1 - 16:1
_x000D_Â
_x000D_Constant Quality Rates for 8K and 4K are:Â Q0 12:1 - 5:1, Q1 20:1 - 8:1, Q3 30:1 - 12:1, Q5 40:1 - 16:1
_x000D_Â
_x000D_Actual storage rates are dependent on image subject matter.
_x000D_Â
_x000D_Software
_x000D_Software Included
_x000D_URSA Cine Blackmagic OS
_x000D_DaVinci Resolve Studio for Mac and Windows including activation key
_x000D_Blackmagic Camera Setup
_x000D_Blackmagic RAW Player
_x000D_Blackmagic RAW QuickLook Plugin
_x000D_Blackmagic RAW SDK
_x000D_Â
_x000D_Operating Systems
_x000D_Mac 13.0 Ventura,
Mac 14.0 Sonoma or later.
Â
_x000D_Windows 10 and 11.
_x000D_Â
_x000D_Power Requirements
_x000D_Power Supply
_x000D_+24V DC external power supply 100 - 240 AC 50/60Hz compatible with IEC C14Â socket.
_x000D_Molex connector for rear battery plate.
_x000D_Â
_x000D_External Power Input
_x000D_1 x 8 pin socket for external power or battery use.
_x000D_B-Mount battery plate.
_x000D_Â
_x000D_Power Output
_x000D_1 x 7-pin Lemo with +12V DV or +24V DC power output depending on camera supply.
_x000D_Â
_x000D_1 x 3-pin Fischer with +12V DV or +24V DC power output depending on camera supply.
_x000D_Â
_x000D_B-Mount battery plate with 2-pin Lemo +12V regulated output from camera.
_x000D_Accessories
_x000D_Â
_x000D_Optional Accessories
_x000D_Blackmagic URSA Cine EVF
_x000D_Blackmagic URSA Cine Mount PL
_x000D_Blackmagic URSA Cine Mount LPL
_x000D_Blackmagic URSA Cine Mount EF
_x000D_Blackmagic URSA Cine Mount Shims
_x000D_Blackmagic URSA Cine Battery Plate B Mnt
_x000D_Blackmagic URSA Cine Battery Plate Gold
_x000D_Blackmagic URSA Cine Battery Plate VLock
_x000D_Blackmagic URSA Cine Baseplate 15
_x000D_Blackmagic URSA Cine Baseplate 19
_x000D_Blackmagic URSA Cine Handle
_x000D_Blackmagic URSA Cine Grips
_x000D_Blackmagic URSA Cine 5" LCD Sunshade
_x000D_Blackmagic Media Dock
_x000D_Blackmagic Media Module 8TB
_x000D_Blackmagic Media Module CF
_x000D_Blackmagic Video Assist 7†12G HDR
_x000D_Blackmagic Video Assist 5†12G HDR
_x000D_Blackmagic Video Assist 7†3G
_x000D_Blackmagic Video Assist 5†3G
_x000D_ATEM Streaming Bridge
_x000D_Â
_x000D_Physical Specifications
_x000D_Â
_x000D_Environmental Specifications
_x000D_Operating Temperature: 0° to 40°C (32° to 104°F)
_x000D_Storage Temperature: -20° to 45°C (-4° to 113°F)
_x000D_Relative Humidity: 0% to 90% non-condensing
_x000D_Â
_x000D_What's Included
_x000D_Blackmagic URSA Cine 12K Body
_x000D_Blackmagic URSA Cine Mount PL (installed)
_x000D_Blackmagic URSA Cine Mount EF and screws
_x000D_Blackmagic Media Module 8TB
_x000D_URSA Cine Handle and bolts
_x000D_URSA Cine Top Rod Mount 15
_x000D_URSA Cine Baseplate 19
_x000D_Plastic folding screen hood for 5†assist station
_x000D_URSA Cine Battery Plate B Mount
_x000D_WiFi Antennas
_x000D_URSA Cine PL Body Cap
_x000D_URSA Cine EF Body Cap
_x000D_Rubber caps for connectors
_x000D_+24V DC 250W power supply
_x000D_DaVinci Resolve Studio with activation key
_x000D_Welcome wallet with QR code for software download
_x000D_Blackmagic Sticker
_x000D_Custom foamed Pelican 1510 case
_x000D_Â
_x000D_Warranty
_x000D_12 Month Limited Manufacturer's Warranty.
