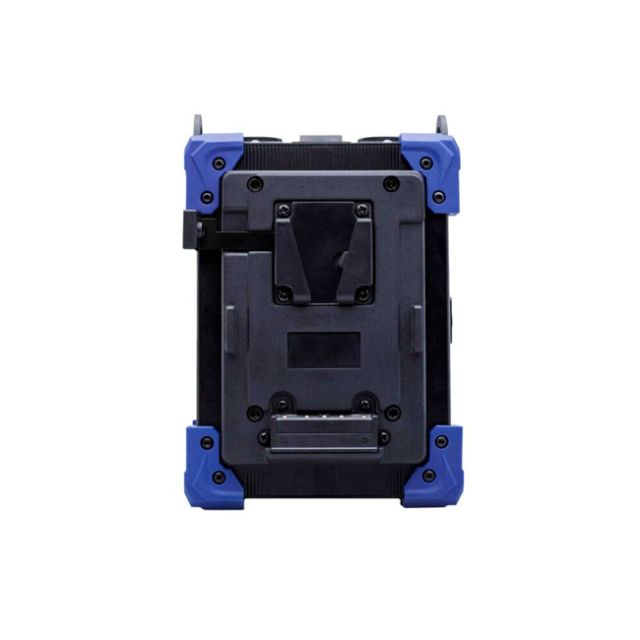

Fxlion SKYTWO €€œ 48V / 24V DC Output Adapter (V-Mount)

Fxlion SKYTWO 48V / 24V DC Output Adapter (V-Mount)

by Fxlion MFG# Fxlion-SKYTWO
$723.80

Fxlion SKYTWO 48V / 24V DC Output Adapter (V-Mount)

_x000D_

The SKY TWO offers you 24V and 48V powering options. You can either use two 14.8V, two 26V or one of each at the same time (Bi-Voltage). Each combination of batteries will offer you a different maximum output. The SKY TWO 24V/48V has a compact design and rubber corners for maximum protection. The package includes a steel wire rope to hang the SKY TWO on a stand or mount it directly to a light fixture.

_x000D_



_x000D_

The SKY TWO offers you 24V and 48V powering options with 14.8V or 26V V-mount batteries. You can either use two 14.8V, two 26V or one of each at the same time (Bi-Voltage). The SKY TWO 24V/48V auto identifies the incoming voltage of your batteries. Each combination of batteries will offer you different maximum outputs (see technical info below). The SKY TWO can for example power your 24V Arri cine camera or even big 48V LED lights. The maximum output can be achieved with two 26V batteries, giving you a total output of 48V with 480W. The SKY TWO has a compact design and rubber corners for maximum protection. The package includes a steel wire rope to hang the device on a stand or mount it directly to a light fixture.

_x000D_
    _x000D_
  • Input: 14.8V or 26V Battery
    • _x000D_
  • 24V/48V DC Output
    • _x000D_
  • compact size
    • _x000D_
  • protective rubber corners
    • _x000D_
  • steel wire rope for mounting
    • _x000D_
_x000D_



_x000D_

DC Input:

_x000D_

14.8V*2 -> DC output: 24V/360W(max) or 48V/400W(max)

_x000D_

26V*2 -> DC output: 24V/360W(max) or 48V/480W(max)

_x000D_

14.8V*1+26V*1 -> DC output: 24V/360W(max) or 48V/400W(max)

_x000D_

Dimensions: 116(L)mm*96(W)mm*168(H)mm

_x000D_

Weight: 1023g

_x000D_



_x000D_

24V Output: 3-Pin Female XLR socket

_x000D_

48V Output: 3-Pin Female XLR socket
