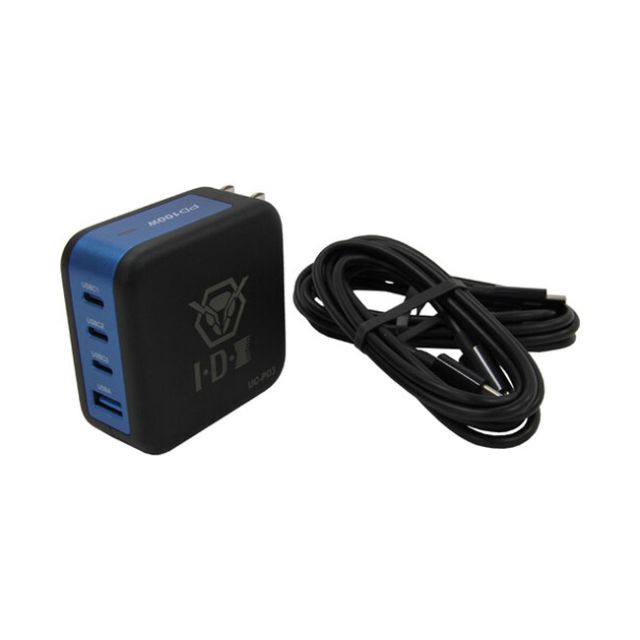

IDX 3 Channel USB Power Delivery Charger

IDX 3 Channel USB Power Delivery Charger

IDX System Technologies is pleased to introduce the UC-PD3 3ch USB Power Delivery charger. IDX expands its lineup of USB PD (Power Delivery) chargers, with the addition of the UC-PD3 with its built-in USB PD 3 ports. The UC-PD3 USB-C ports have been expanded from 2 to 3, to support users’ cases, not only for charging IDX USB-PD batteries, but also charging the user’s smartphone and PC in use at the same time. With a Maximum USB-C port output of power 100W (which is lower than the 130W of the UC-PD2), IDX believes that extending the number of USB-C ports will improve conven- ience. The addition of the UC-PD3, (along with the UC-PD1 and UC-PD2) provides IDX users a com- plete line of USB-PD portable battery chargers for convenient location and travel camera charging and a power supply for other devices, such as tablets, smartphones, cameras and other AV/ IT gear equipped with a USB-C terminal.



Main Features

_x000D_
• USB PD Compatible
  · 3x Total USB-C Ports, 1x USB-A Port · 100W power output
  · Travel-Friendly
_x000D_



Product Specifications

_x000D_
• AC Input: AC 100 ~ 240V (50Hz/60Hz)
_x000D_
• Output
_x000D_
• USB C port1/2:DC5V/3A, DC9V/3A, DC12V/3A, DC15V/3A,           DC20V/5A (Max. 100W)
_x000D_
• USB C port3:DC5V/3A, DC9V/2.22A, DC12V/1.67A (Max.           20W)
            · USB A:DC4.5V/5A, DC5V/4.5A, DC9V/2A, DC12V/1.5A (Max.          22.5W)
_x000D_
• DC Connector: USB Type-C 3 ports, USB Type-A 1 port
  · Protection: Over-charge, over-current, short-circuit protection
  · Accessories: USB Type-C cable (5A compatible) length 1.5m 2pcs
  · Dimensions: 65(W) × 65(H) × 32.4(D)mm/ 2.56(W) x 2.56(H) x 1.26(D) in
_x000D_
• Weight: 210g/ 0.46lbs
