IDX 4-Channel Simultaneous Quick Charger with LCD Display

IDX 4-Channel Simultaneous Quick Charger with LCD Display

_x000D_

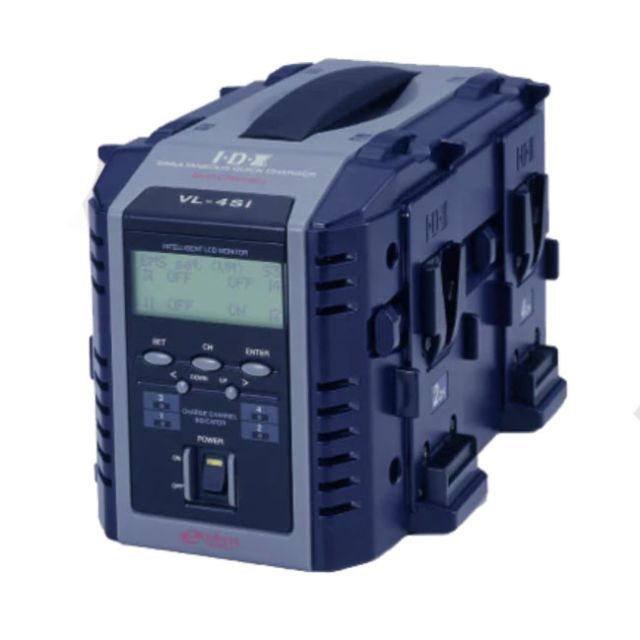

The VL-4Si is a fully simultaneous, high speed 4-channel charger. To monitor the charge status of each individual battery, an LCD display and control panel is located on the front of the unit. Together with IDX’s Battery Management System software, the VL-4Si via PC interface provides detailed battery data to help manage and extend the life of a customer’s battery inventory. This is ideal for network operations and rental facilities.

_x000D_



_x000D_

Tech Specs

_x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_

_x000D_ Input Voltage: _x000D_	_x000D_ AC 100-240V 50/60Hz _x000D_
_x000D_ Power Consumption: _x000D_	_x000D_ 310VA max _x000D_
_x000D_ Quick Charge Current: _x000D_	_x000D_ Li-ion: _x000D_ 2.3A (4 channels), 3A (1-3 channels) _x000D_ Ni-CD/Ni-MH: _x000D_ 1.9A (1-4 channels) _x000D_
_x000D_ Quick Charge System: _x000D_	_x000D_ Li-ion: Constant current/Constant voltage _x000D_ Ni-CD/Ni-MH: Constant current _x000D_
_x000D_ Pre-Charge Current: _x000D_	_x000D_ 360mA approx _x000D_
_x000D_ Operating Temperature: _x000D_	_x000D_ 14°F ~ 104°F _x000D_
_x000D_ Dimensions: _x000D_	_x000D_ 6.14(W) x 6.02(H) x 11.34(D) inches _x000D_
_x000D_ Weight: _x000D_	_x000D_ 7.05 lbs approx. _x000D_
_x000D_ Included Accessories: _x000D_	_x000D_ Battery Management Software, (1) USB cable _x000D_
