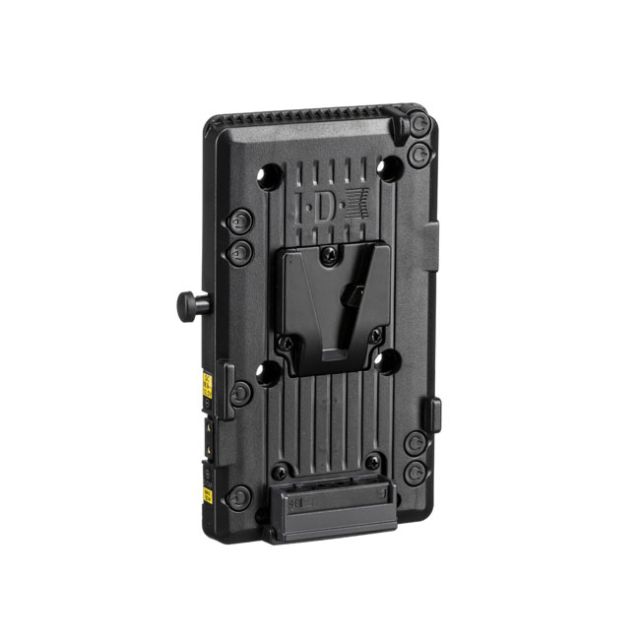

IDX ENDURA V-Mount Plate with Unregulated D-Tap & Regulated 12V D-Tap

IDX ENDURA V-Mount Plate with Unregulated D-Tap & Regulated 12V D-Tap

_x000D_

As a variation of the popular P-V2 Plate series, the P-V212 provides to the 12VDC output and includes dual D-Taps one positioned on each side: one 2-Pin D-Tap for regulated 12VDC output and a second D-Tap for unregulated battery throughput (lights, HDD recorder, etc)

_x000D_



_x000D_

Tech Specs:

_x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_

_x000D_ Maximum D-Tap Output 1: _x000D_	_x000D_ 50W, 12V regulated _x000D_
_x000D_ Maximum D-Tap Output 2: _x000D_	_x000D_ 50W, 12~16.8V unregulated _x000D_
_x000D_ Dimensions: _x000D_	_x000D_ 3.25(W) x 5.59(H) x 0.47(D) inches _x000D_
_x000D_ Weight: _x000D_	_x000D_ 0.40 lbs approx. _x000D_
_x000D_ Included Accessories: _x000D_	_x000D_ (4x) M3 x 8 screws _x000D_
