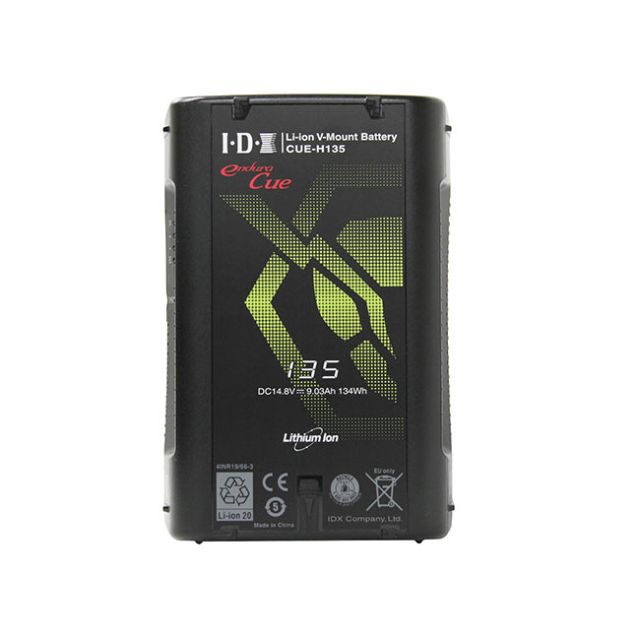

IDX Li-ion V-Mount Battery with D-Tap 134Wh Battery Pack

IDX Li-ion V-Mount Battery with D-Tap 134Wh Battery Pack

by IDX MFG# IDX-CUE-H135
$189.00

IDX Li-ion V-Mount Battery with D-Tap 134Wh Battery Pack

_x000D_

The CUE-H135 V-Mount battery answers to the power demands of digital cinematography and broadcast cameras where high current loads of 10.5A/135W are needed. The CUE-H135 provides a robust 134Wh capacity with the ability to comfortably handle 10.5A/135W loads, as well as a single built-in D-Tap output capable of taking a 80W load for powering ancillary accessories.

_x000D_

*Not compatible with D-Tap charging

_x000D_



_x000D_

Tech Specs

_x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_
_x000D_

Capacity:

_x000D_ 		_x000D_

134Wh (14.8V/ 9.03Ah)

_x000D_
_x000D_

Max Output Voltage:

_x000D_ 		_x000D_

16.8V DC

_x000D_
_x000D_

Nominal Voltage:

_x000D_ 		_x000D_

14.8V DC

_x000D_
_x000D_

Max Discharge Current:

_x000D_ 		_x000D_

10.5A‡

_x000D_
_x000D_

D-Tap:

_x000D_ 		_x000D_

80W each

_x000D_
_x000D_

End Voltage:

_x000D_ 		_x000D_

11.2V

_x000D_
_x000D_

Battery Protection:

_x000D_ 		_x000D_

Over charge, Over discharge, Over current

_x000D_
_x000D_

Ambient Temperature:

_x000D_ 		_x000D_

To charge: 32°F ~ 104°F (50°F ~ 86°F recommended)

_x000D_

To discharge: -4°F ~ 113°F (50°F ~ 104°F recommended)

_x000D_

To store: -4°F ~ 113°F (less than 1 month)

_x000D_
_x000D_

Dimensions:

_x000D_ 		_x000D_

3.82(W) x 5.75(H) x 2.32(D) inches

_x000D_
_x000D_

Weight:

_x000D_ 		_x000D_

1.92 lbs approx.

_x000D_
_x000D_



_x000D_ 		_x000D_

‡ may vary depending on the operating temperature
