IDX Micro V-Mount Plate with 2x D-Taps & USB-C

IDX Micro V-Mount Plate with 2x D-Taps & USB-C

_x000D_

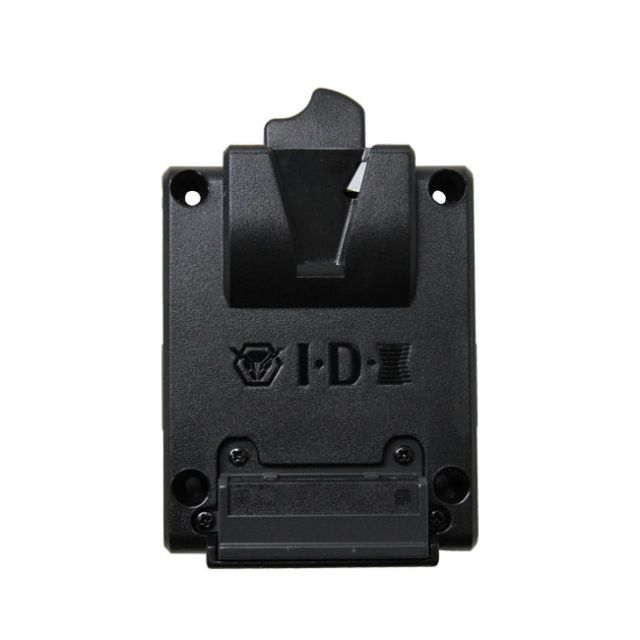

The P-Vmicro is a V-Mount adapter plate sized to fit Imicro batteries. Equipped with 2x D-Taps and USB-C output.

_x000D_

*Screw hole pattern is not standard (see image)*

_x000D_



_x000D_

Tech Specs:

_x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_

_x000D_ Output Connectors: _x000D_	_x000D_ (2) D-Tap, (1) USB-C _x000D_
_x000D_ D-Tap Output Voltage: _x000D_	_x000D_ Battery through voltage _x000D_
_x000D_ Maximum D-Tap Output: _x000D_	_x000D_ 80W _x000D_
_x000D_ USB-C: _x000D_	_x000D_ DC 5V / 2.3A max _x000D_
_x000D_ Battery Connector Max Current: _x000D_	_x000D_ 14A _x000D_
_x000D_ Ambient Temperature: _x000D_	_x000D_ -4F~113F (discharge) _x000D_
_x000D_ Dimensions: _x000D_	_x000D_ 2.6(W) x 3.78(H) x 1.1(D) inches _x000D_
_x000D_ Weight: _x000D_	_x000D_ 0.25 lbs approx. _x000D_
_x000D_ Included Accessories: _x000D_	_x000D_ (4x) M3 x 10 Double SEMS screws _x000D_
