IDX P-Vmicro V-Mount Plate for Imicro Batteries with Multipurpose Cheese Plate Kit
IDX P-Vmicro V-Mount Plate for Imicro Batteries with Multipurpose Cheese Plate Kit
_x000D_The P-Vmicro is a V-Mount adapter plate sized to fit Imicro batteries. Equipped with 2x D-Taps and USB-C output.
_x000D_*Screw hole pattern is not standard (see image)*
_x000D_Â
_x000D_Tech Specs:
_x000D_| _x000D_
Output Connectors: _x000D_ | _x000D_
_x000D_
(2) D-Tap, (1) USB-C _x000D_ | _x000D_
| _x000D_
D-Tap Output Voltage: _x000D_ | _x000D_
_x000D_
Battery through voltage _x000D_ | _x000D_
| _x000D_
Maximum D-Tap Output: _x000D_ | _x000D_
_x000D_
80W _x000D_ | _x000D_
| _x000D_
USB-C: _x000D_ | _x000D_
_x000D_
DC 5V / 2.3A max _x000D_ | _x000D_
| _x000D_
Battery Connector Max Current: _x000D_ | _x000D_
_x000D_
14A _x000D_ | _x000D_
| _x000D_
Ambient Temperature: _x000D_ | _x000D_
_x000D_
-4F~113F (discharge) _x000D_ | _x000D_
| _x000D_
Dimensions: _x000D_ | _x000D_
_x000D_
2.6(W) x 3.78(H) x 1.1(D) inches _x000D_ | _x000D_
| _x000D_
Weight: _x000D_ | _x000D_
_x000D_
0.25 lbs approx. _x000D_ | _x000D_
| _x000D_
Included Accessories: _x000D_ | _x000D_
_x000D_
(4x) M3 x 10 Double SEMS screws _x000D_ | _x000D_
Â
_x000D_A-CPmicroÂ

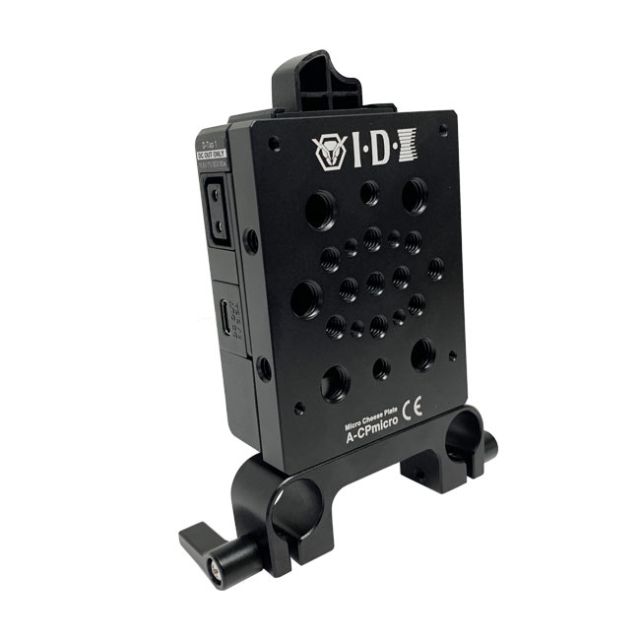

_x000D_The A-CPmicro Cheese Plate is a multi-purpose micro plate to accommodate the P-Vmicro on to rigs, bridge plates, gimbals, etc.
_x000D_Â
_x000D_Tech Specs
_x000D_| _x000D_
Material: _x000D_ | _x000D_
_x000D_
6061 Aluminum / Black anodized _x000D_ | _x000D_
| _x000D_
Screw Holes _x000D_ | _x000D_
_x000D_
(11) 1/4″ _x000D_(8) 1/4″ (side) _x000D_(6) 3/8″ with counter bores _x000D_(4) M4 _x000D_(4) M3 _x000D_ | _x000D_
| _x000D_
Clamp Mounting _x000D_ | _x000D_
_x000D_
(6) Positions _x000D_ | _x000D_
| _x000D_
Compatible V-Mount Plates _x000D_ | _x000D_
_x000D_
P-Vmicro _x000D_ | _x000D_
| _x000D_
Dimensions: _x000D_ | _x000D_
_x000D_
3.11(W) x 4.29(H) x 0.71(D) inches _x000D_ | _x000D_
| _x000D_
Weight: _x000D_ | _x000D_
_x000D_
0.38 lbs approx. _x000D_ | _x000D_
Â
