IDX V-Mount Adapter for Sony PXW-FX9

IDX V-Mount Adapter for Sony PXW-FX9

_x000D_

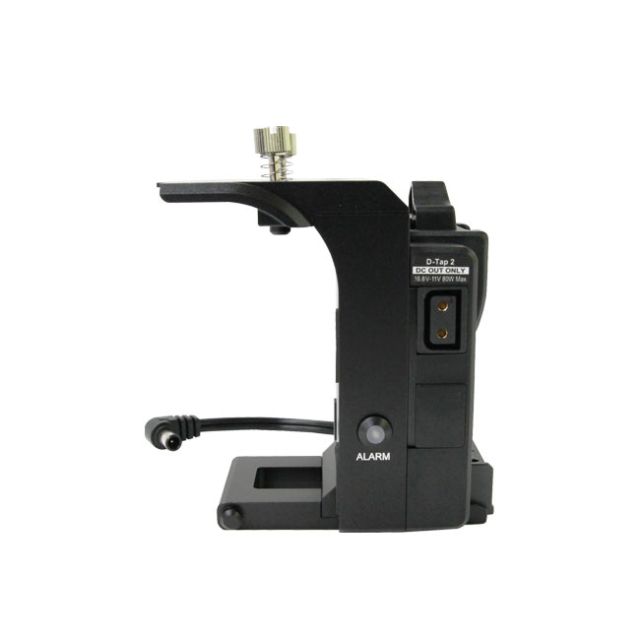

The A-DCFX9 is a V-Mount adapter specifically designed for the Sony PXW-FX9. It converts the attached battery to the camera required 19.5V and supplies power via the DC input. By using it in combination with a small battery like the Imicro series, you can build a small and lightweight system that has a sense of unity with the camera. Also equipped with 2x D-Tap and an Alarm LED to alert battery level.

_x000D_

Run Time with Imicro Series (FX9 on stand-by)

_x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_

_x000D_ Battery: _x000D_	_x000D_ Run Time (h:mm) _x000D_
_x000D_ Imicro-98 _x000D_	_x000D_ 3:00 _x000D_
_x000D_ Imicro-150 _x000D_	_x000D_ 4:15 _x000D_

_x000D_



_x000D_

Tech Specs

_x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_

_x000D_ Compatibility: _x000D_	_x000D_ Sony PXW-FX9 _x000D_
_x000D_ Output Connectors: _x000D_	_x000D_ (1) DC Plug, (2) D-Tap _x000D_
_x000D_ DC Plug: _x000D_	_x000D_ Output rating: 19.5V (40W max) _x000D_ Outer diameter: 6.5mm _x000D_ Inner diameter: 4.3mm _x000D_ Pin diameter: 1.4mm _x000D_ L-shaped type _x000D_
_x000D_ D-Tap: _x000D_	_x000D_ Battery through voltage, 80W max _x000D_
_x000D_ Alarm LED: _x000D_	_x000D_ Lights red when the battery level is 13.4V~11.5V _x000D_
_x000D_ Ambient Temperature: _x000D_	_x000D_ Discharge: -20C~40C (10C~40C recommended) _x000D_
_x000D_ Dimensions: _x000D_	_x000D_ 2.6(W) x 4.0(H) x 3.31(D) inches _x000D_
_x000D_ Weight: _x000D_	_x000D_ 0.88 lbs approx. _x000D_
