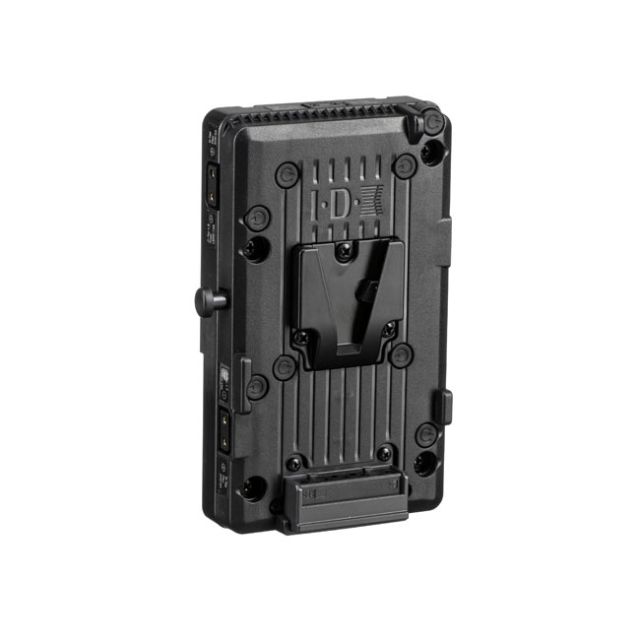

IDX V-Mount Adapter Plate with 5x D-Tap Outputs

IDX V-Mount Adapter Plate with 5x D-Tap Outputs

_x000D_

Designed to be sandwiched between a V-Mount camera and battery or mounted on a V-Dock, the MD-NBV, has five (5) D-Taps and allows you to power accessories such as onboard monitors, lights, wireless receivers, media recorders, signal converters, etc. Max draw from each D-Tap is 24W/2A (each D-Tap independently fused), and total Max draw is 120W/10A.

_x000D_



_x000D_

Tech Specs:

_x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_

_x000D_ D-Tap Output Voltage: _x000D_	_x000D_ 12~16.8V DC _x000D_
_x000D_ Maximum D-Tap Output: _x000D_	_x000D_ 24W(2A) each _x000D_
_x000D_ Maximum Total Plate Output: _x000D_	_x000D_ 10A/120W _x000D_
_x000D_ Dimensions: _x000D_	_x000D_ 3.65(W) x 5.63(H) x 1.08(D) inches _x000D_
_x000D_ Weight: _x000D_	_x000D_ 0.7 lbs approx. _x000D_
_x000D_ Included Accessories: _x000D_	_x000D_ (4x) M3 x 8 screws _x000D_
