IDX ZC-X2G Dual-Channel Li-Ion Battery Charger and 2 x ZEN-C98G Battery Kit

IDX ZC-X2G Dual-Channel Li-Ion Battery Charger and 2 x ZEN-C98G Battery Kit

_x000D_

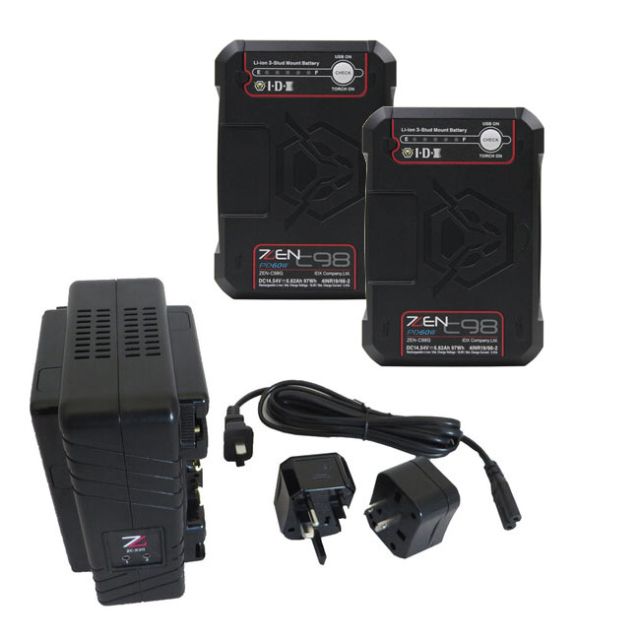

This kit includes two ZEN-C98G three-stud batteries, plus one ZC-X2G three-stud dual charger.

_x000D_

ZEN-C98G

_x000D_

The ZEN-C98G 3-Stud Mount battery line, the ZENITH Series. The ZEN-C98G provides a robust 97Wh capacity with the ability to handle max draw at 12.7A/140W loads, as well as two built-in D-Tap outputs capable of taking a 80W load for powering common on-board accessories. USB-C PD(Power Delivery) port for two way power and charging when used with the new UC-PD1 compact charger. Cube style for use with cinema cameras. An antiviral and antimicrobial body for hygienic peace of mind.

_x000D_



_x000D_

Tech Specs

_x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_

_x000D_ Capacity: _x000D_	_x000D_ 97Wh (14.5V/ 6.6Ah) _x000D_
_x000D_ Max Output Voltage: _x000D_	_x000D_ 16.8V DC _x000D_
_x000D_ Nominal Voltage: _x000D_	_x000D_ 14.54V DC _x000D_
_x000D_ Max Discharge Current: _x000D_	_x000D_ 12.7A‡ _x000D_
_x000D_ D-Tap: _x000D_	_x000D_ 80W each _x000D_
_x000D_ USB-C PD: _x000D_	_x000D_ Input/Output Max. 60W (5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3A) _x000D_
_x000D_ End Voltage: _x000D_	_x000D_ 11V _x000D_
_x000D_ Battery Protection: _x000D_	_x000D_ Over charge, Over discharge, Over current _x000D_
_x000D_ Ambient Temperature: _x000D_	_x000D_ To charge: 32°F ~ 104°F (50°F ~ 86°F recommended) _x000D_ To discharge: -4°F ~ 113°F (50°F ~ 104°F recommended) _x000D_ To store: 32°F ~ 104°F (three months) _x000D_
_x000D_ Dimensions: _x000D_	_x000D_ 3.46(W) x 4.96(H) x 2.70(D) inches _x000D_
_x000D_ Weight: _x000D_	_x000D_ 1.54 lbs approx. _x000D_
_x000D_   _x000D_	_x000D_ ‡ may vary depending on the operating temperature _x000D_

_x000D_



_x000D_

ZC-X2G

_x000D_

The ZC-X2G Dual channel Battery Charger is a compact and light weight that charge your 3-stud batteries.  The charger is small at 3" thick and weights only 1 lb. and convenience for your travelling and shooting in the field.  The charger can charge a single battery at a 3A rate or two batteries simultaneously at 1.5A. When only needing to charge one battery pack place it on the rapid charge channel for a 3A charge, so that 98wh pack can be charged in under 2.5hrs.

_x000D_



_x000D_

Tech Specs:

_x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_

_x000D_ AC Adapter Input Voltage: _x000D_	_x000D_ AC 100-240V 50/60Hz _x000D_
_x000D_ Power Consumption: _x000D_	_x000D_ 140VA max _x000D_
_x000D_ Charge Current: _x000D_	_x000D_ 1.5A x 2pcs / 3.0A x 1pc _x000D_
_x000D_ Power Range: _x000D_	_x000D_ up to 48watt/hr.(one battery), 24watt/hr.(two batteries) _x000D_
_x000D_ Operating Temperature: _x000D_	_x000D_ 32°F ~ 104°F _x000D_
_x000D_ Dimensions: _x000D_	_x000D_ 4.5(W) x 5.5(H) x 3.0(D) inches _x000D_
_x000D_ Weight (Charger): _x000D_	_x000D_ 1.0 lbs approx. _x000D_
_x000D_ What's in the box _x000D_	_x000D_ Charger x 1, AC cable x 1, AC plug adaptor x 2 _x000D_
