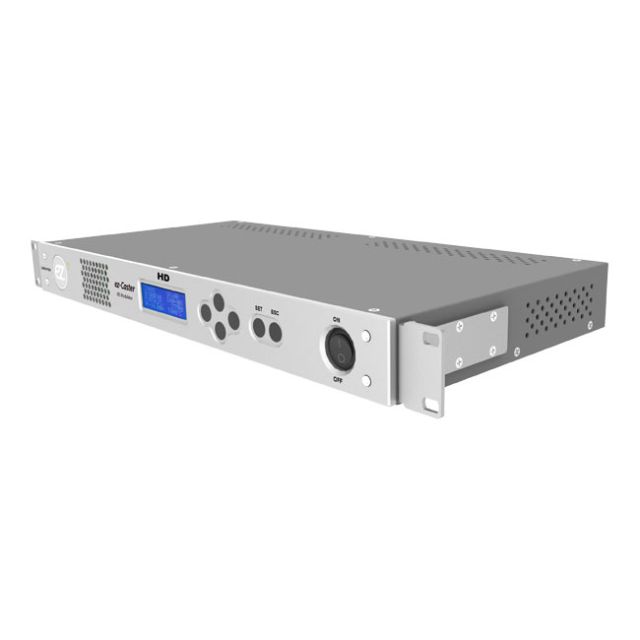

Lumantek ez-Caster EN3 Ultra-low latency HD Encoder

Lumantek ez-Caster EN3 Ultra-low latency HD Encoder

by Lumantek MFG# LUM-ez-Caster EN3
$2,399.00

Lumantek ez-Caster EN3 Ultra-low latency HD Encoder


Ez-Caster is a MPEG2/H.264 HD Encoder in a 1RU Device System. It has various interfaces ( HD-SDI, HDMI, Component, Composite and external audio. Also it processes these input signals and mix it. Supports variable encoding latency from 150ms~600ms. Encode base signal ( HI-SDI, HDMI, COMPONENT, Composite). Offers the best picture quality compared to the original signal.









HD Encoder + 8VSB Modulator


Inputs



  • SD/HD-SDI, BNC 75Ω x 1ea

  • HDMI x 1ea

  • Component, YCbCr, 170MHz 12bit ADC, RCA x 3ea

  • Composite, CVBS, 3D Comb Filter, RCA 1ea

  • Analog Stereo Audio (Left/Right), RCA 2ea


Video Resolutions



  • 1920x1080 @ 60p, 59.94p Automatic Convert to interlaced format

  • 1920x1080 @ 60i, 59.94i

  • 1280x720 @ 60p, 59.94p

  • 720x480 @ 59.94i (NTSC)

  • Resolution detect and automatic/manual change support


TS Mux & System



  • System Delay: 150ms, 200ms, 350ms,650ms

  • TS Bit-rate: 4.5~25 Mbps

  • Editable TS ID, PMT/PCR/Video/Audio PID


Video Encoder



  • MPEG2, H.264

  • MPEG2 HD / SD (MP @ HL / MP @ ML), H.264 HD / SD ( HP @ L4 / HP @ L3 )

  • Bit Rate: (MPEG2) 5Mbps ~ 22 Mbps, (H.264) 3.5Mbps ~ 22Mbps

  • Closed Caption Support


audio Encoder



  • MP1L2, Dolby AC3, AAC-LC, HE-AACv2 (Stereo)

  • Bit-rate: 192~384 Kbps (HE-AACv2는 32~96Kbps)

  • Sample Rate: 48KHz

  • Audio Delay: 0~400ms

  • Volume Control: 100%~500%


PSIP Generator



  • MGT, TVCT Generation Enable/Disable

  • Short name, major and minor channel number setting


ASI Output



  • Connector: BNC 75Ω x 1ea

  • Packet Size: 188 Bytes

  • TS Bit Rate: 19.392Mbps


RF Output



  • Modulation: ATSC(8VSB)

  • Connector: F-Type 75Ω x 1ea

  • Output Level : +2~-18dBm (0.5dB Step)

  • Center Frequency Range: 40~999 MHz

  • MER:> 36dB

  • Spurious: 60dBc (Relative to Output Level)

  • Phase Noise: VHF 110dBc@20kHz, UHF 95dBc@20kHz


Management



  • Front Panel: 4-line text LCD, 6 buttons, Status LED(RGB)

  • Rear USB Port: GUI, Firmware Update


Physical



  • Dimension: 44(H) X 483(W) X 240(D) (excluding connectors)

  • Operation Temperature: 0~45℃

  • Weight: 2 Kg

  • Power Consumption: 25W(max.)
