Middle Things APC-R Mini
Middle Things APC-R Mini
_x000D_Transform your 3 axis-gimbals into PTZ heads remotely controlled over the network! Cinematic PTZ for Live Video Production!Â
_x000D_Have you ever dreamed of turning your live production camera into a remotely controlled system that has a better optical quality and lower cost than traditional PTZ cameras ?
The APC-R Mini enables you to combine your favorite lenses, cameras, and gimbals into a high-quality affordable remote camera, seamlessly fitting into your live production workflow. It serves as an alternative to all-in-one PTZ heads, offering the advantage of larger sensors and custom lenses.
With the Middle Control desktop software, you can map any USB Gaming joystick axes and buttons to gimbal actions such as Pan / Tilt / Roll / Speed or Zoom motor. Or you can use the professional dedicated Middle Remote controller. This allows you to turn your existing camera setup into a high quality PTZ head, at an affordable price.
_x000D_Â
_x000D_Features
_x000D_- _x000D_
- Remote Gimbal Control _x000D_

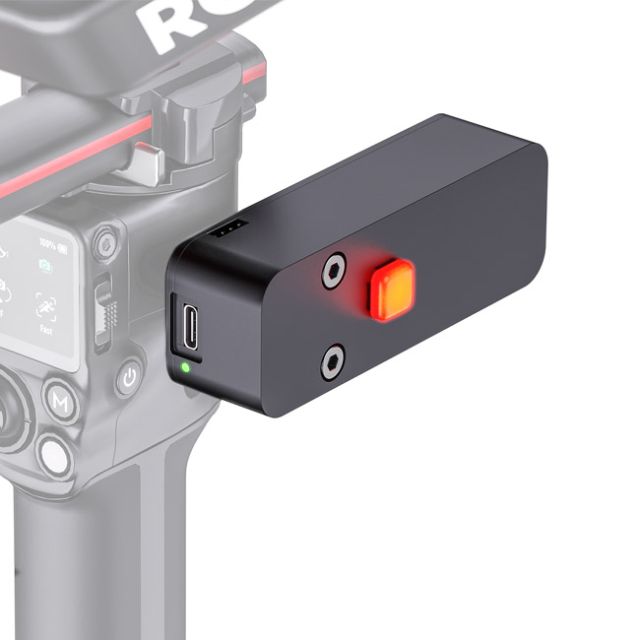

The APC-R Mini connects to and draws power directly from the RSA accessory port of your DJI RS2, RS3 Pro, RS4, or RS4 Pro gimbal. You can connect it to your network using LAN Ethernet (recommended) or Wi-Fi.
_x000D_Using the Middle Control software, you can control up to 8 DJI gimbals remotely from a single laptop, using the Middle Remote or a USB gaming controller and over long distance Ethernet, just as a regular PTZ camera.
_x000D_Â
_x000D_- _x000D_
- Remote Camera Control _x000D_
If you use supported Blackmagic Design cameras you can also remotely control Shutter / Iris / WB / Gain / Focus in addition to the Pan / Tilt / Roll / Speed or Zoom motor of the gimbal.
_x000D_And if you also have an ATEM switcher, you can connect our Middle Control desktop software to the ATEM to control more advanced camera settings such as Luma / Gamma / Lift / Contrast / Saturation and Sharpening. The APC-R Mini and Middle Control are designed to blend seamlessly in your live production environment.
_x000D_Â
_x000D_- _x000D_
- Multiple Control Options : _x000D_
Mounting the APC-R Mini on your gimbal will allow for multiple control options over the network, straight from the live control room :
_x000D_- USB Gaming Joysticks
- Middle Remote
- BitFocus Companion
- TCP Access with the SDK/API
Â
_x000D_- _x000D_
- Save Position Presets _x000D_
You can save custom camera position presets and recall them later. And if you use Blackmagic cameras along with an ATEM switcher, you can even store a custom White Balance / ISO / Iris / Shutter / Tint preset in addition to the Pan / Tilt / Roll / Zoom status of the gimbal. If you use an MFT lens, you can also save the lens Focus distance.
_x000D_Â
_x000D_- _x000D_
- Wireless Camera Control with an ATEM _x000D_
In addition to the built-in Ethernet port that offers a wired control solution, you can use the built-in Wi-Fi receiver to control the gimbal and camera completely wirelessly. For instance, you can bring a Wi-Fi repeater very close to the stage, and have a steadicam operator moving around freely while controlling the camera remotely, using our Middle Control software or the Blackmagic ATEM Software Control. When the ethernet cable is disconnected, the APC-R Mini will automatically switch to Wi-Fi within a few seconds. The wireless range will depend on your ATEM router. Better router, better range.Â
_x000D_The built-in Tally quickly lets you see if your camera is currently On Air or in Preview, and its brightness can be adjusted within the Middle Control Software.
- _x000D_
- Easy to Use Software _x000D_
Middle Control for Mac OS allows you to control all your gimbal & cameras. You can connect USB Joysticks controllers, the Middle Remote, map camera & gimbal settings to any joystick button or axis and create custom position presets. You can also update your device using USB and adjust Wi-Fi & network settings, tally brightness, camera number, name...
_x000D_Â
_x000D_- _x000D_
- BitFocus Companion Support _x000D_
The APC-R Mini can be controlled using a Streamdeck through BitFocus companion. With a Streamdeck, you can not only control, adjust, and monitor camera and gimbal settings, but also save and recall presets, rename presets, create custom pages, and use data from the gimbal and camera as variables for other Companion integrations.
_x000D_Â
_x000D_- _x000D_
- Multiple Gimbals Support _x000D_
You can control up to 8 different gimbals / cameras using our system. You can control all of the gimbals & cameras using the same joystick, but you need to attach one APC-R Mini to each camera you want to control.
_x000D_Â
_x000D_In the Box
_x000D_- _x000D_
- 1x APC-R Mini Controller _x000D_
Â
_x000D_Compatibility
_x000D_NOTE: Compatibility can change over time as new products get released. Please visit middlethings.co/support for up-to-date compatibility information.
_x000D_Â
_x000D_The APC-R Mini can control the following gimbals:
_x000D_- _x000D_
- DJI RS 2 _x000D_
- DJI RS 3 Pro _x000D_
- DJI RS 4 _x000D_
- DJI RS 4 Pro _x000D_
Â
_x000D_The APC-R Mini can control the following cameras:
_x000D_- _x000D_
- Blackmagic Cinema Camera 6K _x000D_
- Blackmagic Pocket Cinema Camera 4K _x000D_
- Blackmagic Pocket Cinema Camera 6K G1 & G2 _x000D_
- Blackmagic Pocket Cinema Camera 6K Pro _x000D_
- Blackmagic Studio Camera 4K Pro _x000D_
- Blackmagic Studio Camera 4K Plus _x000D_
- Blackmagic Ursa Broadcast _x000D_
- Blackmagic Ursa Mini Pro _x000D_
- Blackmagic Ursa Mini Pro G2 _x000D_
- Blackmagic Micro Studio 4K G2 _x000D_
Â
_x000D_The APC-R Mini is compatible with the majority of Blackmagic Design ATEM Switchers. These are:
_x000D_- _x000D_
- ATEM Mini / Mini Pro / Mini Pro ISO _x000D_
- ATEM Mini Extreme / Extreme ISO _x000D_
- ATEM Television Studio HD8 & 4K8 _x000D_
- ATEM Television Studio Pro HD _x000D_
- ATEM Television Studio Pro 4K _x000D_
- ATEM Production Studio 4K _x000D_
- ATEM 1M/E & 2M/E Production Studio 4K _x000D_
- ATEM 4M/E Broadcast Studio 4K _x000D_
- ATEM Constellation 8K / 4K / HD _x000D_
When connected to an ATEM Switcher over Wi-Fi, the APC-R Mini grabs all the ATEM Software Control camera controls and forwards them to the Blackmagic camera using Bluetooth. Pair that with a video transmission system, and there you have a fully wireless remote controlled camera setup!
Â
_x000D_Technical Specifications
_x000D_- _x000D_
- Input Power : Directly from the gimbal or USB-C (5V max) _x000D_
- Power consumption : 1W _x000D_
- Bluetooth Wireless Frequency : 2.4GHz _x000D_
- WiFi Wireless Frequency : 2.4Ghz _x000D_
- Weight : 0.12lbs / 54g _x000D_
- Width : 3.2cm / Height : 2.4cm / Length : 9.5cm _x000D_
- Storage Temperature : 14 to 140°F / -10 to 60°C _x000D_
- Package Weight : 07kg / 0.15 lbs _x000D_
- Box Dimensions (LxWxH) : 4cm x 4cm x 11cm | 1â€x4.7â€x2.4†_x000D_
