Middle Things Fiber Bridge 5 12G
Middle Things Fiber Bridge 5 12G

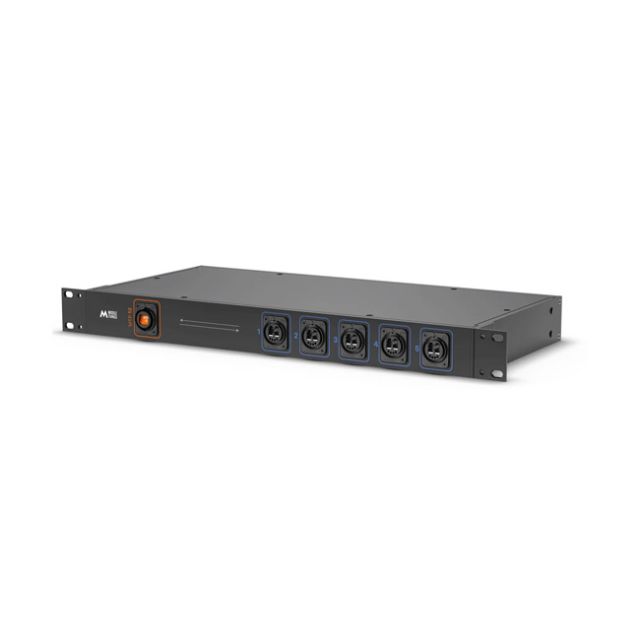

_x000D_The Fiber Bridge 5 splits a Neutrik opticalCON MTP® 12 fiber cable into 5 different OpticalCON Duo pairs + LAN, and vice versa (reversible). It supports 3G / 6G / 12G signals.
_x000D_- Stage box with reversible design
_x000D_The Fiber Bridge 5 allows you to have only one cable running from the control room to the stage. On the stage, the Fiber Bridge 5 acts as a stage box that splits the Neutrik opticalCON MTP® 12 fiber cable into 5 different OpticalCON Duo pairs + LAN, and vice versa. You can also use it in reverse and merge 5 OpticalCON Duo pairs + LAN into one single opticalCON MTP® 12 fiber cable. It supports 3G / 6G / 12G signals.
_x000D_- Can run with zero power
_x000D_The Fiber Bridge is a passive splitter, meaning that no power is required to operate it. However, if you plan to use the LAN connection, you need to provide +12V DC power using the barrel jack connector.
_x000D_- Rugged fiber connector
_x000D_The opticalCON MTP® 12 connector makes the Fiber Bridge compatible with the rugged opticalCON MTP® 12 cable drums by Neutrik, designed for field use and tough handling. The connector has a built-in automatic shutter that protects the 12 fiber cores as soon as the cable is disconnected.
_x000D_- Many possibilities with the Middle Fiber products
_x000D_Paired with a Fiber Dispatch , a Fiber Unite or a Fiber Camera Box,, unleash many configurations that will greatly improve your day to day multicamera workflow!
_x000D_In the Box
_x000D_- _x000D_
- 1x 1U Fiber Bridge 5 _x000D_
Â
_x000D_Compatibility
_x000D_The Fiber Bridge 5 can be used with the Middle Things Fiber Unite 5, Bridge 5, Dispatch 5, and Fiber Camera Box. It supports single mode LC optical fiber cables, as well as Neutrik OpticalCon Duo and OpticalCon Duo Lite cables. The MTP® 12 connector supports opticalCON MTP® 12 Cables.
_x000D_Technical Specifications
_x000D_- _x000D_
- I/O connections: 5x Neutrik OpticalCON Duo, 1x Neutrik opticalCON MTP® 12, 1x LAN ,+12V DC power. _x000D_
- Input Voltage : 12V DC _x000D_
- Power Consumption : _x000D_
- Fiber type : Single Mode _x000D_
- LAN support : 10/100/1000Mbps Full/Half Duplex _x000D_
- Power Consumption : _x000D_
- Height : 4.5cm / 1.8 inch _x000D_
- Width : 48cm /18.9 inch _x000D_
- Depth : 22.5cm / 8.9 inch _x000D_
- Weight : 2.5kg / 5.5 lbs _x000D_
- Storage Temperature : 14 to 140°F / -10 to 60°C _x000D_
- Package Weight : 3kg / 6.6 lb _x000D_
- Box Dimensions (LxWxH) : 52cm x 25cm x 8cm | Â Â Â Â Â Â Â Â Â Â Â Â Â Â _x000D_
Â
_x000D_Warranty
_x000D_Limited 1-Year Manufacturer Warranty
