Middle Things Fiber Dispatch 4 PTZ 12G

Middle Things Fiber Dispatch 4 PTZ 12G

_x000D_

Built for on-location multi camera PTZ workflows in mind, the Fiber Dispatch 4 converts 4 pairs of SDI In/Out 4K video + IP LAN signals into 4 optical fiber outputs, using robust Neutrik OpticalCon Duo connectors. It is very similar to the Fiber Dispatch 5 12G, the difference is the added 1G LAN port at the back, adding LAN communication to all 4 fiber outputs, which makes it ideal for PTZ cameras!

_x000D_

- Standard 1U rack design

_x000D_

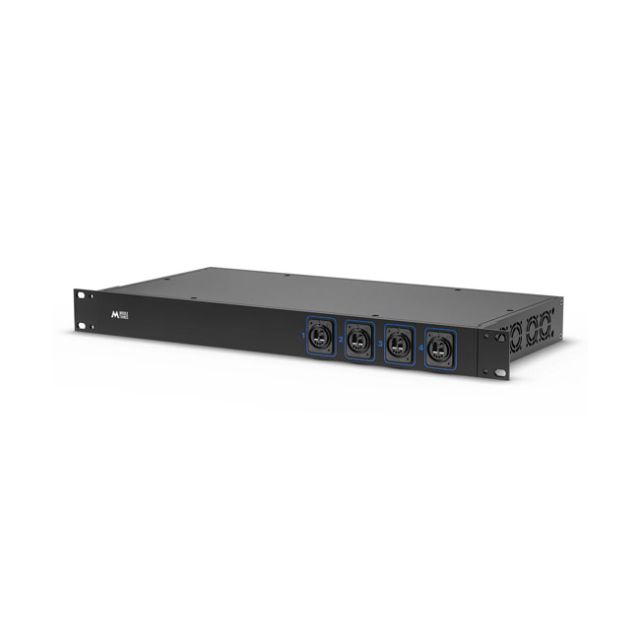

Thanks to a compact 1U rack design, the Fiber Dispatch 4 converter will sit perfectly inside your existing video rack, allowing you to connect up to 4 PTZ cameras using the Fiber Camera Box PTZ (Slave version). Built-in fans ensure proper cooling of all the converters for a hassle free workflow.

_x000D_

- Made for efficiency and 4K over long distances

_x000D_

Ever felt the time-consuming task of pulling three different SDI cables to a single camera , one for the video input, on for the return feed, and one for the LAN control ? The Fiber Dispatch 4 merges each of these cable triplets into Duo Optical fiber cables, which are more lightweight and much more reliable than traditional copper BNC cables since they are insensitive to all electromagnetic interferences. You can run your fiber cable over thousands of miles with zero dropouts.

_x000D_

- Industry standard & widespread fiber connector

_x000D_

The Neutrik Optical ConDuo connector makes this converter compatible both with widespread LC / LC fiber cables, as well as the rugged Optical Con Advanced Duo & Duo Lite cables by Neutrik, designed for field use and tough handling. The connector has a built-in automatic shutter that protects the fiber cores as soon as the cable is disconnected.

_x000D_

In the Box

_x000D_

_x000D_
• 1x 1U Fiber Dispatch 4 PTZ 12G
_x000D_

_x000D_



_x000D_

Compatibility

_x000D_

The Fiber Dispatch 4 can be used with the Middle Things Fiber Camera Box PTZ 12G - Standard Version (Slave) . It is not compatible with the Master version of the camera box, since the Dispatch 4 is a Master.

_x000D_

It supports single mode LC optical fiber cables, as well as Neutrik OpticalCon Duo and OpticalCon Duo Lite cables. Supported SDI video signals are 3G, 6G, and 12G  (max  2160p60 )

_x000D_

Technical Specifications

_x000D_

_x000D_
• I/O connections: 4x SDI In, 4x SDI Out, 1x LAN 1G, 4x Neutrik OpticalCon Duo LC , AC Power.
_x000D_
• Input Voltage : 85V ~ 264V AC
_x000D_
• Power Consumption :
_x000D_
• Fiber type : Single Mode
_x000D_
• Height : 4.5cm / 1.8 inch
_x000D_
• Width : 48cm /18.9 inch
_x000D_
• Depth : 22.5cm / 8.9 inch
_x000D_
• Weight : 3.0kg / 6.6 lbs
_x000D_
• Storage Temperature : 14 to 140°F / -10 to 60°C
_x000D_
• Package Weight : 3kg  / 6.6  lb
_x000D_
• Box Dimensions (LxWxH) : 52cm x 25cm x 8cm | 5”x 9.84” x 3.15”
_x000D_

_x000D_



_x000D_

Warranty

_x000D_

Limited 1-Year Manufacturer Warranty
