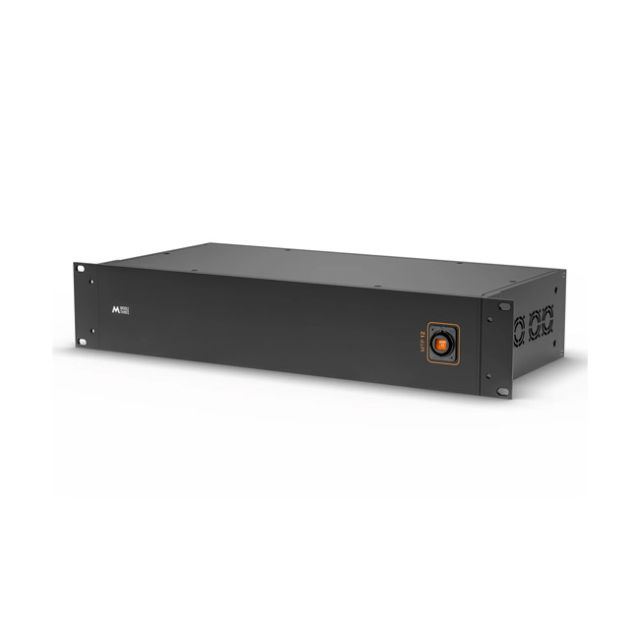

Middle Things Fiber Unite 10 12G
Middle Things Fiber Unite 10 12G
_x000D_Built for on-location multi-camera workflows in mind, the Fiber Unite 10 merges 10 pairs of SDI In/Out 4K video signals and a LAN connection into a single 12 channel optical cable : Neutrik opticalCON MTP® 12.
_x000D_- 21 cables merged in just one.
_x000D_Ever felt the time-consuming task of pulling so many cable drums from the control room to the stage ? With the Fiber Unite 10 converter, you can merge up to 10 pairs of 4K SDI IN / SDI Out signals + a LAN connection into one single 12 channel MTP® 12 fiber cable. You can connect the other end of the MTP® 12 cable into another Unite 10 module that will demerge into 10 SDI In/Out Pairs + LAN.
_x000D_A multichannel optical cable is lighter and much more reliable than a traditional copper BNC cable since it is insensitive to all electromagnetic interferences. You can run your fiber cable over thousands of miles with zero dropouts.
_x000D_- Standard 2U rack design
_x000D_Thanks to a compact 2U rack design, the Fiber Unite converter will sit perfectly inside your existing video rack, allowing you to connect to another Fiber Unite 10 module through a single cable.
_x000D_- Rugged fiber connector
_x000D_The opticalCON MTP® 12 connector makes the Unite compatible with the rugged opticalCON MTP® 12 cable drums by Neutrik, designed for field use and tough handling. The connector has a built-in automatic shutter that protects the 12 fiber cores as soon as the cable is disconnected.
_x000D_- Open to customization (10G Lan, etc)
_x000D_Are there any specific requirements that are not met by the current configuration of our product? Please do not hesitate to reach out to us! We offer customized solutions tailored to your needs, such as replacing the LAN port at the back with an LC Duo fiber, upgrading from 1G LAN to 10G, and much more!
_x000D_Â
_x000D_In the Box
_x000D_- _x000D_
- 1x 1U Fiber Unite 10 12G _x000D_
Â
_x000D_Compatibility
_x000D_The Fiber Unite 10 can be used with the Middle Things Fiber Unite 10 12G. It supports opticalCON MTP® 12 Cables. Supported SDI video signals are 3G, 6G, and 12G (max 2160p60 )
_x000D_Technical Specifications
_x000D_- _x000D_
- I/O connections: 10x SDI In, 10x SDI Out, 1x Neutrik opticalCON MTP® 12, 1x LAN 1G , AC Power. _x000D_
- Input Voltage : 85V ~ 264V AC _x000D_
- Power Consumption : 40W _x000D_
- Fiber type : Single Mode _x000D_
- LAN support : 10/100/1000Mbps Full/Half Duplex _x000D_
- Height : 8.89cm / 3.5 inch _x000D_
- Width : 48cm /18.9 inch _x000D_
- Depth : 22.5cm / 8.9 inch _x000D_
- Weight : 3.4kg / 7.5 lbs _x000D_
- Storage Temperature : 14 to 140°F / -10 to 60°C _x000D_
- Package Weight : 6kg / 7.9 lb _x000D_
- Box Dimensions (LxWxH) : 52cm x 25cm x 16cm | 5â€x 9.84†x 6.30†_x000D_
Â
_x000D_Warranty
_x000D_Limited 1-Year Manufacturer Warranty
