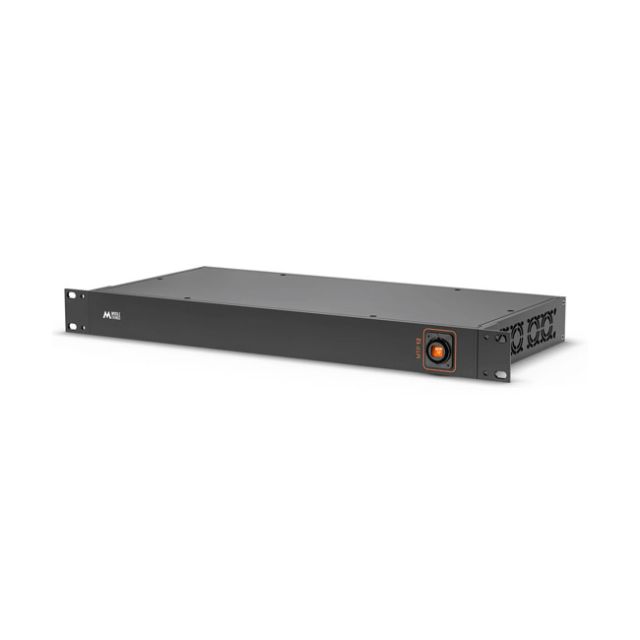

Middle Things Fiber Unite 5 12G

Middle Things Fiber Unite 5 12G

_x000D_

Built for on-location multi-camera workflows in mind, the Fiber Unite 5 converts 5 pairs of SDI In/Out 4K video signals and a LAN connection into a single 12 channel optical cable : Neutrik opticalCON MTP® 12.

_x000D_



_x000D_

- 11 cables merged in just one.

_x000D_

Ever felt the time-consuming task of pulling so many cable drums from the control room to the stage ? With the Fiber Unite 5 converter, you can merge up to 5 pairs of 4K SDI IN / SDI Out signals + a LAN connection into one single 12 channel MTP® 12 fiber cable. You can connect the other end of the MTP® 12 cable into either :

_x000D_

_x000D_
• Another Unite 5 module that will demerge into 5 SDI In/Out Pairs + LAN.
_x000D_
• A Fiber Bridge 5, which will split it into 5 OpticalCON Duo connectors that can be used with Fiber Camera Boxes, acting as an intermediary stage box.
_x000D_

_x000D_

A multichannel  optical cable is lighter and much more reliable than a traditional copper BNC cable since it is insensitive to all electromagnetic interferences. You can run your fiber cable over thousands of miles with zero dropouts.

_x000D_

- Standard 1U rack design

_x000D_

Thanks to a compact 1U rack design, the Fiber Unite converter will sit perfectly inside your existing video rack, allowing you to connect up to 5 cameras to a Fiber Bridge or another Fiber Unite module through a single cable. Built-in fans ensure proper cooling of all the converters for a hassle free workflow.

_x000D_

- Rugged fiber connector

_x000D_

The opticalCON MTP® 12 connector makes the Unite compatible with the rugged opticalCON MTP® 12 cable drums by Neutrik, designed for field use and tough handling. The connector has a built-in automatic shutter that protects the 12 fiber cores as soon as the cable is disconnected.

_x000D_

- Many possibilities with the Middle Fiber products

_x000D_

Paired with a Fiber Dispatch or a Fiber Bridge , unleash many configurations that will greatly  improve your day to day multicamera workflow!

_x000D_

In the Box

_x000D_

_x000D_
• 1x 1U Fiber Unite 5 12G
_x000D_

_x000D_



_x000D_

Compatibility

_x000D_

The Fiber Unite 5 can  be used with the Middle Things Fiber Unite 5 12G and Bridge 5. It supports opticalCON MTP® 12 Cables.  Supported SDI video signals are 3G, 6G, and 12G  (max  2160p60 )

_x000D_

Technical Specifications

_x000D_

_x000D_
• I/O connections: 5x SDI In, 5x SDI Out, 1x Neutrik opticalCON MTP® 12, 1x LAN , AC Power.
_x000D_
• Input Voltage : 85V ~ 264V AC
_x000D_
• Power Consumption :
_x000D_
• Fiber type : Single Mode
_x000D_
• LAN support : 10/100/1000Mbps Full/Half Duplex
_x000D_
• Power Consumption :
_x000D_
• Height : 4.5cm / 1.8 inch
_x000D_
• Width : 48cm /18.9 inch
_x000D_
• Depth : 22.5cm / 8.9 inch
_x000D_
• Weight : 2.5kg / 5.5 lbs
_x000D_
• Storage Temperature : 14 to 140°F / -10 to 60°C
_x000D_
• Package Weight : 3kg  / 6.6  lb
_x000D_
• Box Dimensions (LxWxH) : 52cm x 25cm x 8cm | 5”x 9.84” x 3.15”
_x000D_

_x000D_



_x000D_

Warranty

_x000D_

Limited 1-Year Manufacturer Warranty
