NewBlue Fusion 3 SDI

NewBlue Fusion 3 SDI

_x000D_

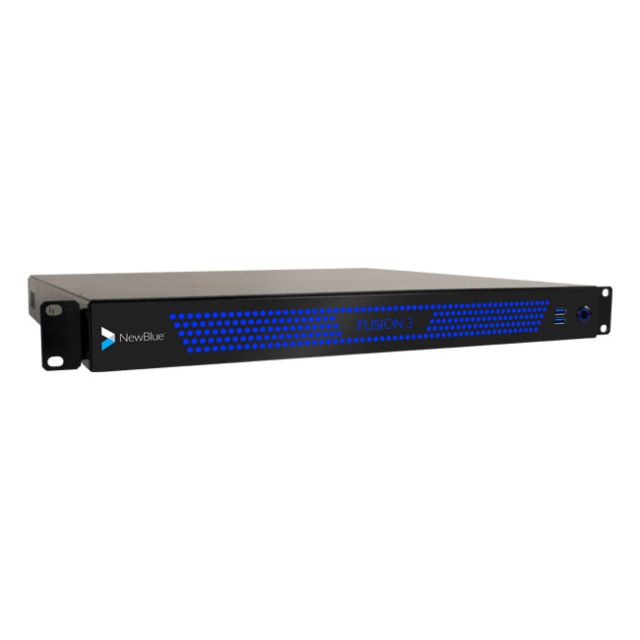

NewBlue Fusion 3 Extreme 1U short-depth turnkey appliance

_x000D_

_x000D_
• Small form-factor 1U (1.75") rack height, 10-inch deep chassis
_x000D_
• Removable top cover for access to all internal components
_x000D_
• Front mounting hardware included
_x000D_

_x000D_



_x000D_

Power Supply

_x000D_

300 Watt power supply

_x000D_



_x000D_

Motherboard

_x000D_

Gigabyte A620I AX - Mini ITX, Socket AM5

_x000D_



_x000D_

Processor

_x000D_

AMD- Ryzen 5 7600 Series 6-Core 3.8 GHz Socket AM5 65W AMD Radeon Graphics Processor

_x000D_



_x000D_

Memory

_x000D_

32GB DDR5 4800 MHz RAM (non-ECC) (16GB x 2 DIMM dual-channel configuration)

_x000D_



_x000D_

Storage

_x000D_

1 x 500GB Western Digital Blue SN550 series M.2 2280 NVMe 1.3 PCI Express 3.0 x4 SSD

_x000D_



_x000D_

Operating System

_x000D_

Windows 11 Pro 64-bit

_x000D_



_x000D_

Video

_x000D_

AMD RadeonTM Graphics, 2 GPU cores,2200MHz

_x000D_



_x000D_

Expansion Slots

_x000D_

Slot 1- PCI Express 3.0 x16 (x16 electrical)

_x000D_

Blackmagic DeckLink Duo 2 installed

_x000D_



_x000D_

Ports

_x000D_

1 x DisplayPort

_x000D_

1 x HDMI port

_x000D_

1 x USB Type-C® port, with USB 3.2 Gen 1 support

_x000D_

1 x USB 3.2 Gen 2 Type-A port (red)

_x000D_

1 x USB 3.2 Gen 1 port

_x000D_

3 x USB 2.0/1.1 ports

_x000D_

1 x Q-Flash Plus button

_x000D_

1 x RJ-45 port

_x000D_

2 x SMA antenna connectors (2T2R)

_x000D_

3 x audio jacks

_x000D_



_x000D_

Audio

_x000D_

Realtek® ALC887 codec High Definition Audio codec 2/4/5.1/7.1-channel None

_x000D_



_x000D_

Warranty

_x000D_

1 Year Manufacturer's Warranty
