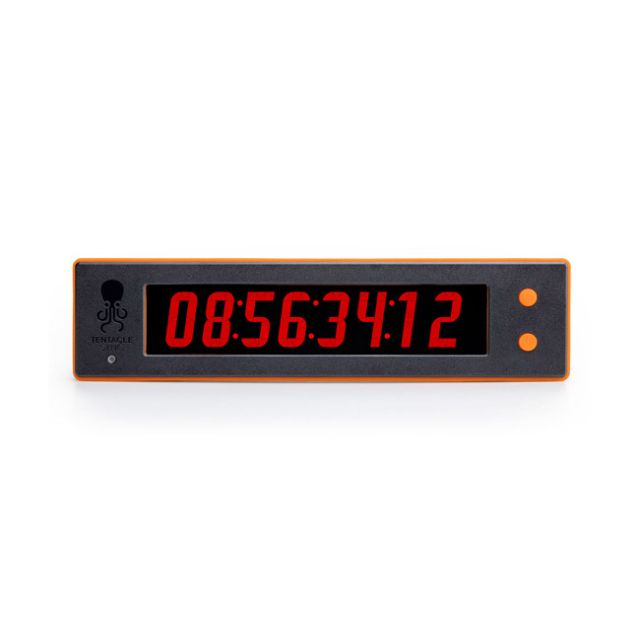

Tentacle Sync Timebar Multipurpose Timecode Display
Tentacle Sync Timebar Multipurpose Timecode Display
_x000D_The TIMEBAR is the all-rounder among timecode displays, combining multifunctionality with a high-contrast display. Equipped with OLED technology, the TIMEBAR features a unique alphanumeric design that ensures excellent readability, making it suitable for use both in the studio and on set. It serves as a reliable timecode generator or as a timecode display for directors and the team.
_x000D_The TIMEBAR can be used as a timer or stopwatch device for presenters and content creators. Its versatility extends to displaying text messages via Setup App, making it a true multitool among timecode displays.
_x000D_The OLED display not only provides high contrast, but also ensures low energy consumption, allowing the TIMEBAR to last throughout the entire day. To facilitate sustainable and long-term use, both the battery and the OLED display are easily replaceable and can be obtained from the official shop or numerous authorized dealers.
_x000D_The Tentacle TIMEBAR seamlessly integrates into the overall Tentacle workflow, allowing easy and intuitive operation through the familiar Setup App via Bluetooth®. This ensures a smooth and efficient experience for users in various production scenarios.
_x000D_Â
_x000D_FEATURES
_x000D_High-contrast OLED Technology with a Wide Viewing Angle
_x000D_Compact & Lightweight
_x000D_Unique Alphanumeric Display Design
_x000D_Typical Battery Runtime 24 hours
_x000D_Control, Sync Operate all devices via Bluetooth®
_x000D_Timecode Generator with TC In & Out
_x000D_Timer & Stopwatch Functionality
_x000D_Text Display
_x000D_Tentacle Sync Studio Software License included (macOS)
_x000D_Limited Two Year Warranty
_x000D_Designed and Manufactured in Germany
_x000D_Â
_x000D_CONNECTIVITY
_x000D_3.5 mm Jack: Timecode In/Out
_x000D_USB Connection: USB-C (USB 2.0)
_x000D_USB Operating Modes: Charging, Firmware Update
_x000D_Â
_x000D_CONTROL & SYNC
_x000D_Bluetooth®: 5.2 Low Energy
_x000D_Remote Control: Tentacle Setup App (iOS/Android)
_x000D_Synchronization: Via Bluetooth® (Tentacle Setup App)
_x000D_Jam-Sync via Cable
_x000D_Timecode In/Out: LTC via 3.5 mm Jack
_x000D_Drift: High Precision TCXO / Accuracy less than 1 frame drift in 24 hrs (–30°C to +85°C)
_x000D_Frame Rates: SMPTE 12M / 23.98, 24, 25 (50), 29.97 (59.94), 29.97DF, 30 (60)
_x000D_Â
_x000D_POWER
_x000D_Power Source: Built-in rechargeable Lithium Polymer Battery
_x000D_Battery Capacity: 2200 mAh
_x000D_Battery Operation Time: 6 hrs (highest brightness) to 80 hrs (lowest brightness)
_x000D_Â
_x000D_Battery Charging Time
_x000D_Standard Charge: 4-5 hrs
_x000D_Fast Charging: 2 hrs
_x000D_Â
_x000D_HARDWARE
_x000D_Mounting: Integrated Hook Surface on the Back for Easy Mounting, other Mounting Options available separately
_x000D_Weight: 222 g / 7.83 oz
_x000D_Dimensions: 211 × 54 × 19 mm / 8.3 × 2.13 × 0.75 in
_x000D_Â
_x000D_WHAT’S IN THE BOX?
_x000D_1 × TIMEBAR Multipurpose Timecode Display
_x000D_1 x 3.5 mm to BNC Cable
_x000D_1 × USB-A to USB-C Cable
_x000D_1 × Zipper Bag Long
_x000D_1 × Software License for Tentacle Sync Studio (macOS)
