Tentacle Sync TIMEBAR Timecode Slate

Tentacle Sync TIMEBAR Timecode Slate

_x000D_

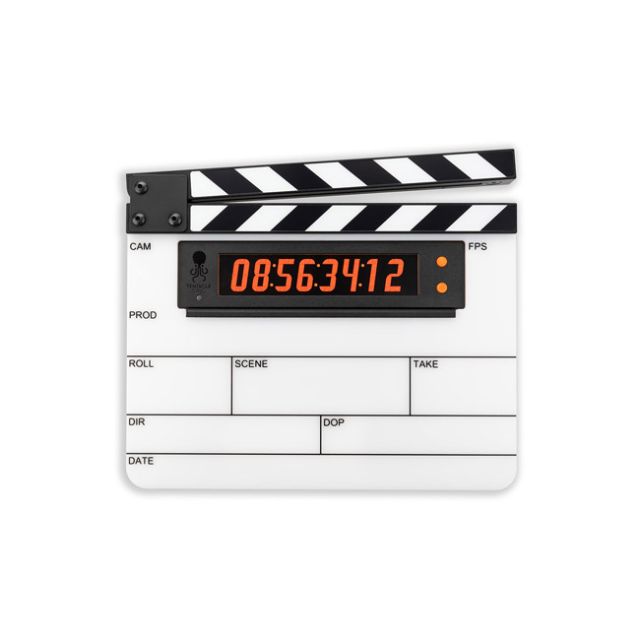

The TIMEBAR Timecode Slate is our all-in-one digital timecode slate kit, designed for seamless integration with the entire Tentacle Sync ecosystem. We‘ve collaborated with premium slate maker Filmsticks to create this unique, versatile solution. The kit includes the TIMEBAR a multipurpose timecode display—paired with a high-quality board, clapper sticks and a custom holder, that also serves as a mount for the TIMEBAR. This lightweight, yet robust, setup not only enhances portability but offers flexibility on set. The TIMEBAR can be swiftly attached or detached from the clapperboard, functioning independently as a timer, message display or stopwatch, whether mounted or not, all controlled effortlessly via our Setup App.

_x000D_

The OLED display not only provides high contrast, but also ensures low energy consumption, allowing the TIMEBAR to last throughout the entire day.

_x000D_

Additionally, the slate is built for longevity, with every component being user-replaceable. Even the long-lasting built-in lithium battery can be easily swapped by users after years of use, ensuring continued reliability. The TIMEBAR Timecode Slate is the ultimate tool for precise timecode management and efficient production workflows.

_x000D_



_x000D_

FEATURES

_x000D_

_x000D_
• Precision-engineered Acrylic Board (Roll/Scene/Take Layout)
_x000D_
• Durable Clapper Sticks
_x000D_
• Custom-designed TIMEBAR Holder/Mount
_x000D_
• High-contrast OLED Technology with a Wide Viewing Angle
_x000D_
• Typical Battery Runtime 24 hours
_x000D_
• Control, Sync & Operate all devices via Bluetooth®
_x000D_
• Timecode Generator with TC In & Out
_x000D_
• Timer & Stopwatch Functionality
_x000D_
• Text Display
_x000D_
• Tentacle Sync Studio Software License included (macOS)
_x000D_
• Limited Two Year Warranty
_x000D_
• TIMEBAR Designed and Manufactured in Germany
_x000D_

_x000D_



_x000D_

TECHNICAL SPECIFICATIONS

_x000D_

Connectivity

_x000D_

_x000D_
• 5 mm Jack: Timecode In/Out
_x000D_
• USB Connection: USB-C (USB 2.0)
_x000D_
• USB Operating Modes: Charging, Firmware Update
_x000D_

_x000D_



_x000D_

Control & Sync

_x000D_

_x000D_
• Bluetooth®: 5.2 Low Energy
_x000D_
• Remote Control: Tentacle Setup App (iOS/Android)
_x000D_
• Synchronization: Via Bluetooth® (Tentacle Setup App)
_x000D_
• Jam-Sync via Cable
_x000D_
• Timecode In/Out: LTC via 3.5 mm Jack
_x000D_
• Drift: High Precision TCXO / Accuracy less than 1 frame drift in 24 hours (-30°C to +85°C)
_x000D_
• Frame Rates: SMPTE 12M / 23.98, 24, 25 (50), 29.97 (59.94), 29.97DF, 30
_x000D_

_x000D_



_x000D_

Power

_x000D_

_x000D_
• Power Source: Built-in rechargeable Lithium Polymer Battery
_x000D_
• Battery Capacity: 2200 mAh
_x000D_
• Battery Operation Time Slate Mode: minimum 2 weeks
_x000D_
• Battery Operation Time Continuous Mode: approx. 6 (highest brightness) to 80 hours (lowest brightness)
_x000D_
• Battery Charging Time: Standard Charge: 4-5 hours, Fast Charge: 2 hours
_x000D_

_x000D_



_x000D_

Hardware

_x000D_

_x000D_
• Weight: 786 g / 7 oz (including battery)
_x000D_
• Dimensions: 280 x 226 x 43 mm / 11 x 8.9 x 1.7 inches
_x000D_

_x000D_



_x000D_

WHAT’S IN THE BOX?

_x000D_

_x000D_
• 1 x TIMEBAR Multipurpose Timecode Display
_x000D_
• 1 x Acrylic Board (280 x 190 x 5 mm / 11″)
_x000D_
• 1 x Clapper Sticks
_x000D_
• 1 x TIMEBAR Holder/Mount
_x000D_
• 1 x 3.5 mm to Straight BNC Cable
_x000D_
• 1 x USB-A to USB-C Cable
_x000D_
• 1 x Zipper Bag Long
_x000D_
• 1 x Software License for Tentacle Sync Studio (macOS)
_x000D_
• 1 x 1.5 mm Hex Key
_x000D_
• 1 x 3 mm Hex Key
_x000D_
• 1 x Spare Grub Screw
