Accusys A08S4-PS 8-Bay PCIe 3.0 Tower RAID System - Final Sale/No Returns

by Accusys MFG# ACCU-A08S4-PS

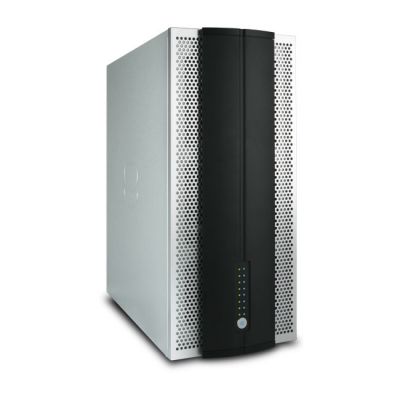

Accusys A08S4-PS 8-Bay PCIe 3.0 Tower RAID System

The Most Flexible Tower Ever, Expand as You Need


A08S4-PS, the 8-bay tower of ExaSAN Family, dedicates itself to those who don’t want to spend extra money and time on a second storage. With ExaSAN, you can expand as you need.

Higher Bandwidth, Higher Performance

A08S4-PS uses PCIe 3.0 technology, and can reach up to 1500 MB/s transfer speeds. This works just perfectly for solo editing.

Expand as You Need

When your work space needs more than what a tower can offer, you can easily expend it with up to 3 JBODs - meaning the capacity can go up to 448 Terabytes if necessary (by using 14TB HDD).

A08S4-PS on Mac

A08S4-PS is compatible with Windows, Linux and MAC. Use C2M adapter to convert PCIe channel to Thuderbolt 3.0, then you are ready to connect it to a MAC device easily.


Technical Specifications

  • System Type: 8-bay Tower RAID system
  • Host Interface: PCIe 3.0
  • Data Transfer Rate: 32 Gb/s
  • Disk Interface: SAS / SATA * 8
  • Disk Type: 3.5" / 2.5" / SSD
  • RAID Level: 0, 1, 5, 6, 0+1, JBOD
  • Cache Memory: 2G DDRlll 1866 with ECC-protected
  • JBOD Expansion: JBOD * 3
  • Operating Temperature:        0°C ~ 40°C
  • Storage Temperature: -20°C~ 70°C
  • Operating Humidity    : 5%~85%, Non-condensing
  • RAID Controller Functions
    • Online RAID Set Expansion and RAID LEVEL Migration
    • Online bad block data recovery and reallocation
    • Online disk scrubbing with data refresh and parity
    • Disk health monitorning by S.M.A.R.T
    • Array Roaming and Drive Traveling
    • Mirror Snapshot for fast backup and restore
    • Disk Lag Proof Technology to guarantee disk timely response
    • Equalization Mode to smooth the performance of sequential I/Os and reduce large fluctuation
  • Management
    • Java-based RADIGuard X GUI
    • Event log saving in text file for quick trobleshooting
    • Event notification by email (SMTP)
    • LED indicator for RAID & disk drives status in front
    • 400W (Single or Redundant). 110V~240V power supply
    • Two 12cm x 12 cm Fan with Smart Fan Control feature

Dimensions: L:369mm, W:175mm, H:394.6mm
Weight: 13.64kg / 30 lbs
