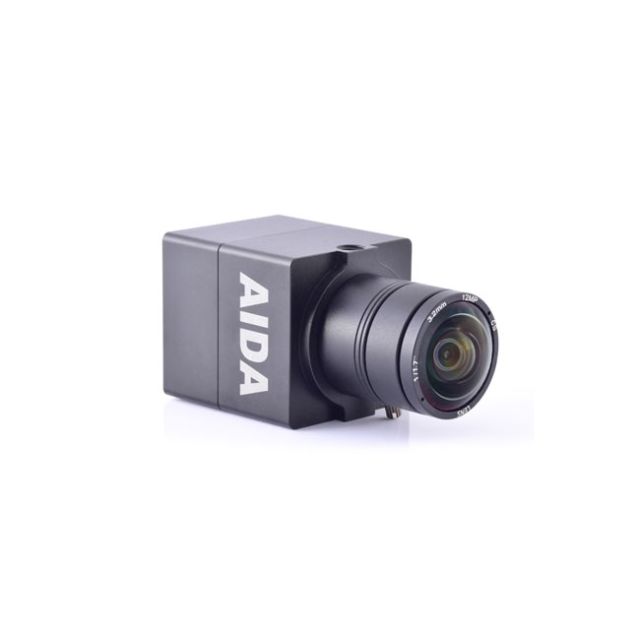

AIDA Imaging Micro UHD HDMI EFP Camera with TRS Stereo Audio Input

AIDA Imaging Micro UHD HDMI EFP Camera with TRS Stereo Audio Input

_x000D_

UHD-100 is the worlds smallest and cost effective 4K EFP camera solution. Combined with its advanced 4K UHD Progressive Scan CMOS sensor and Digital Imaging Processor the UHD-100 produces vivid true to color, sharp and detailed video by utilizing Dynamic Range, Adaptive White Balance, and Motion-Compensated Temporal Noise Reduction filter leads to an effective noise reduction for motion video even under low light conditions. The UHD-100 features a compact and rugged form factor with an inter-changeable lens design makes it highly versatile for a multitude of video applications.

_x000D_

MAIN FEATURES

_x000D_

_x000D_
_x000D_
• 4K UHD 1/2.5 Progressive Scan CMOS sensor captures sharp and vivid UHD video even under very low light conditions.
_x000D_
_x000D_

_x000D_

_x000D_
_x000D_
• Advanced digital imaging processor provides vivid and detailed images by utilizing Dynamic Range, Auto White Balance, and Noise Reduction.
_x000D_
_x000D_

_x000D_

_x000D_
_x000D_
• Superb motion-compensated temporal noise reduction lter for motion video without blurring.
_x000D_
_x000D_

_x000D_

_x000D_
_x000D_
• OSD control breakout cable with audio input and RS-485 for remote communication.
_x000D_
_x000D_

_x000D_

_x000D_
_x000D_
• Flawlessly relays multi-channel embedded audio via HDMI 1.4
_x000D_
_x000D_

_x000D_

_x000D_
_x000D_
• Interchangeable lens design compatible with CS and C mount lenses.
_x000D_
_x000D_

_x000D_

_x000D_
_x000D_
• Perfectly suited for broadcast, pro audio/video, and security.
_x000D_
_x000D_

_x000D_

_x000D_
_x000D_
• Conforming with SMPTE 292M, 424M and 2081-10
_x000D_
_x000D_

_x000D_

_x000D_
_x000D_
• Versatile, compact, and rugged design.
_x000D_
_x000D_

_x000D_



_x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_

SPECIFICATIONS

_x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_

Video

_x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_

Image Sensor	1/2.5" Progressive CMOS
Sensor Size	Diagonal 7.20mm
Effective Pixels	Horizontal: 3840, Vertical: 2202
Pixel Size	1.62 µm (H) x 1.62 µm (V)
Resolution	2160 30p/29.97p 1080 60p/59.94p/50p/30p/29.97p/25p 1080 60i/59.94i/50i 720 60p/59.94p/50p/30p/25p
Output	HDMI 1.4
Color Space	4:2:2 (YCbCr) 10bit

_x000D_ _x000D_ _x000D_ _x000D_ _x000D_

Function

_x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_

White Balance	AWB / AE / AF
Exposure	Full Auto, Bright, Shutter Priority, Iris Priority, Manual
Others	WDR, DIS (Digital Image Stabilization), 2D/3D Noise Reduction, Digital Slow Shutter, Black Level Compensation, Flicker Detection

_x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_
_x000D_

Lens

_x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_

Lens	C/CS Mount (Default UHD 3.6mm Lens)

_x000D_ _x000D_ _x000D_ _x000D_ _x000D_

Standard

_x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_

SMPTE

SMPTE 292M, SMPTE 424M, SMPTE 2081-10

_x000D_ _x000D_ _x000D_ _x000D_ _x000D_

Physical

_x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_

Camera Control	RS-485 OSD Button
Operation Temp	32°F - 104°F
Dimension	38mm x 38mm x 65mm / 1.49" x 1.49" x 2.55"
Weight	140g / 0.30 lbs
Power	12VDC (+9 - +15VDC)
