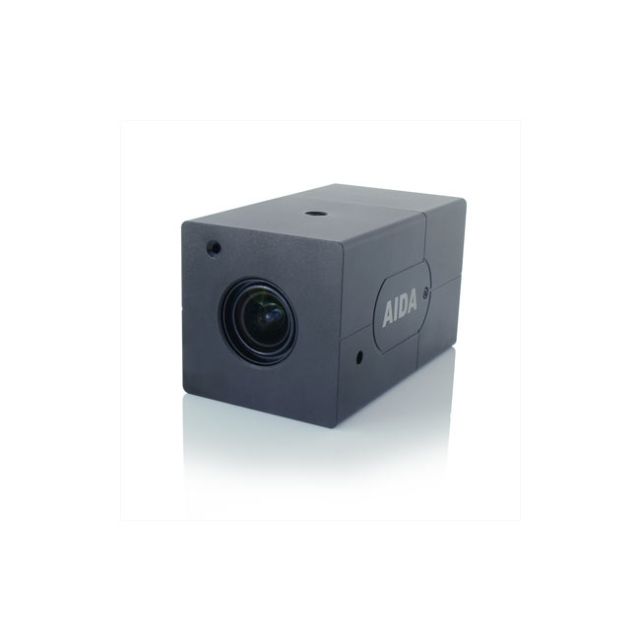

AIDA Imaging UHD-X3L 4K HDMI POV Camera

AIDA Imaging UHD-X3L 4K HDMI POV Camera

by AIDA Imaging MFG# AIDA-UHD-X3L
$695.00

AIDA Imaging UHD-X3L 4K HDMI POV Camera

_x000D_

MICRO 4K POV CAMERA Professional micro 3X Zoom POV Camera

_x000D_

The UHD-X3L is a professional micro POV camera with 3X optical zoom capabilities. Ideal for wide angle viewing, the UHD-X3L is robust in its features, integrating 4K UHD Progressive CMOS sensors with a digital image processor to maintain sharpness in quality without compromise. The UHD-X3L is great under low light conditions with its motion compensated temporal noise reduction filter. Designed for versatility, durability, and cost effectiveness for smooth integration into any broadcast, professional, or corporate AV environment.

_x000D_

MAIN FEATURES

_x000D_
    _x000D_
  • 4K UHD 1/2.5 Progressive Scan CMOS sensor captures sharp and vivid UHD video even under very low light conditions.
    • _x000D_
  • 3X optical zoom features 25~78 wide angle of view.
    • _x000D_
  • Built-in zoom lens offers zoom, focus and iris control.
    • _x000D_
  • Advanced digital imaging processor provides vivid and detailed images by utilizing Dynamic Range, Auto White Balance, and Noise Reduction.
    • _x000D_
  • Superb motion-compensated temporal noise reduction filter for motion video without blurring.
    • _x000D_
  • OSD control breakout cable with power input and RS-485 for remote communication.
    • _x000D_
  • Perfectly suited for huddle rooms, broadcast, pro audio/video, and security.
    • _x000D_
  • Versatile, compact, and rugged design.
    • _x000D_
_x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_

SPECIFICATIONS

_x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_

Video

_x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_
Image Sensor1/2.5" Progressive CMOS
Sensor SizeDiagonal 7.20mm
Effective PixelsHorizontal: 3840, Vertical: 2202
Pixel Size1.62 μm (H) x 1.62 μm (V)
Resolution2160p: 3840 x 2160
1080p / 1080i : 1920 x 1080
720p : 1280 x 720
Resolution/Rate4K2160p : 30 / 29.97 / 25 / 24
1080p : 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24
1080i : 60 / 59.94 / 50
720p : 60 / 59.94 / 50
OutputHDMI 1.4
Color Space4:2:2 (YCbCr) 10 bit
_x000D_ _x000D_ _x000D_
_x000D_

Function

_x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_
White BalanceAWB / AE / AF
ExposureFull Auto, Bright, Shutter Priority, Iris Priority, Manual
OtherWDR, DIS (Digital Image Stabilization), 2D/3D Noise Reduction,
Digital Slow Shutter, Black Level Compensation, Flicker Detection
_x000D_ _x000D_  _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_
_x000D_

Lens

_x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_
Lens3X Optical Zoom Lens, 3.85mm/78° (Wide) ~ 13.4mm/25° (Tele)
_x000D_ _x000D_ _x000D_
_x000D_

Standard

_x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_
SMPTESMPTE 292M, SMPTE 424M, SMPTE 2081-10
_x000D_ _x000D_ _x000D_
_x000D_

Physical

_x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_
Camera ControlRS-485, OSD Button
Operation Temp32°F - 104°F
Dimension48mm x 48mm x 83.09mm / 1.89" x 1.89" x 3.27"
Weight140g / 0.30lbs
Power12 VDC (+9 - +15VDC)
_x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_
