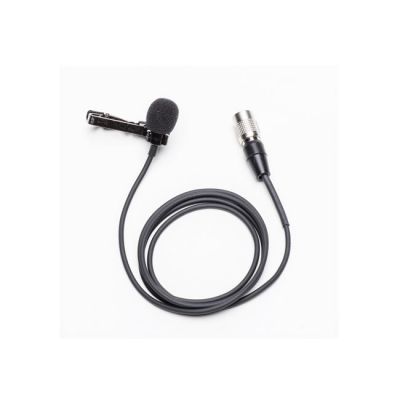

Azden Broadcast Lapel Mic with Locking 4-Pin Hirose Plug

Azden Broadcast Lapel Mic with Locking 4-Pin Hirose Plug

The Azden EX-50H lapel microphone is designed to improve the sound quality of Azden’s broadcast quality wireless systems. The EX-50H is fitted with a more sensitive microphone element that offers a more nuanced full bodied sound with wider response when compared to the standard lapel microphone supplied with Azden systems. The EX-50H’s specialized Hirose connector is compatible with the 2000BT and 1201BT transmitters, as well as the now discontinued models 41BT and 51BT.

• Microphone Type: Electret condenser

• Frequency Response: 30 to 20,000 Hz

• Sensitivity: -43 dB @ 1 kHz (0 dB = 1 V/Pa)

• Impedance: 2.2 kΩ

• SPL: 100 dB

• S/N Ratio: >50 dB

• Power Requirement: 1 to 11 VDC

• Power Consumption: 0.5 mA or less

• Connector Type: 4-pin Hirose
