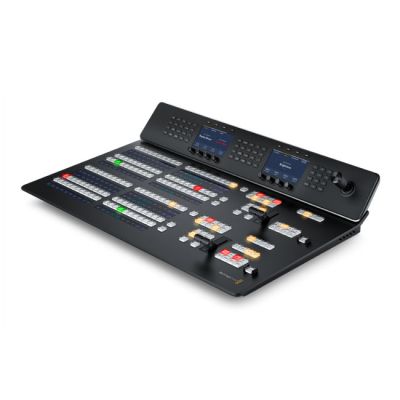

The 2 M/E model features 2 M/E rows with 20 input buttons and 2 independent system control LCDs for each row. Plus each row can control up to 4 M/Es in larger switchers. Both rows and all input buttons include LCDs for custom labeling. Each row also includes an independent select bus!
Switch cameras to airÂ instantly!
ATEM Constellation has been designed to give you the most advanced live switching workflow. Internally, ATEM Constellation has separate program and preview buses that you can use to quickly and accurately switch sources. ATEM Constellation lets you see your preview bus selection by using an aux output or on the multi view. Then all you need to do is make selections on the preview bus of the advanced panel, which will appear on your preview screen, allowing you to see your source before it goes on air. Then you can bring the source online by pressing cut or auto! You can also switch sources on the program bus if you need them to go liveÂ immediately!
Select and customizeÂ transitions
Get total control over your transitions with aÂ dedicated hardware button for each transition type! When selecting transition types, aÂ system control LCD screen will display the options for that transition, so you can change its parameters without navigating through complex menus. It's all instantly available! That gives you multiple ways to switch. Simply select aÂ new source on the preview bus, then press CUT for aÂ cut transition, or AUTO to use the selected transitions such as mix, dip, wipe or DVE! You can even cut directly on the program bus. With ATEM Advanced Panels you get all the controls you need to access all transition typesÂ fast.
Mix, dip, wipe, DVE andÂ more!
ATEM switchers give you aÂ huge range of transition styles! Mix transition will smoothly blend between sources just like an NLE cross dissolve. Standard SMPTE wipes are included and wipes can have edge softening for smooth dreamy transitions that are more exciting than simple cross dissolves. Dip transitions create aÂ dip to color effect, however because you can dip to any video source, you could create really innovative effects! DVE transitions useÂ the DVEÂ to create crazy moves where the whole foreground image moves! Plus you can combine the DVE and aÂ still image from the media pool to create graphic wipes!Â The tâ€‘barÂ fader even lets you manually position theÂ transition for totalÂ control!
Transform wipesinto excitingÂ effects!
Power up your wipe transitions by accessing parameters to transform them into excitingÂ effects. WhileÂ you can select the wipe pattern directly on the LCD, you can also add lots of customization to suit your production style. You can adjust parameters such as symmetry and softness, but there are also adjustments for colored borders with variable width and softness,Â as wellÂ as the position of the centre of the wipe. You can even use the dedicated joystick to set precise wipe patternÂ positioning!
Amazing digital videoÂ effects
ATEM Advanced Panels are perfect for positioning the DVE for custom picture in picture effects because they include aÂ joystick. The joystick allows the position to be set precisely and rotating the knob will change DVE size. You can also use the soft knobs and menus on the LCD to adjust the DVE position, size and other DVE features such as lighting and drop shadow effects.Â The DVEÂ can be setup to fly graphics into frame or select any of the pre programed pushÂ and squeezeÂ transitions.
Get perfect green screenÂ keying
The system control knobs are ideal when doing chroma keying because you can finely adjust each parameter for clean key edges and seamless multi layer compositing effects. Unlike software control where you need to look at the user interface, the ATEM Advanced Panels have control knobs that you can hold while adjusting key parametersÂ and lookingÂ at the video output live to ensure the key is seamless. Only fine adjustment of key settings live while watching the video, ensures your key isÂ perfect.
Manually blendÂ transitions
Amazing live performances often require transitionsÂ that needÂ to be controlled manually.Â The ergonomicallyÂ designed tâ€‘bar control lets you ride transitions perfectlyÂ as partÂ of the live performance! Sometimes the emotionÂ of aÂ liveÂ event means you need to feel aÂ transition toÂ getÂ it perfectlyÂ in sync with the camera operators and talent.Â Like aÂ conductor,Â your ATEM Constellation is part of the performance and drives the mood as the productionÂ unfolds.
Perfect and predictableÂ transitions!
Just below the panel fader bar is the auto transition button. Selecting auto will instantly perform the transition type you have set. This ensures you can accurately select your source and transition type before triggering the action, so you always know what is going to happen and there's much less chance of mistakes going to air. Auto transitions can be programed for durations from 1 to 250 frames and the benefit is each transition is consistent through yourÂ program.
Simulate neweffects while onÂ air
Unlike the simpler front panel on ATEM Constellation,Â the hardwareÂ panel includes aÂ very useful preview transition button that lets you simulate aÂ transition or effect beforeÂ you useÂ it!Â The PREV TRANS button helps you avoid on air mistakes when preparing live transitions by displaying the result on your preview video output or on the multiview screen on the ATEM Constellation. Preview transition is the only way to accurately setup complicated transitions and multiÂ layered keyÂ effects.
Fade toÂ Black
Finish yourprogram withÂ style!
The built in fade to black button controls the entire output of the switcher! Selecting fade to black (FTB) will smoothly fade your program output to black at aÂ preset transition rate. Because FTB is at the end of all processing, it ensures all video layers fade out together. You can even select to fade out audio when FTB is triggered. That's useful for the start and end of your production or for fading out to commercial breaks. FTB also includes button guards to stop accidentalÂ triggering!
Get precise DVEÂ control
Move elements around the screen usingÂ the Joystick!Â With full 3Â Axis control you can adjust X, YÂ and ZÂ positions of wipe patterns and position the ATEM Constellation DVEs. The joystick control with the DVE is ideal to position live video over video. Scale the size, position up down or left and right for the perfect picture in picture effect. You can also use the joystick to move the DVE and enter start and end keyframe screen positions for your own customized animated DVEÂ moves.
Change switcher settings from theÂ menus!
You get full control right from the panel using the system control LCDs. Each system control LCD has aÂ direct access keypad with aÂ button for each function, and LCD and softÂ knobs andÂ buttons. Simply push aÂ keypad button to see the parameters displayed in the large LCD so you can use the soft buttons and knobs to change each setting. Its incredibly easy and very fast! There's hundreds of switcher parameters available for keyers, transition selection, DVE, color generators as well as switcher video standard, multiview setup and even input button remapping! You can even save and recall 10 individual panel set ups and store them in the panel! Plus the 2Â M/E model as 2Â totally independent system control menus, while the 4Â M/E model has aÂ massive 4Â independent system controlÂ LCDs!
Change video outputsÂ with a single buttonÂ press
As well as the input buttons, each M/E row has aÂ dedicated "select bus" for routing video into processing and selecting sources to the aux outputs. With so many aux outputs, youÂ can selectÂ any source into any output, just like an SDI router. Conveniently located above the ME row buttons, the select bus lets change sources with aÂ single button press so its very fast to use. There are even labels to show you what source is on each button. The select bus also lets you directly select inputs for other internal processing such as the keyers andÂ DVE.Â Only the selectÂ bus lets you route signals internallyÂ and via the auxÂ outputsÂ instantly!
Manage built ingraphics andÂ titles
You can select stills from the media pool in the panel LCD menus and simply pressing the media button lets you access the media player and change which image in the media pool is sent to the media player as aÂ video source. You can select any loaded still by scrolling through the list of media pool images, which are listed showing the original file name of each image. This means you can quickly change stills and titles right from the same panel you are working on, eliminating the need to change control panels just to change aÂ title.
Powerful Custom Macros
Trigger macrosat the touch ofÂ aÂ button!
Another benefit of the ATEM Advanced Panel is the built in macros, where you can very easily record your own custom macros and trigger them to playback with the push of aÂ button. This means that you donâ€™t need to use aÂ computer to work with macros because you can trigger them from the same hardware panel you are switching from. If you edit or modify aÂ macro the change will appear on all the connected hardware or software control panels because the macros are stored inside the ATEM Constellation itself. You can set up different macros to trigger under each macro button and the thin strip LCD under the buttons will show you which button as which macro you haveÂ assigned.
Customizable ControlÂ Options
Control yourÂ ATEMÂ switcher from anywhere inÂ theÂ world!
Because ATEM Constellation includes aÂ standard Ethernet connection, you can use this connectionÂ to controlÂ it remotely from long distances away.Â The ATEM AdvancedÂ Panel, the ATEM CameraÂ Control panelÂ and the ATEM Software ControlÂ for Mac andÂ Windows all use an Ethernet connection to theÂ ATEM Constellation,Â so you can setup any combination of panels you need, for the freedomÂ to decideÂ yourÂ ideal controlÂ setup.Â What thisÂ meansÂ is youÂ canÂ have multipleÂ control panels all working together in parallel and at the same time. Then all theseÂ panels can beÂ located anywhere so you could control yourÂ ATEM ConstellationÂ from the other side of theÂ world!
