Blackmagic Design DeckLink IP HD
Blackmagic Design DeckLink IP HDÂ
The Perfect Capture and Playback for 2110 IP Broadcast Systems!
DeckLink IP cards are the easiest way to capture and play back video directly into 2110 IP based broadcast systems! They have the same DeckLink features so all your existing software will just work! DeckLink IP cards support multiple video channels plus each channel can capture and play back at the same time. This means you can build racks of servers generating broadcast graphics, virtual sets, or GPU based AI image processing, all directly integrated into 2110 IP broadcast infrastructure. You can even use DaVinci Resolve for 2110 IP based broadcast editing workstations! DeckLink IP features aÂ high speed PCIe connection so it works on the latest Mac Pro, Windows and LinuxÂ computers.

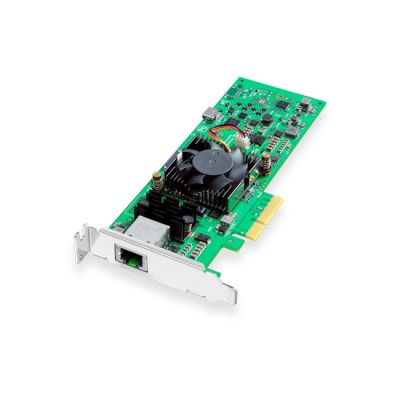

DeckLink IPÂ HD
DeckLink IP features 3 channels of capture and playback to 2110 IP broadcast systems via a single RJ45 style Ethernet connection. It supports all 720p, 1080i and 1080p video standards up toÂ 1080p60.
10G Ethernet for Multiple SMPTE 2110 IP Channels
DeckLink IP cards conform to the SMPTE ST2110 standard for IP video, which specifies the transport, synchronization and description of video, audio and ancillary data over managed IP networks for broadcast. ItÂ also keeps video sources in sync using aÂ common PTP clock. DeckLink IP supports SMPTE-2110-20 uncompressed video, SMPTE-2110-21 traffic shaping/timing, SMPTE-2110-30 audio and SMPTE-2110-40 for ancillary data. TheÂ big advantage of SMPTE 2110 is all video, audio and ancillary data are transported independently over the network. Plus DeckLink IP supports multicast, which is an extremely efficient way of distributing video, audio and data from aÂ single source to multipleÂ destinations.
Built in Video Firewall for Total IP Network Security
The problem with computers and 2110 IP video networks is the vulnerability to rogue software or even hackers. Thatâ€™s because anyone can send data to the computerâ€™s Ethernet connection. However DeckLink IP eliminates this problem because all video is transferred using frame buffers. Itâ€™s like aÂ video based firewall! This means the DeckLink IP Ethernet port is isolated from anything other than video and audio. Instead, like all DeckLink cards, the video and audio are transferred to on board DeckLink frame buffers where video playback is managed and then converted to 2110 IP video channels. This means itâ€™s totally impossible for rogue software or hackers to access the 2110 IP networkÂ directly!
High Speed 4 Lane PCIe Connection
With aÂ high speed 4Â lane PCI Express interface, DeckLink IP cards feature aÂ PCIe connection to the host computer that's fast enough to handle multiple HD video channels, as well as simultaneous capture and playback on each of the channels. With PCI Express, you get very low latency combined with highly accurate time synchronization to the software that's capturing or playing video. Only DeckLink IP cards give you this performance all while using aÂ simple and low cost 4Â lane PCIe connection. This means you can install DeckLink IP into compact and very low cost computers. Plus DeckLink IP HD and DeckLink IP HD Optical are low profile, so they can be installed in rack mountÂ servers.
Supports All SD and HD Formats up to 1080p60!
DeckLink IP connections are multi rate so they support all SD and HD formats. Plus the DeckLink IP/SDI HD model includes both 2110 IP and 3G-SDI on the same card, so it can connect to all your existing SDI broadcast equipment, while simultaneously connecting to new IP based infrastructure. OrÂ you can just use the 3G-SDI output for local monitoring! InÂ standard definition, DeckLink IP supports both 525i59.94 and 625i50 standards. InÂ high definition, DeckLink IP cards support all 720p video standards up to 720p60, all 1080 interlaced standards up to 1080i60 and all 1080p standards up to 1080p60. Plus there is no complex change over as the cards can switch instantly to aÂ new videoÂ standard.
Get True 10-BitBroadcast Video Quality
DeckLink IP cards are designed to support the highest quality video. YouÂ get support for capture and playback to popular video formats such as Apple ProRes, DNxHD or even 10-bit uncompressed, so youâ€™re never locked into aÂ single file format. 10-bit is the most commonly used television standard as colors can be represented with 4Â times the precision of 8-bit video. Only working with 10-bit uncompressed video will ensure all images are aÂ perfect pixel for pixel clone of the original source, so youâ€™re always working at the absolute highest quality possible. This means you get the sharpest green screen keying, seamless VFX compositions and superior colorÂ correction!
Includes NMOS Protocol for Building a Virtual Router
DeckLink IP supports the NMOS interface specifications so all 2110 IP video devices can operate together as aÂ large virtual router. Plus Videohub Smart Control can route sources to destinations on 2110 IP networks because it can act as an NMOS controller. TheÂ NMOS interface specification describes how SMPTE 2110 devices such as DeckLink IP are discovered and controlled on IP networks. DeckLink IP supports IS-04 for discovery and registration of IP video devices and IS-05 for connection management between IP video devices. This means you can make connections between sources and destinations just like aÂ traditional SDI router, but all within the EthernetÂ network!
Works With All Popular Video Software
DeckLink IP supports all popular video software, so you're free to work with the tools you already know and love! DeckLink IP is perfect for using DaVinci Resolve as aÂ 2110 IP based broadcast editing and color correction solution. Because DeckLink IP supports capture and playback at the same time, you can even use the live grading feature in DaVinci Resolve to capture video, apply color correction and then output it all at the same time! DeckLink IP also works with other editing software including Final Cut Pro, Media Composer, Premiere Pro and more! YouÂ can even create stunning visual effects with Fusion, After Effects and Photoshop. Plus aÂ Windows WDM driver is alsoÂ included!
Compatible with DaVinci Resolve
DeckLink IP is the perfect solution for DaVinci Resolve! Only DaVinci Resolve includes Hollywood level editing, color correction, VFX and audio post production in the single software tool. Plus DaVinci Resolve is aÂ free download for Mac, Windows and Linux, so there are no monthly license costs. TheÂ editing uses aÂ familiar track based layout with lots of trim and edit tools, as well as loads of high quality transitions, effects and title templates. Then you can add professional DaVinci color correction! DaVinci color correction supports full 32â€‘bit float YRGB processing with tools including primaries, secondaries, power windows, 3D object tracking, advanced AI tools andÂ more.
Use Powerful Broadcast Graphics Tools
When creating broadcast graphics and titles, you will want to use the same tools graphic designers are already familiar with, so you get the most creativity, with no retraining required. AllÂ DeckLink cards work with Fusion, which is the visual effects software integrated into DaVinci Resolve, as well as Adobe After Effects and Photoshop. Fusion Studio is aÂ powerful node based compositing VFX tool with 2D and 3D environments, hundreds of effects and more. Plus you can download and use Fusion free of charge in DaVinci Resolve! YouÂ can use the included Blackmagic Media Express software to capture and play back video into files that can be loaded into Fusion, After Effects orÂ Photoshop.
Build Custom Broadcast Automation Servers
When you need to run your broadcast programming remotely, for either aÂ large broadcast network or local television station, DeckLink IP can be easily combined within your custom broadcast automation systems. There are so many fantastic automation tools and on the Mac platform, you can use Tools On Air just: Broadcast Suite, Softron OnTheAir, MovieRecorder and OnTheAir CG. OnÂ the Windows platform, you get compatibility with Vidblaster X, Studio and Broadcast, Uniplay and Playbox AirBox! These powerful software tools work with DeckLink IP to manage all types of broadcast automation tasks, and they are proven solutions that are currently running thousands of television stationsÂ worldwide.
Build StreamingServers for Global Broadcasting
DeckLink IP works the same as other DeckLink cards, so itâ€™s also fully compatible with popular video and audio streaming software. This means you can build streaming workstations that let you live stream to millions of global viewers online! OnÂ the Mac, you get fantastic streaming solutions such as Open Broadcaster, Wirecast, Livestream Producer and more. When streaming on Windows, you get compatibility with Open Broadcaster, Xsplit Broadcaster, Wirecast and Livestream Producer. With DeckLink IP, you can take any 2110 IP feed and convert into live streams to as many online platforms as you need. OrÂ with the ATEM Streaming Bridge, you can even link up remote broadcastÂ networks.
Includes Media Express Software
If you're using video software that doesn't have direct hardware support for capture and playback, then Blackmagic Media Express is the perfect solution, plus it comes free with every DeckLink! Media Express lets you capture and playback in uncompressed YUV 4:2:2 QuickTime, AVI and DPX, ProRes, DVCPRO and MJPEG file formats. Itâ€™s aÂ fantastic solution to capture from old broadcast decks for archiving. Because the speeds of flash based storage media can vary aÂ lot between brands, DeckLink IP also includes Blackmagic Disk Speed Test. This means you can check the speed of media disks, with the results displayed in frames per second at various televisionÂ standards.
Develop Custom Solutions with the DeckLink SDK
Available free with all DeckLink cards is an advanced developer SDK for Mac, Windows and Linux that you can download free of charge! TheÂ developer SDK makes it easy to develop your own custom solutions for in house use, or to sell to other broadcasters! TheÂ DeckLink SDK provides low level control of hardware when you need flexibility, as well as high level interfaces which are aÂ lot easier to use when you need to perform more common tasks. Thousands of manufacturers and developers use Blackmagic DeckLink cards in their products, so you get the confidence that the DeckLink SDK will provide aÂ solid foundation for developing commercial quality broadcastÂ solutions.
Use DeckLink IP In Your Products!
If you are aÂ manufacturer who would like to use DeckLink IP in your products, then you can contact Blackmagic Design's OEM team for more information. TheÂ first step is to download the Desktop Video SDK which has the DeckLink API documentation and example code, which should be aÂ great way to get started. However if you have any trouble getting your code to work, please contact us, or visit us at trade shows such as NAB or IBC. OurÂ developer support engineers can offer suggestions and help you with your code. Then when you have your solution working, you can contact us to learn more about bulk buying DeckLink cards. OrÂ if your volume is low, you can simply buy from our reseller networkÂ worldwide!
