Blackmagic Design DeckLink Mini Monitor 4K

by Blackmagic Design MFG# BMD-BDLKMINIMON4K
$195.00

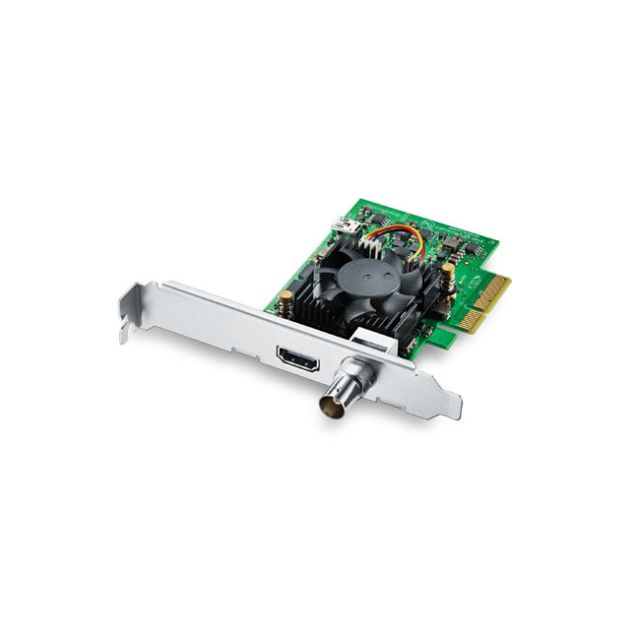

Blackmagic DeckLink Mini Monitor 4K


DeckLink Mini Monitor 4K is a low profile PCIe playback card, featuring 6G-SDI and the latest HDMI 2.0a connections so you can monitor all formats up to 2160p30 from your computer! The SDI and HDMI outputs let you connect to any television or monitor and automatically detect and switch between all video formats. You even get high dynamic range playback and metadata over HDMI, along with support for Rec. 2020 color space. You can even develop your own custom playback solutions using the Blackmagic Desktop Video SDK for Mac OS X, Windows and Linux! Includes two PCIe shields for both full height and low profile slots.








Connections


SDI Video Output


1 x 10 bit SD/HD/Ultra HD switchable.


SDI Audio Output


16 channels embedded in SD, HD, Ultra HD.


HDMI Video Output


1 x HDMI 2.0a connector.


HDMI Audio Output


8 Channels embedded in SD, HD, Ultra HD.


Computer Interface


Gen 2 PCIe Express 4 lane, compatible with 4, 8 and 16 lane PCIe slots.











Codecs


Supports: AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2.











Video Standards


SD Format Support


525i59.94 NTSC, 625i50 PAL


HD Format Support


720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60


Ultra HD Format Support


2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30


4K DCI Format Support


4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p


SDI Compliance


SMPTE 259M and 292M.


Audio Sampling


Television standard sample rate of
48 kHz and 24 bit.


Video Sampling


4:2:2


Color Precision


10-bit


Color Space


REC 601, REC 709, REC 2020


HDMI Configuration


HDMI automatically configures to connected display.


HDMI Resolution


Pixel for pixel HD resolution input to connected device.


HDMI Color Precision


10-bit


Multiple Rate support


SDI and HDMI are switchable between standard definitlon and high definition.
