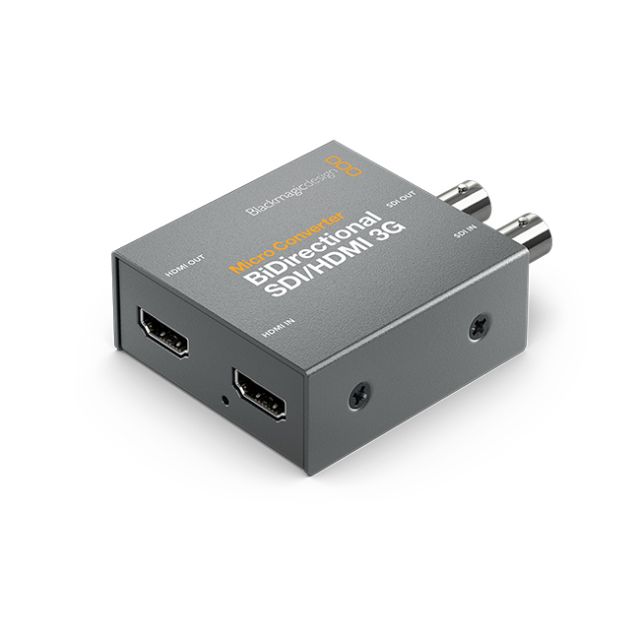

Blackmagic Design Micro Converter - BiDirectional SDI/HDMI 3G
Description
_x000D_Get the world’s smallest bidirectional broadcast quality converter! Convert SDI to HDMI and at the same time HDMI to SDI, even in different formats! Plus it supports camera control protocol conversion, so you can use Blackmagic Pocket Cinema Cameras with professional SDI live production switchers!Â
_x000D_Connections
_x000D_SDI Video Inputs
_x000D_1 x SD, HD or 3G-SDI.
_x000D_SDI Video Outputs
_x000D_Automatically matches the HDMI video input.
_x000D_HDMI Video Inputs
_x000D_HDMI Type A in.
_x000D_HDMI Outputs
_x000D_HDMI Type A out.
_x000D_Multi Rate Support
_x000D_Auto detection of SD or HD.
_x000D_Updates, Configurations and Power
_x000D_USB Type‑C.
_x000D_Reclocking
_x000D_Yes
_x000D_ _x000D_Standards
_x000D_SDI Video Standards
_x000D_525i59.94 NTSC, 625i50 PAL
_x000D_HD Video Standards
_x000D_720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
2Kp23.98Â DCI, 2Kp24Â DCI, 2Kp25Â DCI, 2Kp29.97Â DCI, 2Kp30 DCI, 2Kp47.95Â DCI, 2Kp48Â DCI, 2Kp50 DCI, 2Kp59.94Â DCI, 2Kp60 DCI
2KPsF25Â DCI, 2KPsF29.97Â DCI, 2KPsF30 DCI
SDI Compliance
_x000D_SMPTEÂ 259M, SMPTEÂ 292M, SMPTEÂ 296M, SMPTEÂ 424M, SMPTEÂ 425M
_x000D_SDI Video Rates
_x000D_SDI video connections are automatically switchable between standard definition and high definition, and user selectable for level A or B via setup utility.
_x000D_SDI Color Precision
_x000D_4:2:2
_x000D_SDI Color Space
_x000D_YUV
_x000D_SDI Auto Switching
_x000D_Automatically detects SD, HD and 3G-SDI
_x000D_HDMI Video Standards
_x000D_525i29.97 NTSC, 625i25 PAL
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60
HDMI Color Precision
_x000D_4:2:2
_x000D_HDMI Color Space
_x000D_YUV
_x000D_Copy Protection
_x000D_HDMI input is unable to capture from copy protected HDMI sources.
Always confirm copyright ownership before capture or distribution of content.
Camera Control
_x000D_Bidirectional signal conversion supports Blackmagic Camera Control and Tally.
_x000D_ _x000D_Software
_x000D_Software Control
_x000D_Mac and Windows™ software via USB.
_x000D_Internal Software Upgrade
_x000D_Via USB.
_x000D_ _x000D_Operating Systems
_x000D_Mac 10.14 Mojave,
Mac 10.15 Catalina or later.Â
Windows 10.
_x000D_Settings Control
_x000D_Via software utility.
_x000D_Power Requirements
_x000D_Power Consumption
_x000D_2.5 W
_x000D_Operational Voltage Range
_x000D_4.4 to 5.25V DC
_x000D_ _x000D_Environmental Specifications
_x000D_Operating temperature
_x000D_0° to 40° C (32° to 104° F)
_x000D_Storage temperature
_x000D_-20° to 60° C (-4° to 140° F)
_x000D_Relative Humidity
_x000D_0% to 90% non-condensing
_x000D_What's Included
_x000D_Micro Converter BiDirectional SDI/HDMI 3G
_x000D_ _x000D_Warranty
_x000D_3 Year Limited Manufacturer's Warranty.
