Blackmagic Design Micro Converter - HDMI to SDI with Power Supply - Final Sale/No Returns

by Blackmagic Design MFG# BMD-CONVCMIC/HS/WPSU
$55.00

Blackmagic Micro Converter - HDMI to SDI with Power Supply


Take the HDMI output from laptop computers or consumer cameras and convert it to SDI for use with broadcast switchers, routers, monitors and more! The multi rate 3G-SDI automatically switches between all SD and HD formats up to 1080p60. You get 2 SDI outputs, support for Level A and Level B equipment, and power over USB


Connections


SDI Video Outputs


Automatically matches the SD, HD or 3G-SDI HDMI video input.


HDMI Video Inputs


HDMI Type A in.


Multi Rate Support


Auto detection of SD or HD.


Updates, Configurations and Power


Micro USB.


Reclocking


Yes


Standards


SDI Video Standards


525i59.94 NTSC, 625i50 PAL


HD Video Standards


720p50, 720p59.94, 720p60


1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60


1080i50, 1080i59.94, 1080i60


SDI Compliance


SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M


SDI Video Rates


SDI video connections are switchable between standard definition and high definition, and user selectable level A and B via setup utility.


SDI Color Precision


4:2:2


SDI Color Space


YUV


SDI Auto Switching


Automatically detects SD, HD and 3G-SDI


HDMI Video Standards


525i29.97 NTSC, 625i25 PAL
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60


HDMI Color Precision


4:2:2


HDMI Color Space


YUV


Copy Protection


HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.


Software


Software Control


Mac OSX™ and Windows™ software via micro USB.


Internal Software Upgrade


Via micro USB.


Operating Systems


macOS 10.12 Sierra,
macOS 10.13 High Sierra or later,


Windows 8.1 or Windows 10.


Settings Control


Via software utility.


Power Requirements


+5V universal power supply included with international socket adapters for all countries.


Power Consumption


2.0 Watts


Operational Voltage Range


4.4 to 5.25V DC


Physical Specifications


Environmental Specifications


Operating temperature


0° to 40° C (32° to 104° F)


Storage temperature


-20° to 60° C (-4° to 140° F)


Relative Humidity


0% to 90% non-condensing


What's Included

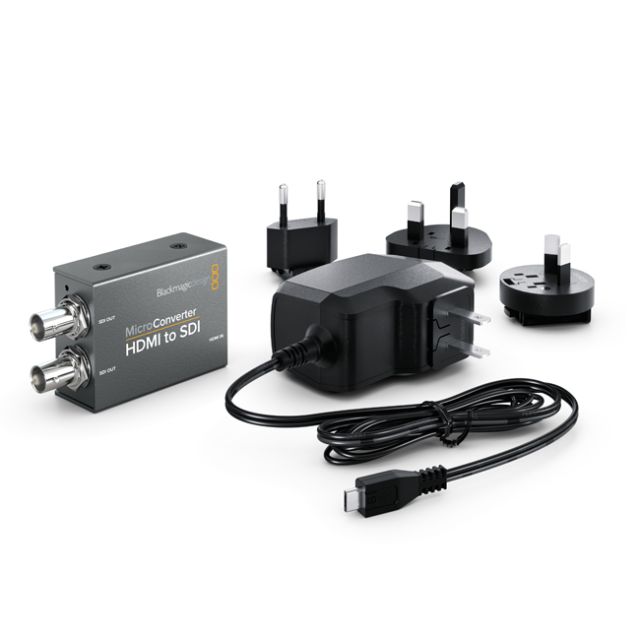

Micro Converter HDMI to SDI wPSU


+5V universal power supply with international socket adapters


Warranty


3 Year Limited Manufacturer's Warranty.
