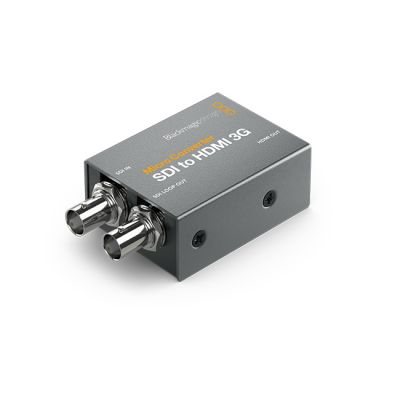

Blackmagic Design Micro Converter - SDI to HDMI 3G (No Power Supply)

by Blackmagic Design MFG# BMD-CONVCMIC/SH03G
$59.00

Blackmagic Micro Converter - SDI to HDMI 3G (No Power Supply)

*** Note: This product does not include a power supply

This model has been specifically designed for professional monitoring. It includes a 17 point 3D LUT for color calibrating any monitor, projector, or television. You can even output the 3D LUT on the SDI loop output! Plus it supports DCI formats and film rates including 1080p24, 1080p47.95 and 1080p48

Connections


SDI Video Inputs


1 x SD, HD or 3G-SDI.


SDI Video Outputs


1 x SDI loop out.


HDMI Outputs


HDMI Type A out.


Multi Rate Support


Auto detection of SD or HD.


Updates, Configurations and Power


USB Type‑C



Standards


SDI Video Standards


525i59.94 NTSC, 625i50 PAL


HD Video Standards


720p50, 720p59.94, 720p60


1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI
2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI


SDI Compliance


SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M


SDI Video Rates


SDI video connections are switchable between standard definition, 720p 1080i, 1080p, and DCI high definition.


SDI Color Precision


4:2:2


SDI Color Space


YUV


SDI Auto Switching


Automatically detects SD, HD and level A or B for 3G‑SDI.


HDMI Video Standards


525i29.97 NTSC, 625i25 PAL
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60


HDMI Color Precision


4:2:2. A 17 point LUT can be loaded via the software utility for calibrating or improving monitor color.


HDMI Color Space


YUV

Software


Software Control


Mac OS Xâ„¢ and Windowsâ„¢ software upgrade via USB.


Internal Software Upgrade


Via USB.

Operating Systems



Mac 10.14 Mojave,
Mac 10.15 Catalina or later.




Windows 10.

Settings Control

Via software utility.

Power Requirements


Power Consumption


1.60 Watts


Operational Voltage Range


4.4V to 5.25V DC

Environmental Specifications


Operating temperature


0° to 40° C (32° to 104° F)


Storage temperature


-20° to 60° C (-4° to 140° F)


Relative Humidity


0% to 90% non-condensing



What's Included


Micro Converter SDI to HDMI

Warranty


3 Year Limited Manufacturer's Warranty.
