Blackmagic Design Mini Converter - HDMI to SDI 6G

by Blackmagic Design MFG# BMD-CONVMBHS24K6G
$155.00

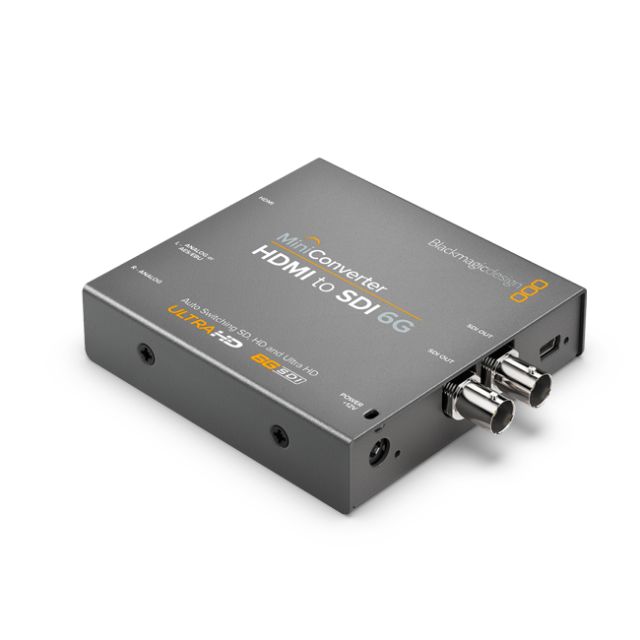

Blackmagic Mini Converter - HDMI to SDI 6G


Mini Converter HDMI to SDI 6G includes everything you need to convert from HDMI devices to SDI video in SD, HD and Ultra HD video formats. With independent audio connections you can also embed SDI audio from HDMI, AES/EBU or balanced analog audio inputs. Mini Converter HDMI to SDI is the perfect solution to convert HDMI consumer cameras or computers to broadcast quality SDI!


Connections



SDI Video Outputs


2 x SDI Video Outputs. Automatically matches the SD, HD and 6G-SDI HDMI video input.


HDMI Video Inputs


HDMI type A in


Analog Audio Inputs


2 channels of professional balanced analog audio with standard 1/4 inch jack connections.


Digital Audio Inputs


4 channels of AES/EBU digital audio.


Multi Rate Support


Auto detection of SD, HD or 6G-SDI.


Updates and Configuration


USB


Reclocking


Yes





Standards



SD Video Standards


525i59.94 NTSC, 625i50 PAL


HD Video Standards


720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60


Ultra HD Video Standards


2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30


4K Video Standards


4K DCI p24


SDI Compliance


SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M Level A or Level B, SMPTE ST-2081, ITU-R BT.656 and ITU-R BT.601.


SDI Video Rates


SDI video connections are switchable between SD, HD, Ultra HD and DCI 4K.


SDI Video Sampling


4:2:2


SDI Audio Sampling


Television standard sample rate of 48 kHz and 24 bit.


SDI Color Precision


4:2:2


SDI Color Space


YUV


SDI Auto Switching


Automatically detects SD, HD or 6G-SDI.


HDMI Video Standards


525i29.97 NTSC, 625i25 PAL
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60


HDMI Color Space


YUV and RGB


HDMI Color Precision


4:2:2 and 4:4:4


Copy Protection


HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.






Format Conversion



HD down conversion






Software



Software Control


Mac OS X™ and Windows™ software upgrade via USB.


Internal Software Upgrade


Via included updater application.






Operating Systems




macOS 10.12 Sierra,
macOS 10.13 High Sierra or later,




Windows 8.1 or Windows 10.






Settings Control



Mini Switches or USB software.






Power Requirements



Power Supply


+12V universal power supply included with international socket adapters for all countries. Cable tie point.


Power Consumption


4.44 Watts


Operational Voltage Range


12 - 31V DC






Environmental Specifications



Operating Temperature


0° to 40° C (32° to 104° F)


Storage Temperature


-20° to 45° C (-4° to 113° F)


Relative Humidity


0% to 90% non-condensing






Warranty



3 Year Limited Manufacturer's Warranty.
