Blackmagic Design MultiView 4

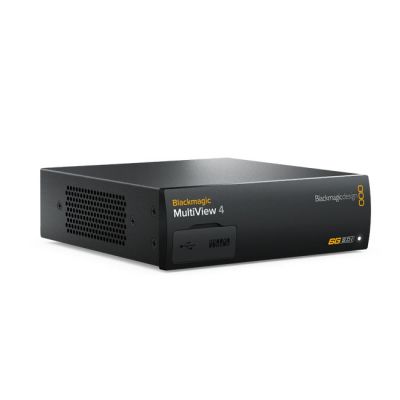

Blackmagic MultiView 4
The easiest multi view you'll everÂ use!
Blackmagic MultiView 4 has four completely independent 6G-SDI inputs that work with all SD, HD and Ultra HD formats up to 2160p30. Simply connect your sources and youâ€™ll get a standard 2x2 grid view on an HD or Ultra HD television. Using the included Ethernet remote control software, you can turn on audio meters, choose which audio to output, as well as create custom labels, and more! MultiView 4 is compatible with the Teranex Mini Rack Shelf so you can use it on your desktop or rack mount it. You can also add an optional Teranex Mini Smart Panel for front panel control! For the ultimate in broadcast reliability and redundancy, you can power MultiView 4 via the AC connection as well as power over Ethernet!
Studio or Live Use!
Multi source monitoring designed for broadcasters
Multi view monitoring is perfect for massive control rooms with lots of incoming feeds, for live multi camera production or for use on location and in tight spaces that donâ€™t have room for multiple monitors. With Blackmagic MultiViews you donâ€™t need to connect multiple monitors, dozens of cables or run extra power to see all of your video sources! Simply plug your cameras, decks, switchers and routers into the SDI connections to see everything with amazing clarity and detail on a single HD or Ultra HD monitor!
Mix any combination of SD, HD and Ultra HD sources
Each view on a Blackmagic MultiView works as a completely independent video monitor. You get full frame re-synchronization on all of the 6G-SDI inputs. That means they can be any video standard and frame rate, and each input is completely independent of the others. You can mix any combination of referenced or non-referenced NTSC, PAL, 720p, 1080i, 1080p, and Ultra HD up to 2160p30, all on the same display at the same time! It's like getting 4 or 16 independent monitors in one!High Resolution Monitoring
The worldâ€™s highest resolution multi viewer!
Blackmagic MultiView works with both HD as well as Ultra HD displays, so you get maximum compatibility with your existing HD equipment. That means you can use regular HD displays but you also have the choice to use an Ultra HD monitor for incredible sharpness! Ultra HD has four times the number of pixels of regular HD, so your video will look sharper and clearer than ever before! What this means is when displaying the 2x2 view on an Ultra HD monitor, each view is a full 1920 x 1080 HD resolution with no scaling! MultiView includes both 6G-SDI and HDMI outputs so you can connect to televisions, video projectors, broadcast monitors and more!
Advanced Monitoring Tools
Custom labels, tally, audio meters and more!
Blackmagic MultiViews feature advanced monitoring tools that can be displayed with your video. You get custom labels, audio meters, tally indicators and more! You can also choose which audio source is routed to the video output. The on screen source labels have a subtle, elegant design and resize proportionally based on the selected layout. In addition, you get anamorphic support in standard definition so you can view 16 x 9 anamorphic video sources in widescreen.
Multi Rate 6G-SDI Connections
Supports all of your SD, HD and Ultra HD equipment!
All Blackmagic MultiView models feature multi rate 6G-SDI inputs with full frame re-synchronization and separate loop through outputs, making it compatible with your existing equipment. The SDI inputs automatically detect and re-syncâ€™s SD, HD and Ultra HD formats up to 2160p30. You also get HDMI 2.0 and 6G-SDI for both HD and Ultra HD output. MultiView 16 also includes a reference input connection and blackburst/tri-level sync for studio installations.
Two great designs to fit any installation!
MultiView 4 is designed to give you compact, portable multi viewing thatâ€™s easy to setup and can be used anywhere. Simply plug in your sources, turn it on and youâ€™ll instantly see a quad split view displaying everything! MultiView 16 is designed for larger, more complex setups with lots of video sources where you need more views on the same screen. You get router style front panel controls that include dedicated source buttons, a spin knob and LCD screen for adjusting settings, turning on overlays, and quickly and easily routing any source to any view on the grid!
Create customized views with even more sources!
Blackmagic MultiView 4 handles 4 sources in an incredibly compact size, however if you have more, you can combine multiple MultiViews together to create customized displays! Simply daisy chain two together by connecting the output of one MultiView 4 to one of the inputs on another. That means you can now monitor seven sources at once, all on the same display! Thereâ€™s no limit to how you can combine units together to create your own customized display!
