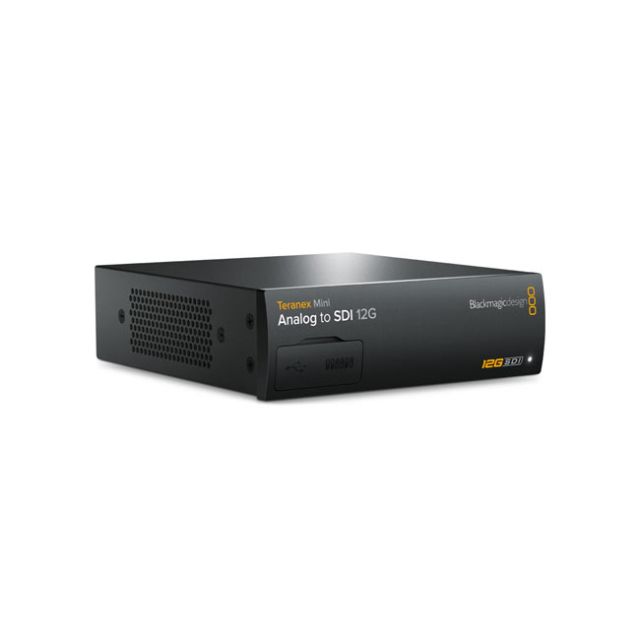

Blackmagic Design Teranex Mini - Analog to SDI 12G
Teranex Mini - Analog to SDI 12G
_x000D_ _x000D_Convert from analog video to 12G-SDI. Convert incoming analog video signals to SD, HD, 6G and 12G-SDI. Ideal for converting your analog devices such as Betacam SP, VHS, set top boxes, gaming consoles and HDV cameras to incredible quality SD/HD/Ultra HD SDI video up to 2160p60.
_x000D_ _x000D_Connections
_x000D_ _x000D_ _x000D_Analog Video Input
_x000D_Component SD/HD, NTSC, PAL and S‑Video.
_x000D_SDI Video Output
_x000D_User selectable to SD, HD and 12G-SDI.
_x000D_Analog Audio Input
_x000D_2 channels professional balanced analog audio via XLR connectors. Right XLR can be configured for timecode input.
_x000D_ _x000D_ _x000D_AES/EBU Audio Input
_x000D_4 channels professional 110Ω balanced digital audio via XLR connectors. Right XLR can be configured for timecode input.
_x000D_Multi Rate Support
_x000D_SDI output switchable between HD for composite and S-Video and Ultra HD for component HD.
_x000D_ _x000D_ _x000D_Updates and Configuration
_x000D_USB or Ethernet.
_x000D_Re-Clocking
_x000D_Yes
_x000D_ _x000D_ _x000D_Â
_x000D_
Â
_x000D_Standards
_x000D_Â
_x000D__x000D_
_x000D_
SDI Compliance
_x000D__x000D_
SMPTE 292M, SMPTE 259M,SMPTE 296M, SMPTE 424M-B,ITU-R BT.656 and ITU-R BT.601
_x000D__x000D_
SDI Video Rates
_x000D__x000D_
SDI video connections are switchable between standard definition and high definition.
_x000D__x000D_
SDI Video Sampling
_x000D__x000D_
4:2:2 and 4:4:4.
_x000D__x000D_
SDI Audio Sampling
_x000D__x000D_
Television standard sample rate of 48 kHz and 24-bit.
_x000D_ _x000D__x000D_
_x000D_
SDI Color Precision
_x000D__x000D_
YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K.
_x000D__x000D_
SDI Color Space
_x000D__x000D_
REC 601, REC 709
_x000D__x000D_
SDI Format Support
_x000D__x000D_
625/25 PAL, 525/23.98 NTSC, 525/29.97 NTSC, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p50, 3840 x 2160p59.94.
_x000D_ _x000D__x000D_
_x000D_
Analog Format Support
_x000D__x000D_
625/25 PAL, 525/23.98 NTSC,525/29.97 NTSC, 1920 x 1080i50,1920 x 1080i59.94, 1920 x 1080i60,1280 x 720p50, 1280 x 720p59.94,1280 x 720p60.
_x000D__x000D_
Analog Color Space
_x000D__x000D_
REC 601, REC 709
_x000D__x000D_
Analog Color Precision
_x000D__x000D_
4:2:2
_x000D_ _x000D_ _x000D_Â
_x000D_Software
_x000D_Â
_x000D__x000D_
_x000D_
Software Control
_x000D__x000D_
Mac OS Xâ„¢ and Windowsâ„¢ software upgrade via USB and Ethernet
_x000D_ _x000D__x000D_
_x000D_
Internal Software Upgrade
_x000D__x000D_
Via included updater application.
_x000D_ _x000D_ _x000D_Â
_x000D_Settings Control
_x000D_Â
_x000D__x000D_
_x000D_
Basic Settings Control
_x000D__x000D_
Mini Switches, USB and Ethernet via free software utility
_x000D_ _x000D__x000D_
_x000D_
Optional Front Panel Control
_x000D__x000D_
Front mounted Smart Panel with LCD, rotary knob and six settings buttons
_x000D_ _x000D_ _x000D_Â
_x000D_Power Requirements
_x000D_Â
_x000D__x000D_
_x000D_
Power Supply
_x000D__x000D_
1 x built-in international AC power supply with IEC C14 inlet. IEC Power cable required. 90 - 240V AC Input.
_x000D__x000D_
Power Over Ethernet
_x000D__x000D_
Can be powered via 48V DC using PoE (power over ethernet).
_x000D_ _x000D__x000D_
_x000D_
Power Consumption
_x000D__x000D_
15 Watts
_x000D_ _x000D__x000D_
_x000D_
Operational Voltage Range
_x000D__x000D_
90 - 240V AC
_x000D_ _x000D_ _x000D_Â
_x000D_Physical Specifications
_x000D_Â
_x000D__x000D_
_x000D_
_x000D_
Â
_x000D_Environmental Specifications
_x000D_Â
_x000D__x000D_
_x000D_
Operating Temperature:
_x000D__x000D_
0°to 40°C (32° to 104°F)
_x000D_ _x000D__x000D_
_x000D_
Storage Temperature:
_x000D__x000D_
-20°to 60°C (-4° to 140°F)
_x000D_ _x000D__x000D_
_x000D_
Relative Humidity:
_x000D__x000D_
0% to 90% non-condensing
_x000D_ _x000D_ _x000D_Â
_x000D_What's Included
_x000D_Â
_x000D__x000D_
Teranex Mini - Analog to SDI 12G
_x000D__x000D_
Software SD Card
_x000D_ _x000D_Â
_x000D_Warranty
_x000D_Â
_x000D__x000D_
3 year Limited Manufacturer’s Warranty.
