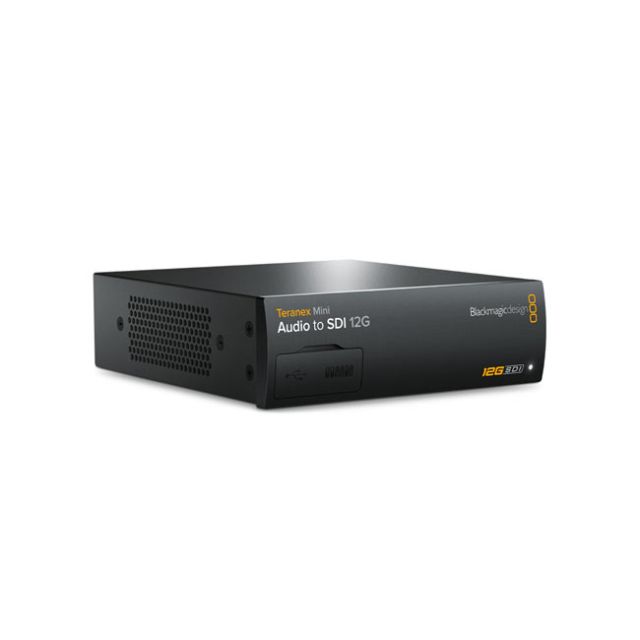

Blackmagic Design Teranex Mini - Audio to SDI 12G

SDI Video Input

1 x 12G-SDI SD/HD/2K/4K auto switching.

SDI Video Output

1 x 12G-SDI output.

Analog Audio Input

2 channels professional balanced analog audio via XLR connectors, or 2 channel unbalanced analog line level via RCA connectors. Right XLR can be configured for timecode input.

AES/EBU Audio Input

4 channels professional 110Ω balanced digital audio via XLR connectors. Right XLR can be configured for timecode input.

Optical Audio Input

S/PDIF Signal with TOSLINK Connector.

Multi Rate Support

Automatic switching between SD/HD/2K and 4K.

Updates and Configuration

USB or Ethernet.

Re-Clocking

Yes

SD Format Support

525/29.97 NTSC, 525/23.98 NTSC,625/25 PAL.

HD Format Support

1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1920 x 1080PsF23.98, 1920 x 1080PsF24, 1920 x 1080p23.98, 1920 x 1080p24, 1920 x 1080p25, 1920 x 1080p29.97, 1920 x 1080p30, 1920 x 1080p50, 1920 x 1080p59.94, 1920 x 1080p60.

2K Format Support

2048 x 1080p23.98, 2048 x 1080p24,2048 x 1080p25, 2048 x 1080PsF23.98,2048 x 1080PsF24, 2048 x 1080PsF25.

4K Format Support

3840 x 2160p23.98, 3840 x 2160p24,3840 x 2160p25, 3840 x 2160p29.97,3840 x 2160p30, 3840 x 2160p50,3840 x 2160p59.94, 3840 x 2160p60,4096 x 2160p23.98, 4096 x 2160p24,4096 x 2160p25, 4096 x 2160p29.97,4096 x 2160p30, 4096 x 2160p50,4096 x 2160p59.94, 4096 x 2160p60

SDI Compliance

SMPTE 292M, SMPTE 259M,SMPTE 296M, SMPTE 372M,SMPTE 424M-B, SMPTE 425M,ITU-R BT.656, ITU-R BT.601,SMPTE ST-2036

SDI Video Rates

SDI video connections are auto switching between standard definition SDI, high definition level B 3G-SDI, 6G-SDI and 12G-SDI.

SDI Video Sampling

4:2:2, 4:4:4

SDI Audio Sampling

Television standard sample rate of 48kHz and 24-bit.

SDI Color Space

REC 601, REC 709

SDI Auto Switching

Automatically selects between SD, HD, 3G, 6G and 12G-SDI.

SDI Color Precision

YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K.

SDI Color Space

REC 601, REC 709

Software Control

Mac OS Xâ„¢ and Windowsâ„¢ software upgrade via USB and Ethernet.

Internal Software Upgrade

Via included updater application.

Basic Settings Control

Mini Switches, USB and Ethernet via free software utility

Optional Front Panel Control

Front mounted Smart Panel with LCD, rotary knob and six settings buttons

Power Supply

1 x built-in international AC power supply with IEC C14 inlet. IEC Power cable required. 90 - 240V AC Input.

Power Over Ethernet

Can be powered via 48V DC using PoE (power over ethernet).

Power Consumption

15 Watts

Operational Voltage Range

90 - 240V AC

Operating Temperature

0°to 40°C (32° to 104°F)

Storage Temperature

-20°to 60°C (-4° to 140°F)

Relative Humidity

0% to 90% non-condensing
